1971 Yamaha SL292 Tachometer Unit SL292C Diagram

← All diagrams

Find the part on the Tachometer Unit SL292C diagram for your 1971 Yamaha SL292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

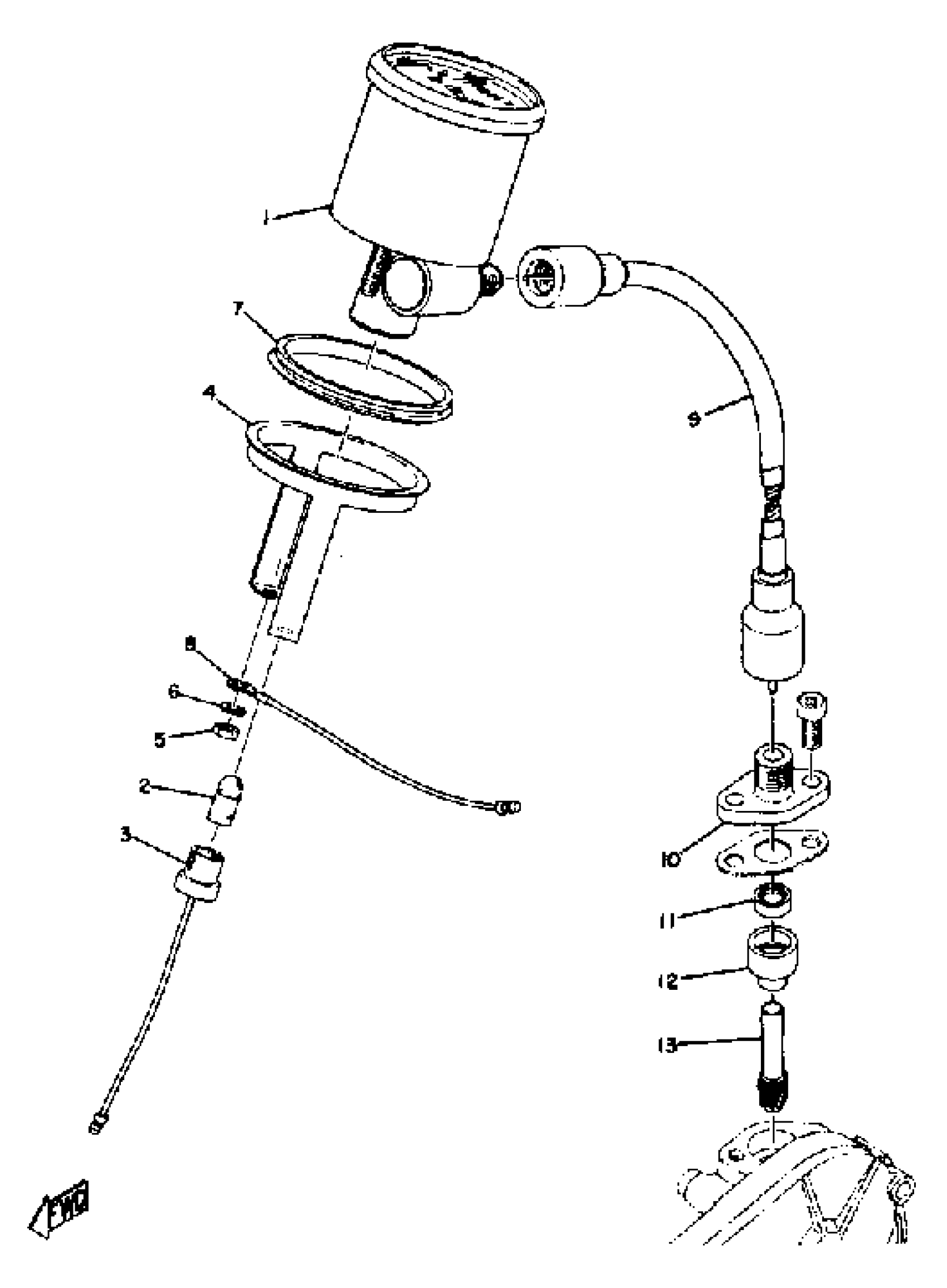

1971 Yamaha SL292 Tachometer Unit SL292C Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TACHOMETER ASSEMBLY

(839-83540-00-00)

1
Out of stock

2

BULB

256-84347-00-00

1
Out of stock

3

SOCKET, METER

(839-83536-40-00)

1
Out of stock

4

PLATE, FITTING

(839-83514-40-00)

1
Out of stock

5

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

6

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

7

UNAVAILABLE IN PRICE BOOK (839-83513-00)

94805-80850-0

1
Out of stock

8

CASE, SPDMTR UPPER

(842-83571-00-00)

1
Out of stock

9

TACHOMETER CABLE

839-83560-00-00

1
Out of stock

10

CAP, HOUSING

821-17819-00-00

1
Out of stock

11

OIL SEAL (6X12X4-821)

93104-06033-00

1

$6.49

In stock

12

BUSH, DRIVEN GEAR OUTER

821-17843-00-00

1
Out of stock

13

GEAR, DRIVEN (10T)

813-17841-00-00

1
Out of stock
