1971 Yamaha SL292 Electrical SL292C Diagram

← All diagrams

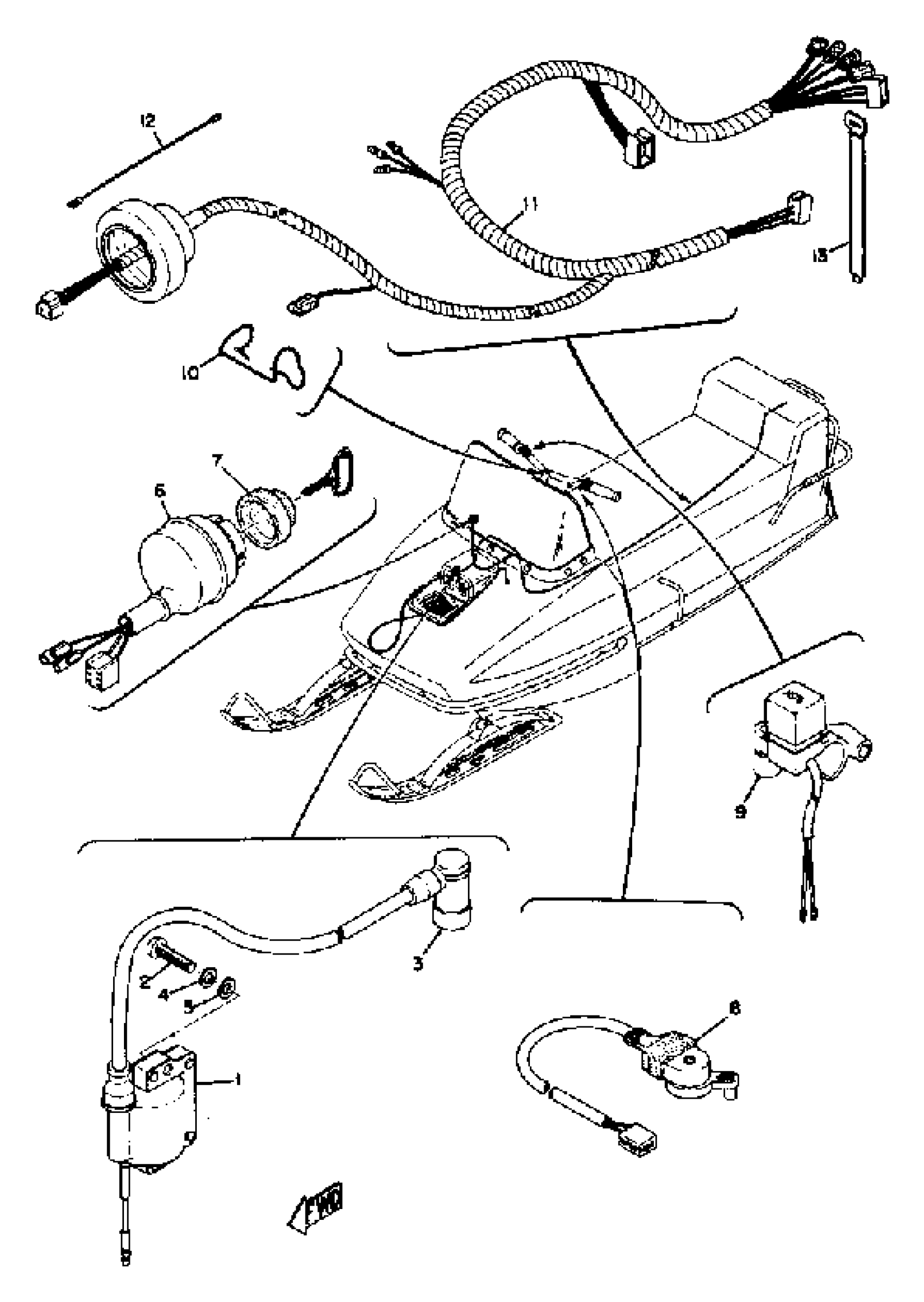

Find the part on the Electrical SL292C diagram for your 1971 Yamaha SL292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Yamaha SL292 Electrical SL292C Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSEMBLY

(839-82310-40-00)

1
Out of stock

2

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

3

PLUG CAP ASSY

663-82370-01-00

1

$13.45

In stock

4

WASHER, SPRING

92907-06100-00

1
Out of stock

5

WASHER(6TA)

92907-06200-00

1

$6.18

In stock

6

MAIN SWITCH ASSEMBLY

(838-82508-20-00)

1
Out of stock

7

COLLAR, MAIN SWITCH

806-82516-00-00

1
Out of stock

8

STOP SWITCH ASSEMBLY

822-82530-00-00

1
Out of stock

9

SWITCH, HANDLE 1

883-83976-00-00

1
Out of stock

10

CLAMP

(841-82594-00-00)

1
Out of stock

11

WIRE HARNESS ASSEMBLY

839-82590-21-00

1
Out of stock

12

WIRE, EARTH LEAD

(838-82519-00-00)

1
Out of stock

13

BAND, SWITCH CORD

437-83936-11-00

1

$3.20

In stock
