1971 Yamaha SL292 Electric Starter Unit SL292C Diagram

← All diagrams

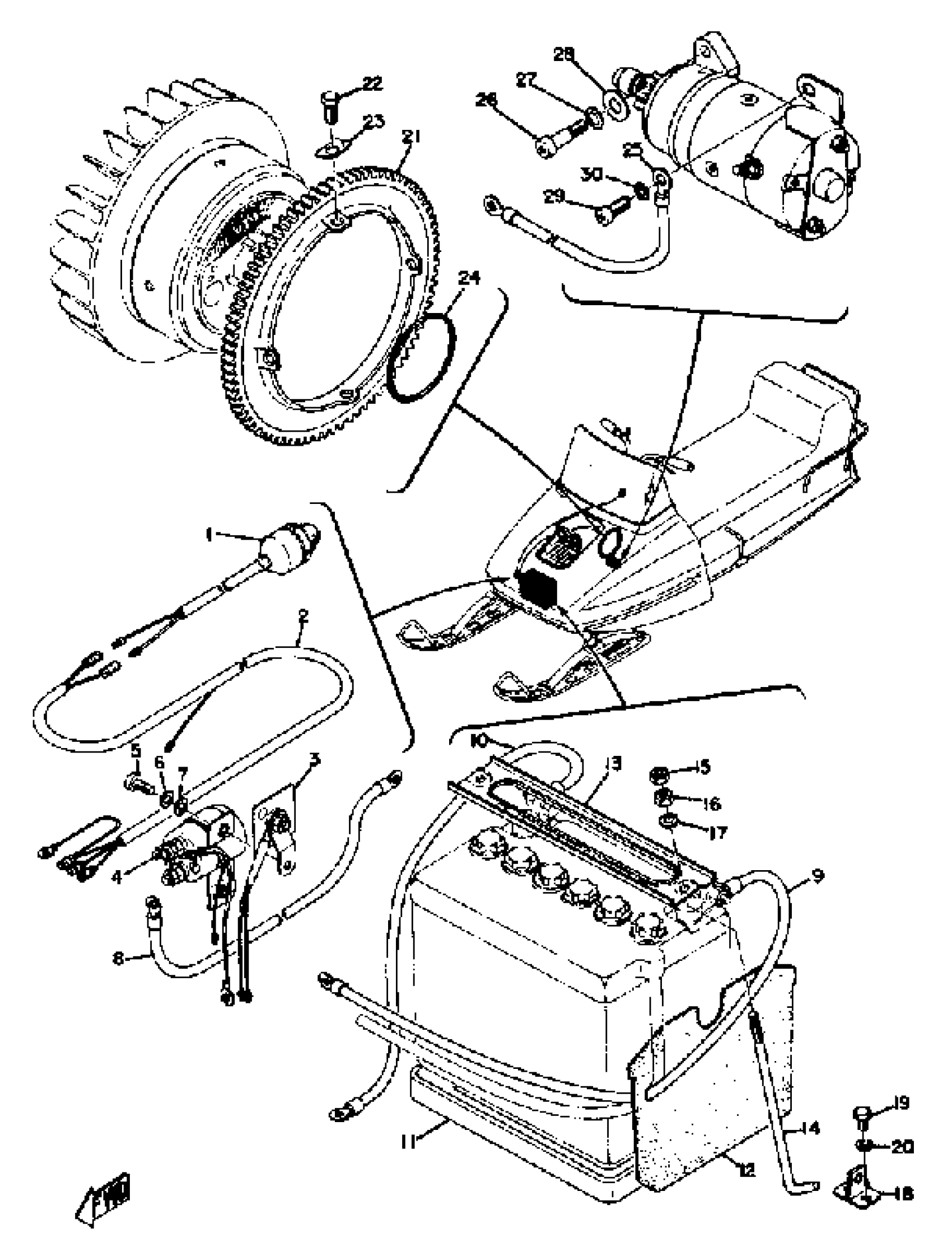

Find the part on the Electric Starter Unit SL292C diagram for your 1971 Yamaha SL292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Yamaha SL292 Electric Starter Unit SL292C Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER SWITCH ASSEMBLY

(811-83970-00-00)

1
Out of stock

2

WIRE, LEAD 2

(842-82127-00-00)

1
Out of stock

3

RECTIFIER ASSEMBLY

(812-81970-41-00)

1
Out of stock

4

STARTER SWITCH ASSEMBLY

(842-81940-20-00)

1
Out of stock

5

SCREW, PAN

98507-06014-00

1

$6.18

In stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

8

TOOL

UNA-VAILA-BL-EI

1
Out of stock

9

WIRE, PLUS LEAD

(822-82115-00-00)

1
Out of stock

10

WIRE, MINUS LEAD

822-82116-00-00

1
Out of stock

11

SEAT, BATTERY

807-82122-00-00

1
Out of stock

12

SEAL, BATTERY

822-82118-00-00

1
Out of stock

13

PLATE, BATT FITTING

(822-82136-00-00)

1
Out of stock

14

SCREW, SPEC''L SHAPE

(90149-06024-00)

1
Out of stock

15

NUT(650)

95380-06700-00

1

$6.17

In stock

16

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

BRACKET, BATTERY

(843-82128-00-00)

1
Out of stock

19

BOLT, HEXAGON

97013-05010-00

—

$0.85

In stock

20

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

21

GEAR, RING

(839-81891-00-00)

1
Out of stock

22

BOLT, DOME HEAD

(90106-08004-00)

1
Out of stock

23

WASHER, LOCK

(90215-08071-00)

1
Out of stock

24

O-RING

(93210-61117-00)

1
Out of stock

25

WIRE, LEAD

(811-82117-00-00)

1
Out of stock

26

SCREW, SPEC''L SHAPE

90149-08056-00

1
Out of stock

27

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

28

WASHER, PLATE

(90201-09116-00)

1
Out of stock

29

SCREW PAN HEAD

98580-08020-00

—

$3.14

In stock

30

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock
