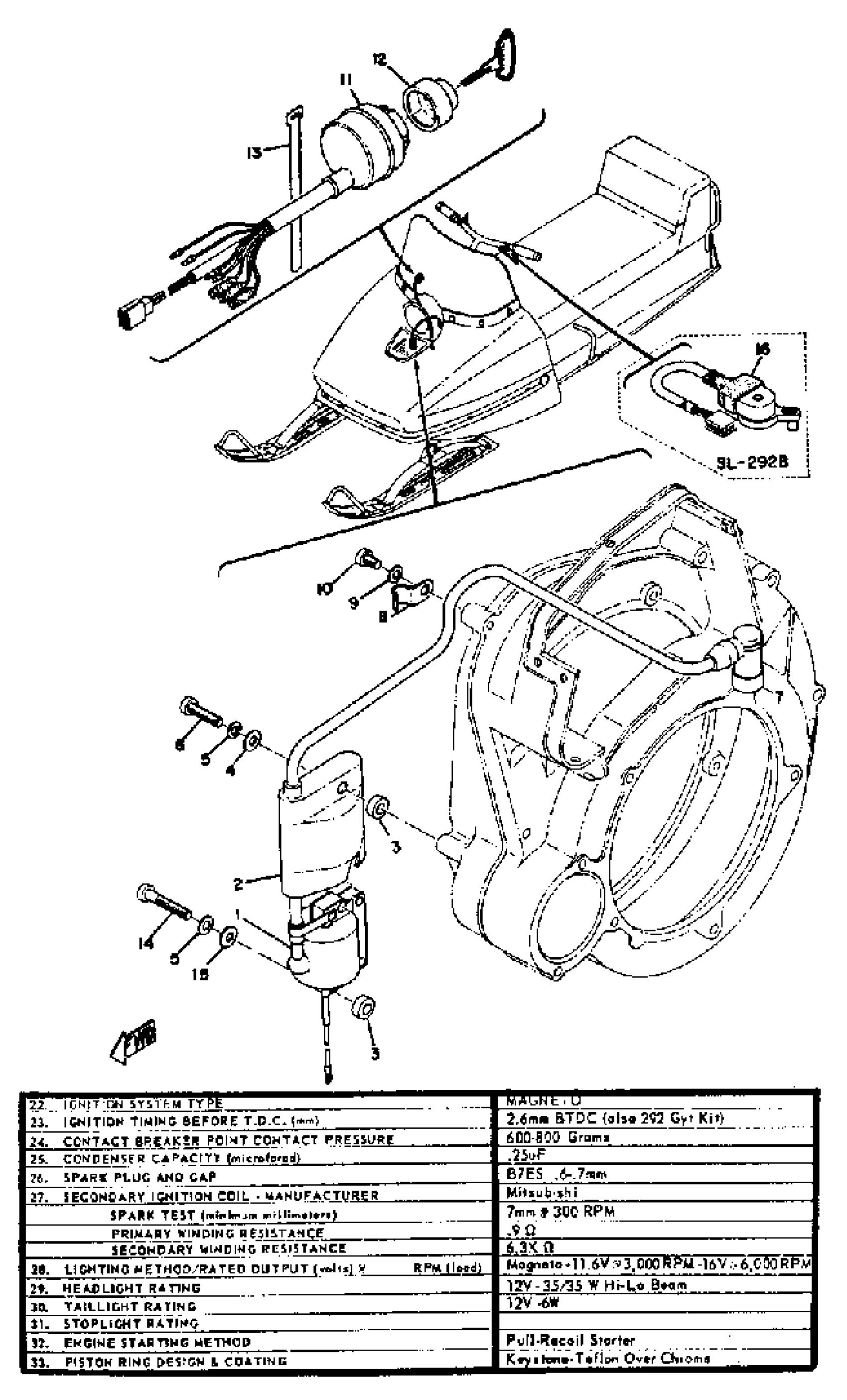

Find the part on the Electrical SL292 - B diagram for your 1971 Yamaha SL292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Yamaha SL292 Electrical SL292 - B Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSEMBLY

(812-82310-40-00)

1
Out of stock

2

COVER, IGNITN COIL

(812-82314-00-00)

1
Out of stock

3

COLLAR 002

(90387-06025-00)

1
Out of stock

4

WASHER, SPECIAL

(822-82327-00-00)

1
Out of stock

4

WASHER, SPEC''L SHAP (812-82327-00) 001

90209-06064-00

1
Out of stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

6

SCREW, PAN

98517-06030-00

1
Out of stock

7

PLUG CAP ASSY

56J-82370-00-00

1

$56.63

In stock

7

PLUG CAP ASSY

56J-82370-00-00

1

$56.63

In stock

8

CLAMP, CORD

(822-82361-00-00)

1
Out of stock

8

CLAMP

90462-10007-00

1
Out of stock

9

WASHER, SPRING

92907-06100-00

1
Out of stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

SCREW, PAN

98507-06010-00

1
Out of stock

10

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

11

MAIN SWITCH ASSEMBLY 001

812-82508-20-00

1
Out of stock

11

MAIN SWITCH ASSEMBLY

(822-82508-20-00)

1
Out of stock

12

COLLAR, MAIN SWITCH

806-82516-00-00

1
Out of stock

13

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock

14

SCREW, PAN

98507-06035-00

—

$6.18

In stock

15

WASHER(6TA)

92907-06200-00

—

$6.18

In stock

16

STOP SWITCH ASSEMBLY

822-82530-00-00

1
Out of stock
