1971 Yamaha SL292 Starter SL292 - B Diagram

← All diagrams

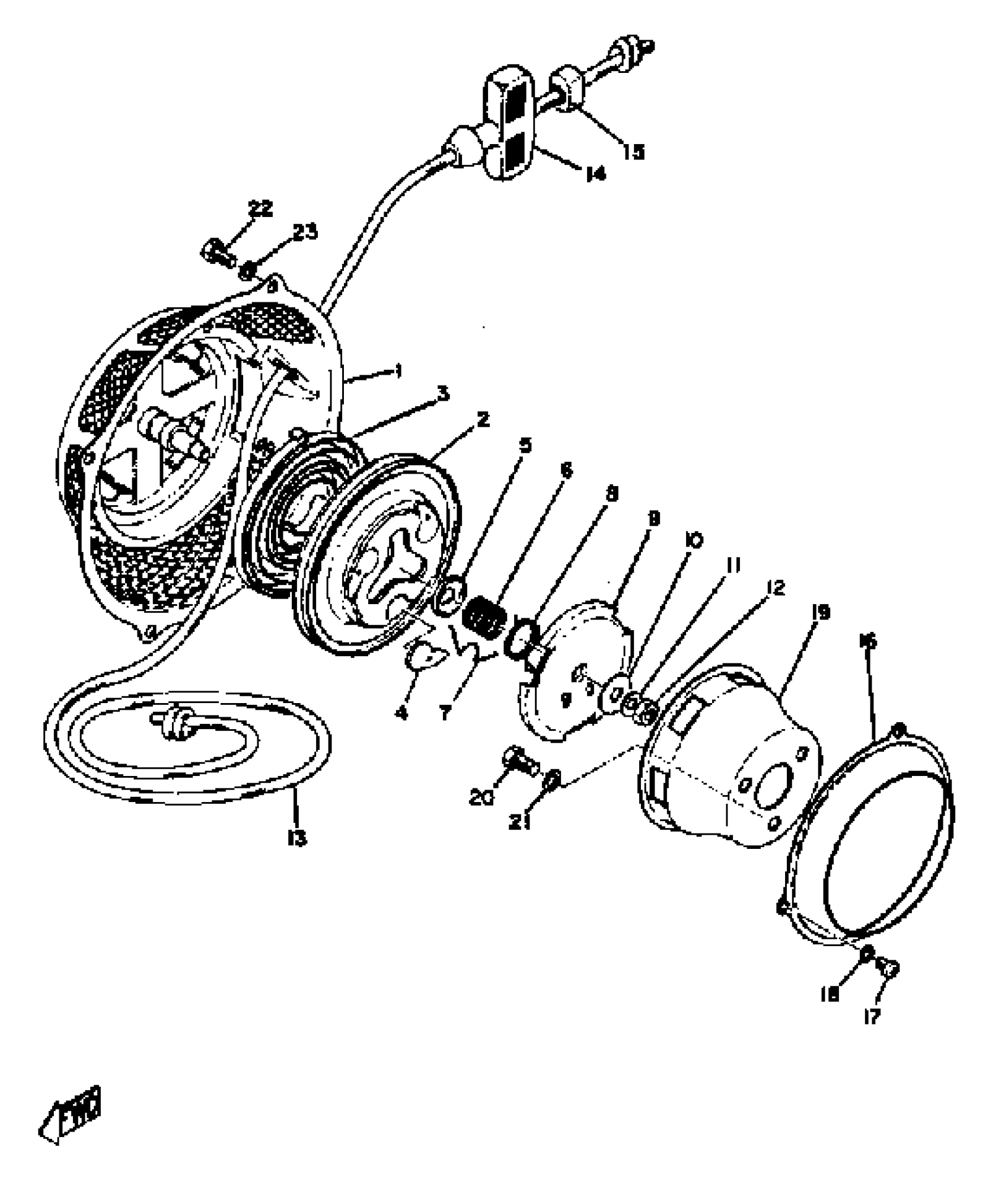

Find the part on the Starter SL292 - B diagram for your 1971 Yamaha SL292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Yamaha SL292 Starter SL292 - B Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FLYWHL MAGNETO ASSEMBLY 001

(812-81300-20-00)

1
Out of stock

1

COIL, SOURCE

(812-81312-20-00)

1
Out of stock

1

TOOL

UNA-VAILA-BL-EI

1
Out of stock

2

COIL, LIGHTING 1

(812-81313-20-00)

1
Out of stock

3

. SCREW, PAN HEAD

802-81345-20-00

1
Out of stock

4

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

5

. CONTACT BRKR ASSEMBLY

806-81321-20-00

1

$27.71

In stock

6

SCREW, PAN HEAD

110-81346-21-00

1

$4.32

In stock

7

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

8

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

9

. CONDENSER 1

802-81325-90-00

1
Out of stock

10

SCREW, PAN HEAD

110-81346-21-00

1

$4.32

In stock

11

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

12

. LUBRICATOR

116-81331-20-00

1
Out of stock

13

SCREW, PAN HEAD

110-81346-21-00

1

$4.32

In stock

14

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

15

LEAD WIRE ASSEMBLY 001

(812-81315-20-00)

1
Out of stock

15

LEAD WIRE ASSEMBLY

(822-81315-20-00)

1
Out of stock

16

CLAMP, LEAD

104-81328-20-00

—

$6.31

In stock

17

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

18

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

19

PLATE, TIMING

(812-81332-20-00)

1
Out of stock

20

ROTOR ASSEMBLY

(812-81350-20-00)

1
Out of stock

21

SCREW, PAN

98507-06014-00

—

$6.18

In stock

22

FAN

(812-12611-00-00)

1
Out of stock

23

BOLT

(90101-06006-00)

1
Out of stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

25

WASHER, PLATE

90201-06M08-00

1
Out of stock

26

COVER, HOLE

(812-81362-00-00)

1
Out of stock

27

NUT

90170-16425-00

—
Out of stock

28

WASHER(JN5)

92907-16100-00

—

$12.08

In stock

29

SPRING, GOVERNOR

(812-81373-20-00)

1
Out of stock

29

WASHER, PLATE (32N)

90201-163G6-00

—

$6.98

In stock
← Speedometer SL292C Starter SL292C →
