1983 Kawasaki Shaft Gear Change Drum & Forks Diagram

← All diagrams

Find the part on the Gear Change Drum & Forks diagram for your 1983 Kawasaki Shaft, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

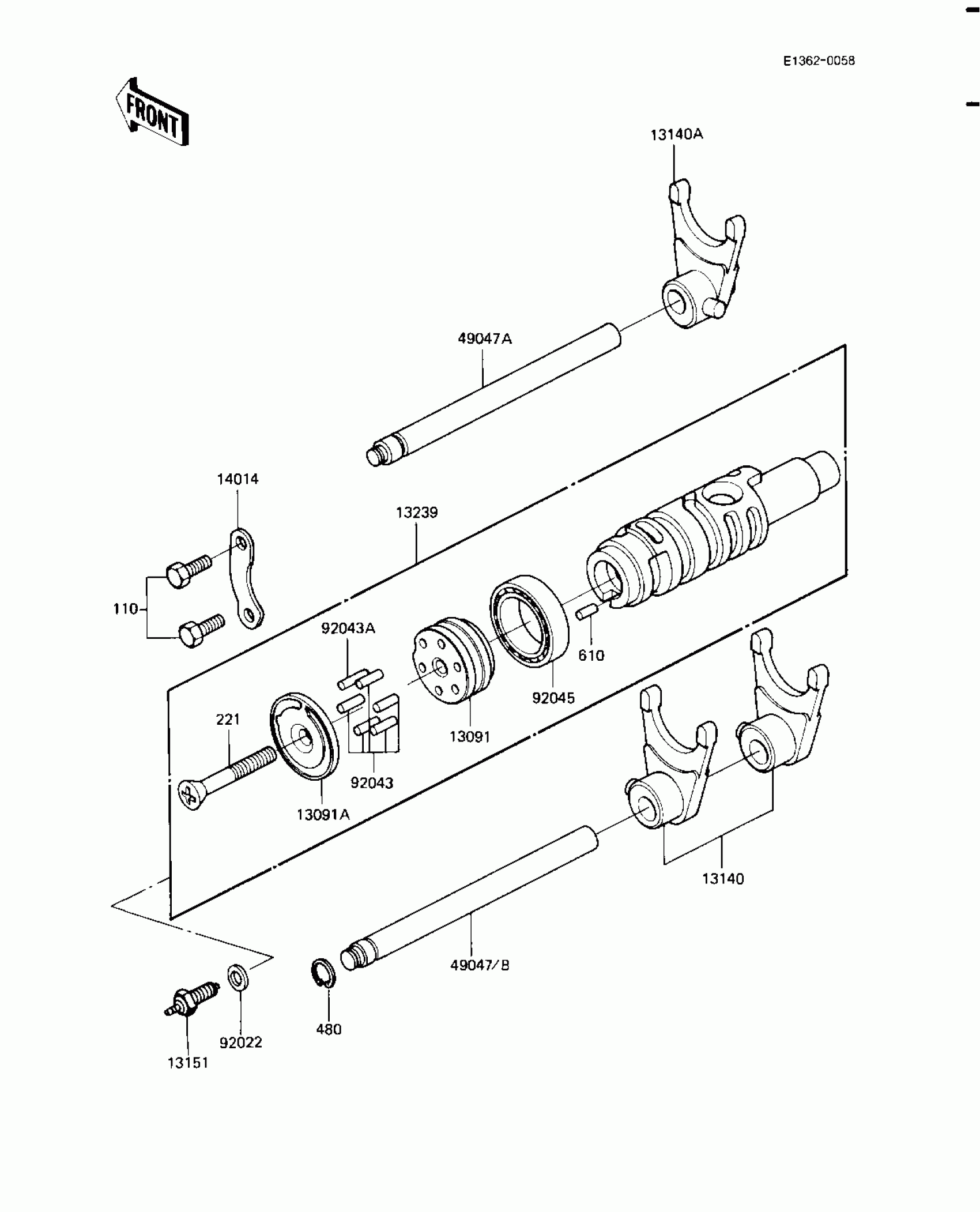

1983 Kawasaki Shaft Gear Change Drum & Forks Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER,CHANGE DRM PIN

13091-1103

1
Out of stock

13091A

1

$24.63

In stock

13140

FORK-SHIFT

13140-1045

1
Out of stock

13140A

FORK-SHIFT

13140-1046

1
Out of stock

13151

SWITCH-COMP,NEUTRAL

13151-1007

1
Out of stock

13239

DRUM-ASSY-CHANGE

13239-1108

1
Out of stock

14014

PLATE-POSITION

14014-1015

1

$7.69

In stock

49047A

ROD-SHIFT

49047-1014

1
Out of stock

49047B

ROD-SHIFT

49047-1019

1
Out of stock

92022

UNAVAILABLE IN PRICE BOOK

49022-1208

1
Out of stock

92043

PIN,DOWEL,4X15.8

92042-014

1
Out of stock

92043A

PIN,DOWEL,4X17.8

92042-020

1
Out of stock

92045

BEARING-BALL,6806

92045-1035

1
Out of stock

110

BOLT-UPSET,6X16

112G0616

1
Out of stock

221

SCREW-CSK-CROS,6X45

221B0645

1
Out of stock

480

CIRCLIP-TYPE-C,12MM

480J1200

1
Out of stock

610

ROLLER,4X10

610A0410

1
Out of stock
