1980 Kawasaki Shaft Gear Change Mechanism Diagram

← All diagrams

Find the part on the Gear Change Mechanism diagram for your 1980 Kawasaki Shaft, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

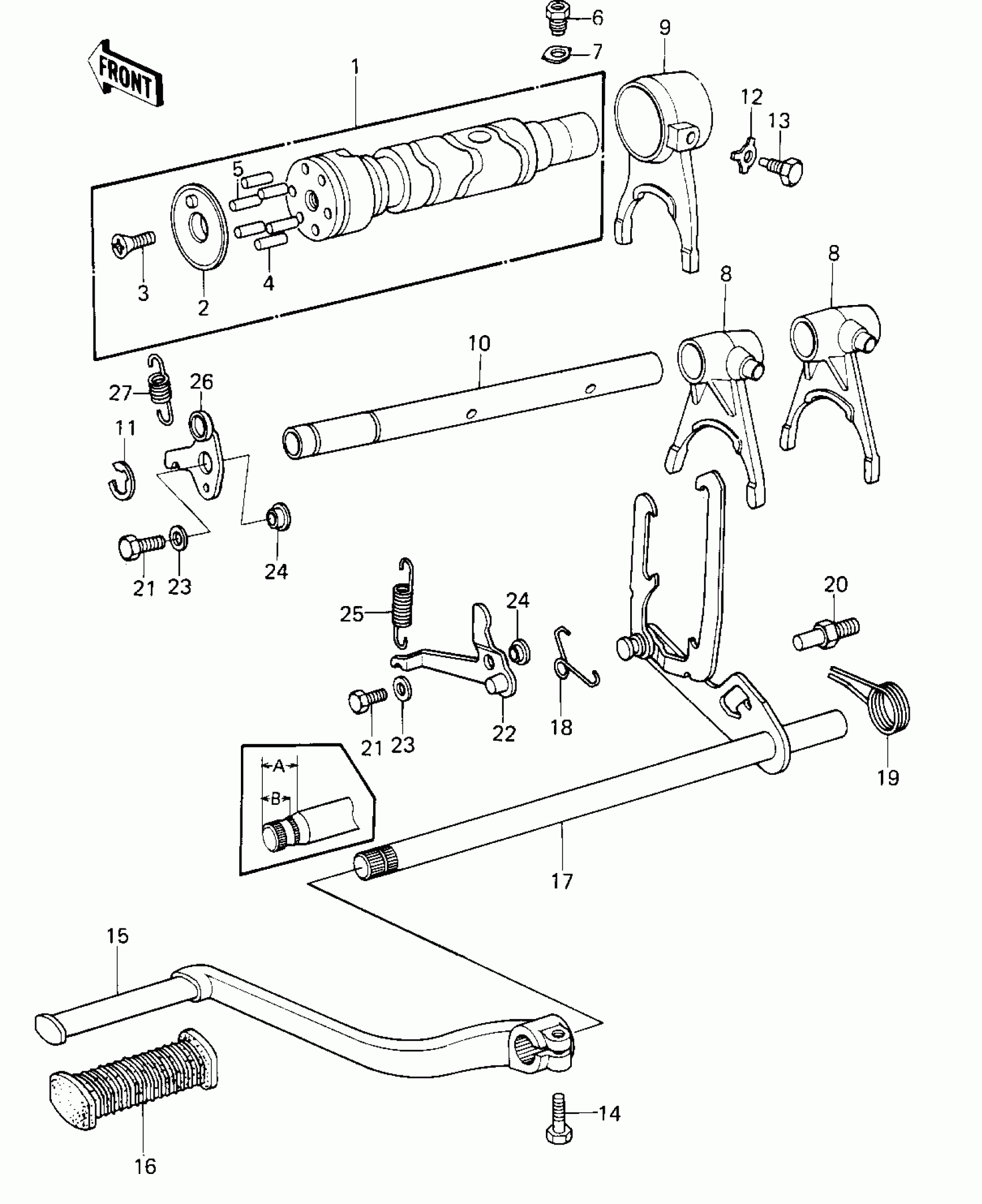

1980 Kawasaki Shaft Gear Change Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DRUM ASSY,GEAR CHANGE

13239-1022

1
Out of stock

2

HOLDER,CHANGE DRUM PIN

13091-1088

1
Out of stock

3

SCREW-CSK-CROS,6X20

221B0620

1
Out of stock

4

PIN,DOWEL,4X15.8

92042-014

1
Out of stock

5

PIN,DOWEL,4X17.8

92042-020

1
Out of stock

6

BOLT,CHG DRUM POSITN

92001-1052

1
Out of stock

7

WASHER,LOCK

92024-047

1
Out of stock

8

FORK,SELECTOR,4TH&TOP

13140-045

1
Out of stock

9

FORK,SELECTOR,3RD

13140-046

1
Out of stock

10

ROD,SHIFT

13209-011

1
Out of stock

11

CIRCLIP-TYPE-C,12MM

480J1200

1
Out of stock

12

WASHER LOCK 10MM

92031-001

1
Out of stock

13

PIN SELECT FORK GUIDE

92043-016

1
Out of stock

14

BOLT-UPSET

112G0625

1
Out of stock

15

PEDAL ASSY,GEAR CHNG

13156-1023

1
Out of stock

15

PEDAL,CHANGE

13156-1038

1
Out of stock

16

DAMPER,CHANGE PEDAL

92075-1175

1
Out of stock

17-19

LEVER ASSY,GEAR CHANG

13161-1019

1
Out of stock

17-19

LEVER ASSY,GEAR CHANG

13161-1019

1
Out of stock

18

SPRING

92083-018

1
Out of stock

19

SPRING,CHG PEDL RTRN

92083-028

1
Out of stock

20

BOLT,RETURN SPRING

92001-1401

1
Out of stock

21

BOLT-UPSET

112G0618

1
Out of stock

22

LEVER,GEAR POSITIOING

13168-1039

1
Out of stock

23

WASHER,6.5X16X2

92022-1565

1
Out of stock

24

BUSHING,GEAR POSITION

92028-1058

1
Out of stock

25

SPRING,GEAR POSITION

92081-1148

1
Out of stock

26

LEVER,NEUTRAL POSITON

13236-1011

1
Out of stock

27

SPRING RATCHET PA

92081-003

1
Out of stock
