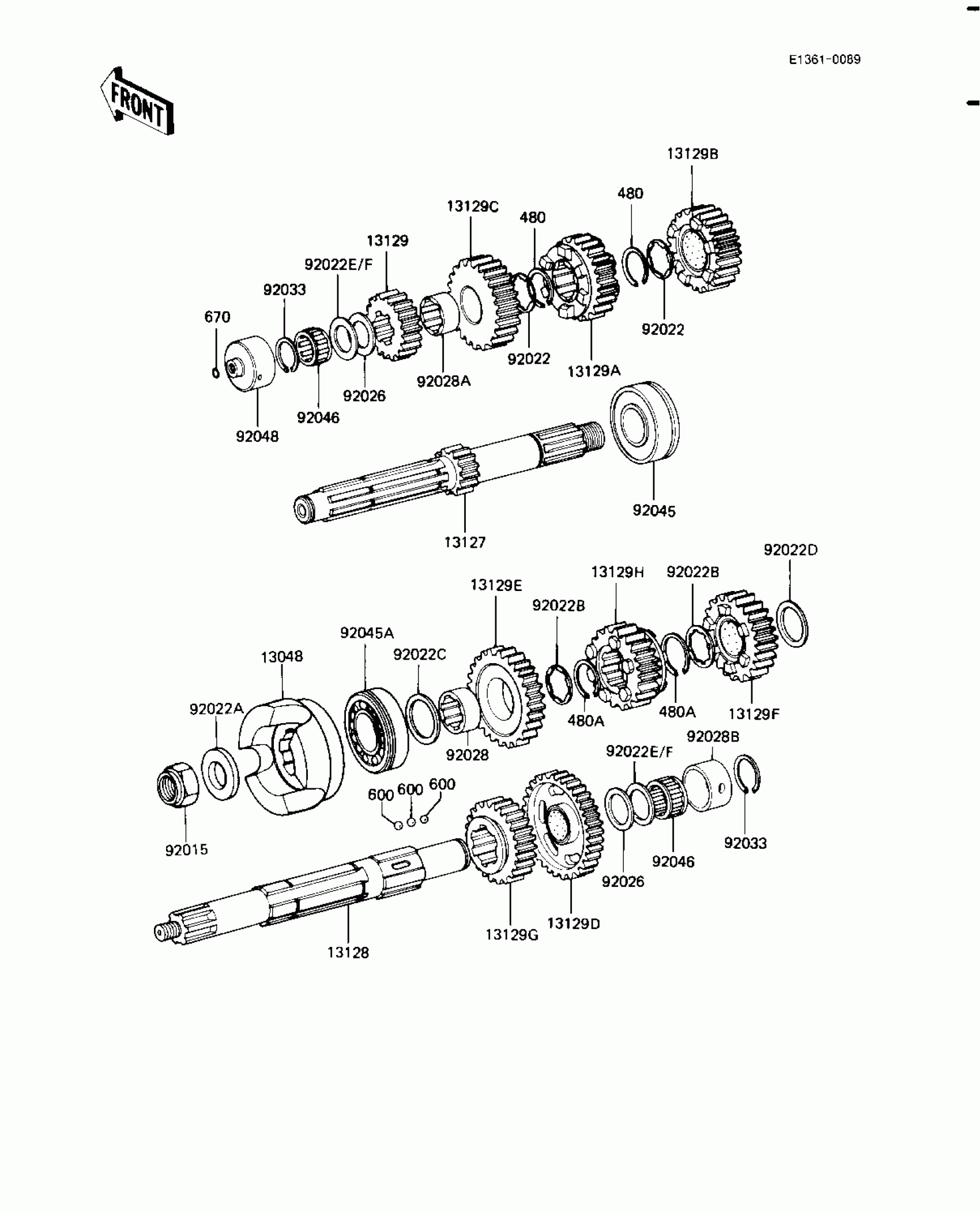

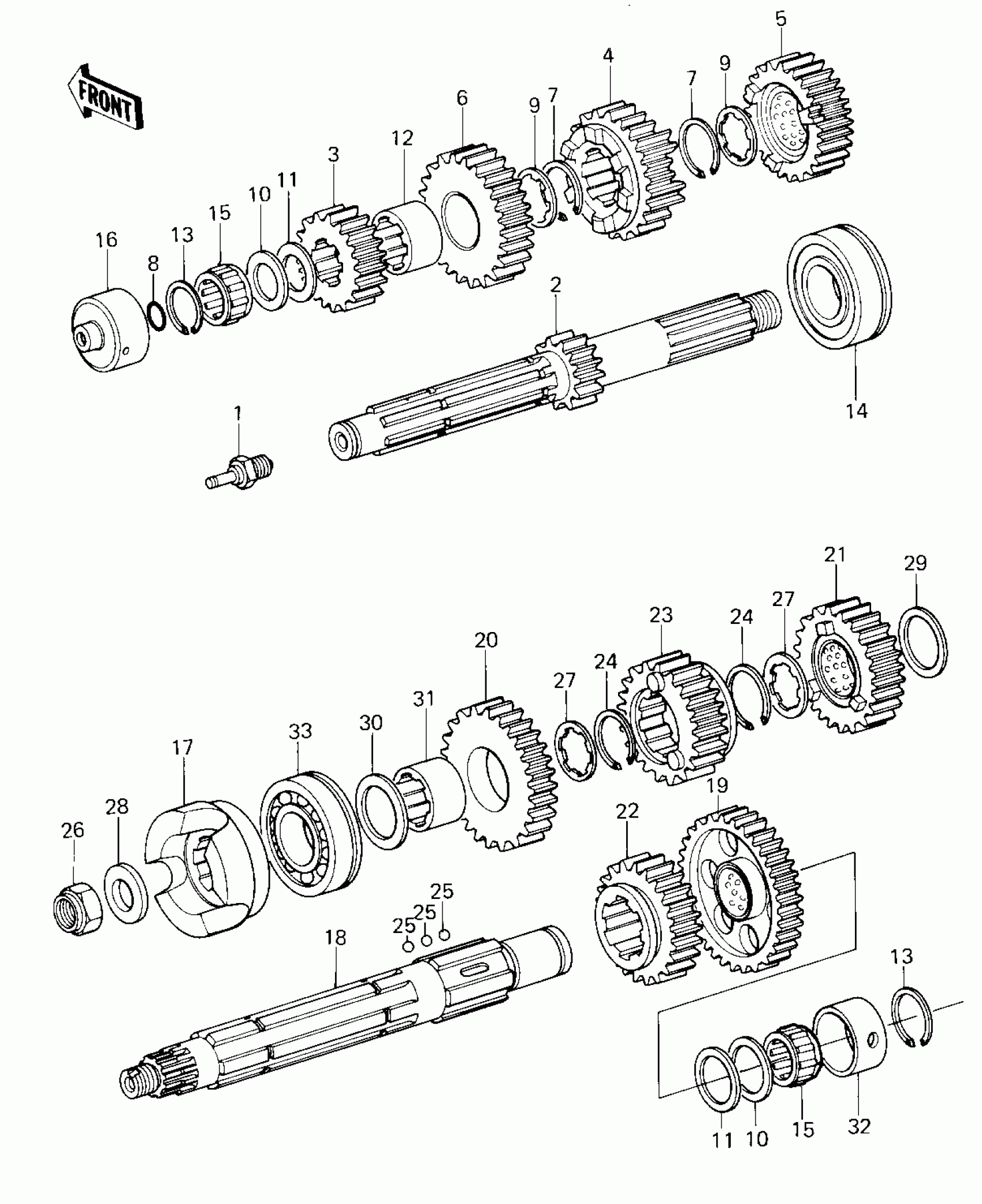

Kawasaki Shaft TRANSMISSION Diagram

#

Description
Price

1

SWITCH,NEUTRAL

13151-5002

Unavailable

2

SHAFT,DRIVE

13127-1012

Unavailable

3

2ND GER,DRIVE SHAFT

13130-032

Unavailable

4

3RD GEAR,DRIVE SHAFT

13132-030

Unavailable

5

4TH GEAR,DRIVE SHAFT

13134-016

Unavailable

6

TOP GEAR,DRIVE SHAFT

13136-042

Unavailable

7

CIRCLIP-TYPE-C,28MM

480J2800

$3.58

8

O RING,8MM

670B1508

$1.00

9

WASHER,TOOTHED,26X35.5X1.5

92022-1077

$10.63

10

WASHER,22.3X35X1.6

92022-212

$9.58

10

WASHER,22.3X35X1.2

92022-213

$10.00

11

SPACER,22X35.5X1.0

92026-1020

$4.61

12

BUSHING,TOP GEAR

92028-1124

$46.36

13

RING-SNAP,20X25.5X1.2

92033-025

$3.78

14

BEARING-BALL,5305NSH2

92045-1028

$135.50

15

BEARING-NEEDLE,FWF-223014

92046-031

$15.89

16

RACE,DRIVE SHAFT BEARING

92048-1012

$51.50

17

DAMPER,OUTPUT SHAFT

13048-1004

Unavailable

18

SHAFT,OUTPUT

13128-1019

Unavailable

19

LOW GER,OUTPUT SHAFT

13129-046

Unavailable

20

2ND GEAR,OUTPUT SHAF

13131-038

Unavailable

21

3RD GEAR,OUTPUT SHAF

13133-031

Unavailable

22

4TH GEAR,OUTPUT SHAF

13135-020

Unavailable

23

TOP GEAR,OUTPUT SHAF

13129-1214

Unavailable

24

CIRCLIP-TYPE-C,30MM

480J3000

$4.67

25

BALL-STEEL,3/16

600A0600

$1.02

26

NUT,LOCK,14MM

92015-1067

$9.56

27

WASHER,LOCK(O.D=40)

92022-1078

$3.75

28

WASHER,14.1X31X5

92022-1115

$11.41

29

WASHER,PLAIN,30MM

92022-209

Unavailable

30

WASHER,PLAIN,25MM

92022-210

Unavailable

31

BUSHING,2ND GEAR

92028-1005

Unavailable

32

BUSHING,OUTPUT SHAFT

92028-123

$55.78

33

BALL BEARING 6305N

92045-020

Unavailable
