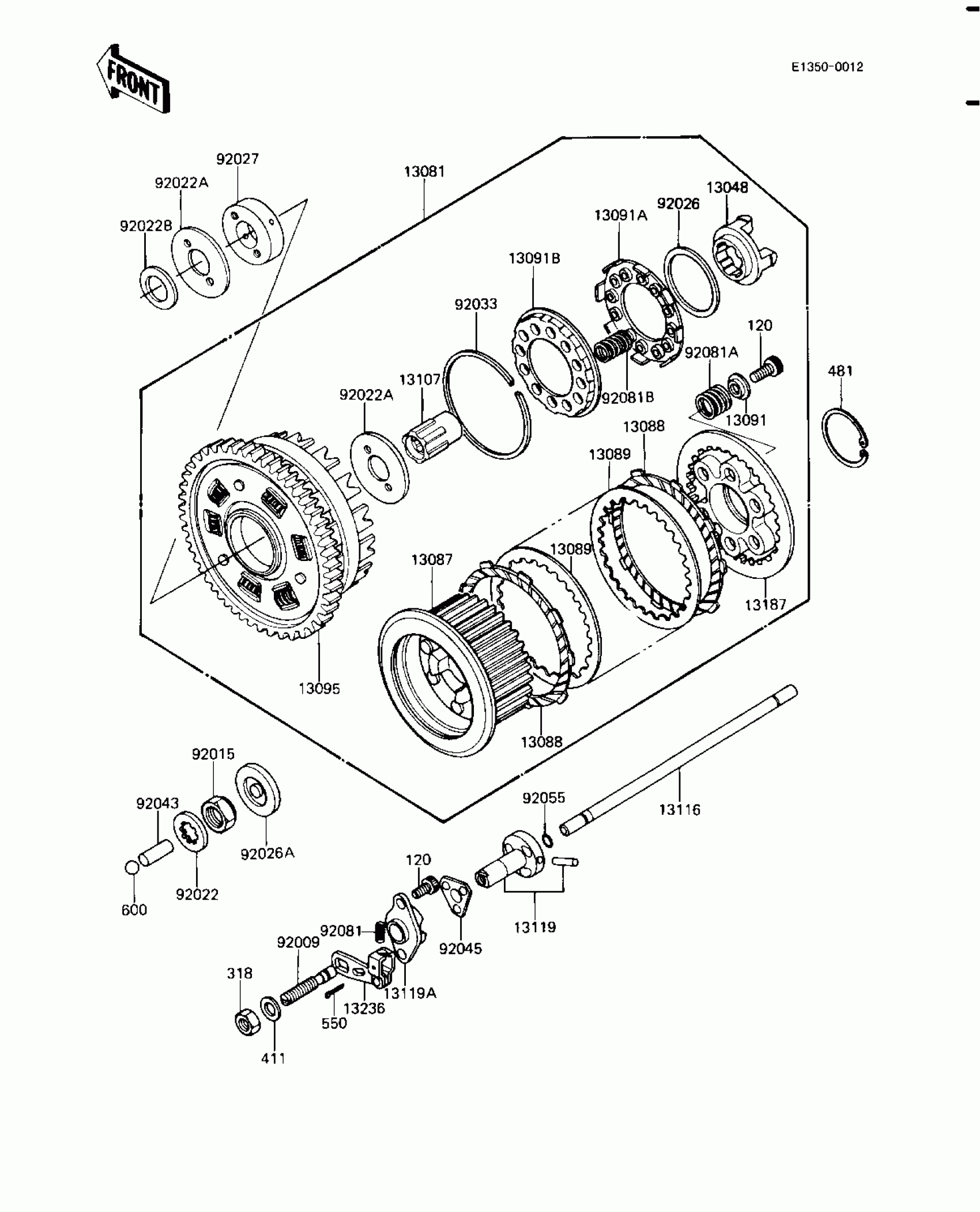

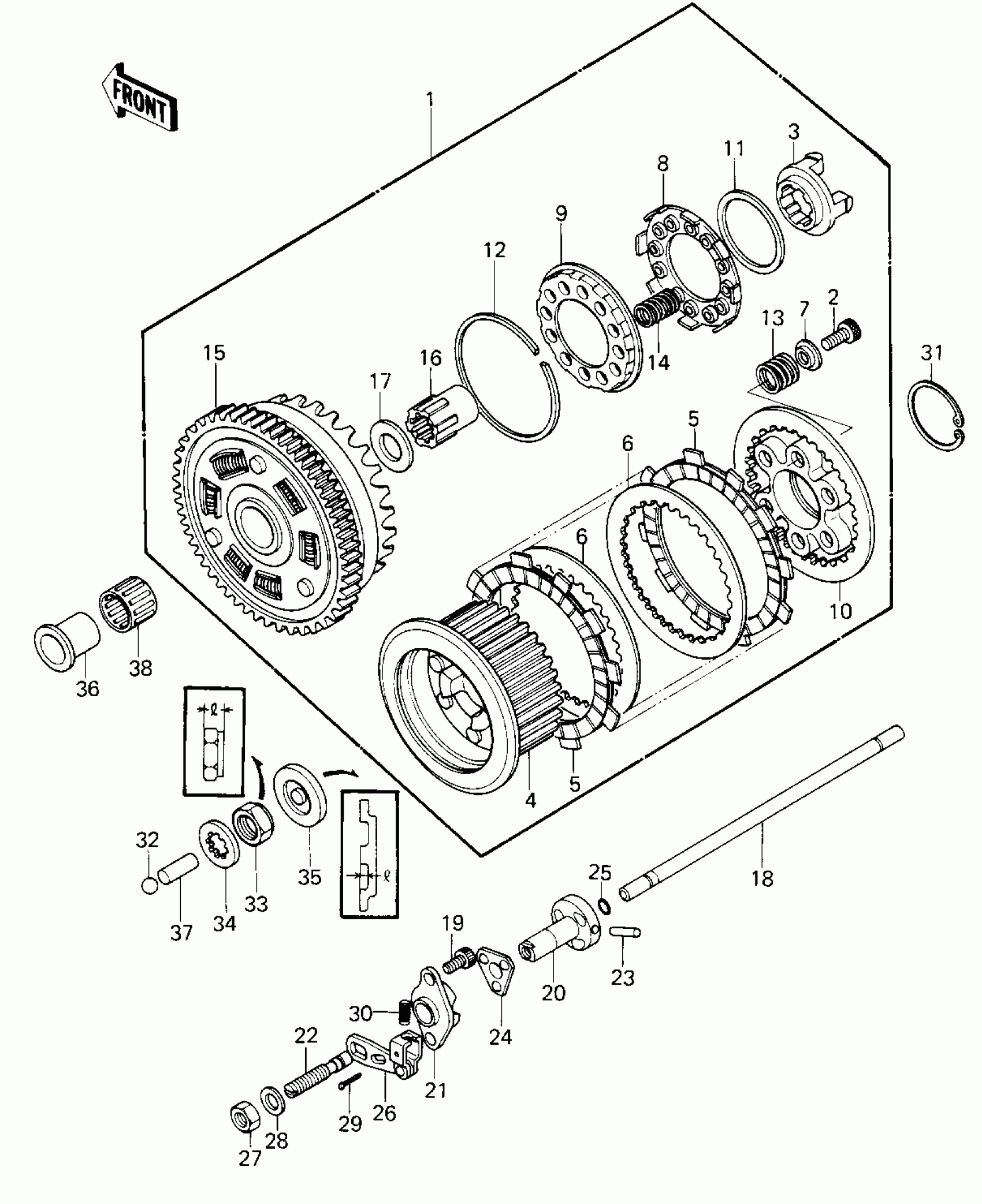

Kawasaki Shaft CLUTCH Diagram

#

Description
Price

1

CLUTCH-ASSY

13081-1021

Unavailable

2

BOLT-SOCKET,6X16

120S0616

Unavailable

3

CAM-DAMPER

13048-1007

$93.42

4

HUB,CLUTCH

13087-1009

Unavailable

5

PLATE-FRICTION

13088-040

$9.55

6

PLATE-CLUTCH,T=2.3

13089-1004

$9.99

7

HOLDER,CLUTCH SPRING

13091-1041

$9.30

8

HOLDER,DAMPER SPRING,RH

13091-1042

$24.24

9

HOLDER,DAMPER SPRING,LH

13091-1043

$24.24

10

PLATE,CLUTCH OPERATNG

13187-1004

Unavailable

11

SPACER,59X70X3.5

92026-1043

$30.12

12

RING-SNAP

92033-1029

$14.88

13

SPRING,CLUTCH

92081-1114

$5.77

14

SPRING,CLUTCH DAMPER

92081-1115

$7.44

15

HOUSING,CLUTCH

13095-1014

Unavailable

16

SHAFT,CLUTCH

13107-1013

Unavailable

17

SPACER,25.5X47X2.5

92026-022

$9.58

18

ROD,CLUTCH PUSH

13116-1007

Unavailable

19

BOLT-SOCKET,6X16

120S0616

Unavailable

20

CAM-RELEASE,CLUTCH,INNER

13119-1007

Unavailable

21

CAM-RELEASE,CLUTCH,OUTER

13119-1008

Unavailable

22

SCREW,8MM

92009-1052

Unavailable

23

PIN,DOWEL,4X13.8

92042-030

$2.99

24

BEARING-BALL,CLUTCH RELEASE

92045-1023

$9.75

25

O RING,5MM

670B1505

$2.49

26

LEVER ASSY,CLUTCH REL

13236-1012

Unavailable

27

NUT-HEX-SMALL,8MM

318B0800

$0.54

28

WASHER PLAIN 8MM

411B0800

Unavailable

29

PIN-COTTER,1.6X15

550D1615

$1.80

30

UNAVAILABLE IN PRICE BOOK

92081069

Unavailable

31

CIRCLIP,50M/M

481J5000

$5.36

32

BALL-STEEL,3/8"

600A1200

$1.14

33

NUT,20M/M

92015-1065

$9.24

33

NUT,20MM

92015-1555

$9.95

34

WASHER,TOOTHED,25X40X5

92022-1114

$11.31

35

SPACER,CLUTCH

92026-1065

Unavailable

35

SPACER,CLUTCH

92026-1065

Unavailable

36

BUSHING,CLUTCH

92028-135

Unavailable

37

PIN,PUSH ROD

92043-1051

Unavailable

38

BEARING-NEEDLE,KTV323723

92046-028

$19.92
