1983 Kawasaki Shaft Drive Shaft/final Gears Diagram

← All diagrams

Find the part on the Drive Shaft/final Gears diagram for your 1983 Kawasaki Shaft, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

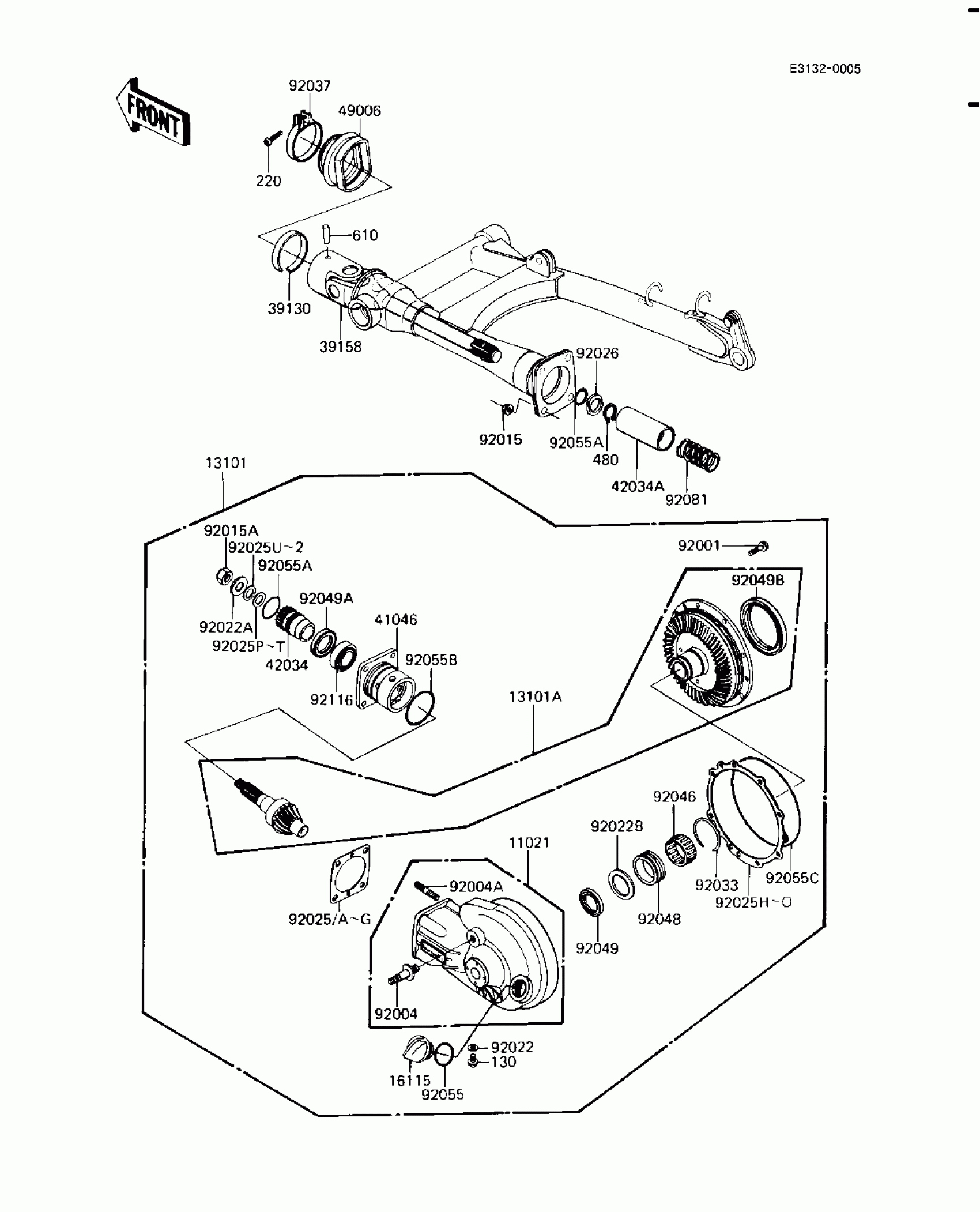

1983 Kawasaki Shaft Drive Shaft/final Gears Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11021

CASE-ASSY,FINAL GEAR,

11021-1014-F2

1
Out of stock

13101

GEAR-ASSY,FINAL,HS SI

13101-1016-B9

1
Out of stock

13101A

GEAR-ASSY,REAR BEVEL

13101-5032

1
Out of stock

16115

CAP

16115-1003

1
Out of stock

39130

SPRING-LEAF

39130-1002

1

$4.24

In stock

39158

SHAFT-ASSY-DRIVE

39158-1061

1

$329.01

In stock

41046

HOUSING-BEARING

41046-1012

1

$268.67

In stock

42034

COUPLING,PROPELLER SHAFT,INNER

42034-1023

1
Out of stock

42034A

COUPLING,PROPELLER SHAFT,OUTER

42034-1092

1
Out of stock

49006

BOOT,PROPELLER SHAFT

49006-1059

1
Out of stock

92001

BOLT,FLANGED,8X28

92001-1095

1
Out of stock

92004

STUD

92004-1020

1
Out of stock

92004A

STUD,10X30

92004-1024

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1415

1
Out of stock

92015A

NUT,16MM

92015-1059

1
Out of stock

92022

WASHER,8.2X16X1

92022-1086

1
Out of stock

92022A

WASHER,16X32X3.2

92022-1105

1
Out of stock

92022B

WASHER,40X52.5X1.4

92022-1237

1
Out of stock

92025

SHIM,T=0.15

92025-1052

—
Out of stock

92025A

SHIM,T=0.50

92025-1053

—
Out of stock

92025B

SHIM,T=0.60

92025-1054

—
Out of stock

92025C

SHIM,T=0.70

92025-1055

—
Out of stock

92025D

SHIM,T=0.80

92025-1056

—
Out of stock

92025E

SHIM,T=0.90

92025-1057

—
Out of stock

92025F

SHIM,T=1.00

92025-1058

—
Out of stock

92025G

SHIM,T=1.20

92025-1059

—
Out of stock

92025H

SHIM,0.15T

92025-1060

—
Out of stock

92025I

SHIM,0.50T

92025-1061

—
Out of stock

92025J

SHIM,0.60T

92025-1062

—
Out of stock

92025K

SHIM,0.70T

92025-1063

—
Out of stock

92025L

SHIM,0.80T

92025-1064

—
Out of stock

92025M

SHIM,0.10T

92025-1065

—
Out of stock

92025N

SHIM,1.00T

92025-1066

—
Out of stock

92025O

SHIM,1.20T

92025-1067

—
Out of stock

92025P

SHIM,T=1.30

92025-1214

—
Out of stock

92025Q

SHIM,T=1.32

92025-1215

—
Out of stock

92025R

SHIM,T=1.34

92025-1216

—
Out of stock

92025S

SHIM,T=1.36

92025-1217

—
Out of stock

92025T

SHIM,T=1.38

92025-1218

—
Out of stock

92025U

SHIM,T=0.10

92025-1219

—
Out of stock

92025V

SHIM,T=0.20

92025-1220

—
Out of stock

92025W

SHIM,T=0.30

92025-1221

—
Out of stock

92025X

SHIM,T=0.50

92025-1222

—
Out of stock

92025Y

SHIM,T=0.60

92025-1223

—
Out of stock

92025Z

SHIM,T=0.70

92025-1224

—
Out of stock

920250

SHIM,T=0.80

92025-1225

—
Out of stock

920251

SHIM,T=0.90

92025-1226

—
Out of stock

920252

SHIM,T=1.00

92025-1227

—
Out of stock

92026

SPACER,26.2X36X2

92026-1085

1
Out of stock

92033

RING,SNAP

92033-1020

1
Out of stock

92037

CLAMP,BOOT FITTING

92037-1112

1
Out of stock

92046

BRG,NDL,KT384620EG-B2

92046-1037

1
Out of stock

92048

RACE,ORT465321E01

92048-1017

1
Out of stock

92049

SEAL-OIL,S-35477HS

92049-1025

1
Out of stock

92049A

SEAL-OIL,SC32487

92049-1033

1
Out of stock

92049B

SEAL-OIL,S-831009HS

92049-1034

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1
Out of stock

92055A

RING-O,ID=32.7

92055-1037

1
Out of stock

92055B

RING-O,57.6X2.4

92055-1038

1
Out of stock

92055C

RING-O,ID=150.4

92055-1039

1
Out of stock

92081

SPRING

92081-1183

1
Out of stock

92116

BEARING-ROLLER,4T32005X

92116-1004

1
Out of stock

130

BOLT-FLANGED,8X12

130B0812

1
Out of stock

220

SCREW-PAN-CROS

220B0430

1
Out of stock

480

CIRCLIP-TYPE-C,26MM

480J2600

1
Out of stock

610

ROLLER,4X6

610A0406

1
Out of stock
