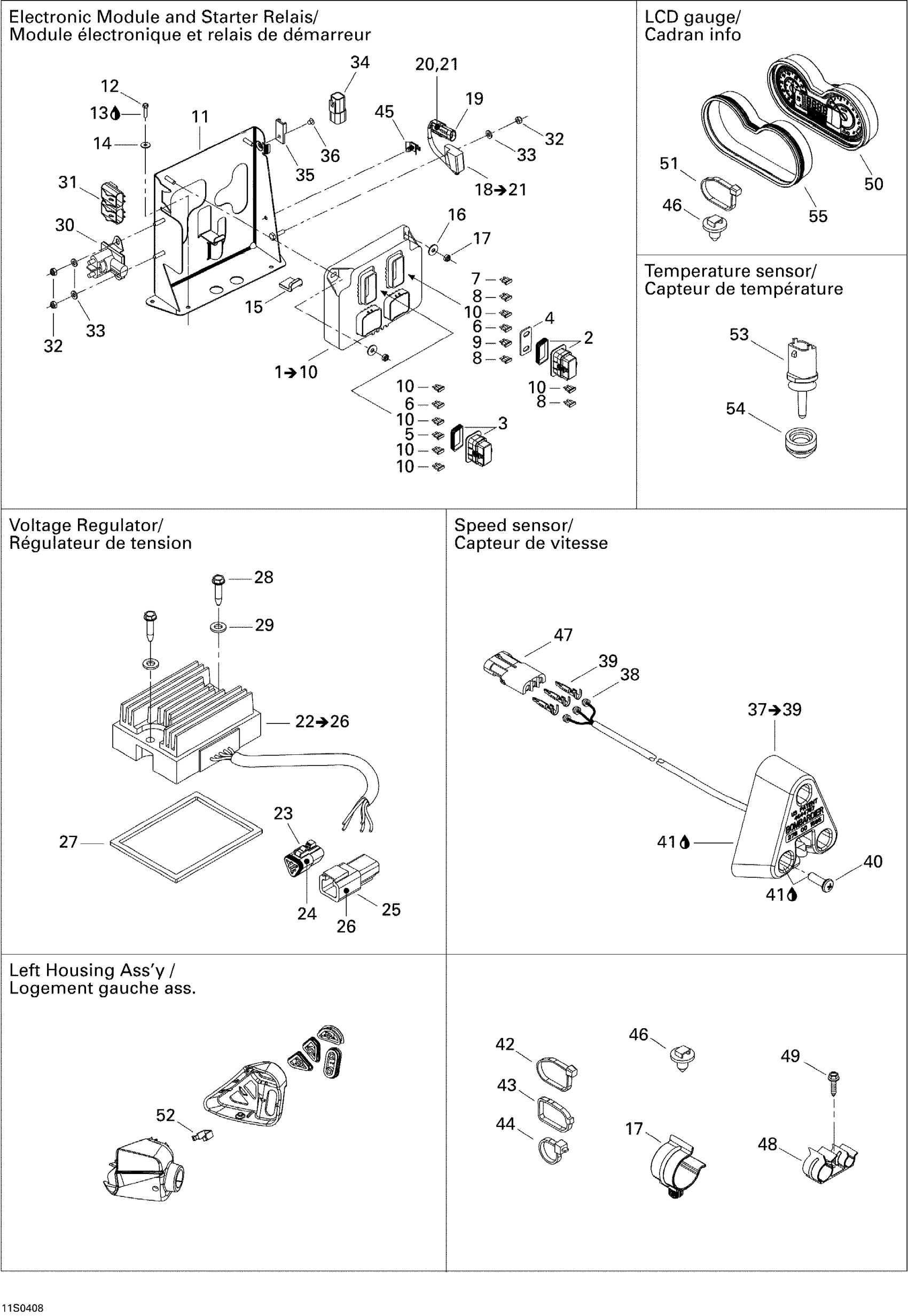

Sea-doo RXP, 2004 Electrical Accessories Diagram
#
1
Electronic Module | Includes 1 to 5
278001913
Unavailable
2
FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.
278002102
Unavailable
3
FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.
278002102
Unavailable
4
COVER BUSHING - Call your local BRP dealership | North America
278001719
Unavailable
5
FUSE, 1 AMPERE - Call your local BRP dealership
409012800
Unavailable
6
FUSE, 2 AMPERES - Call your local BRP dealership
278001442
Unavailable
7
FUSE, 3 AMPERES - Call your local BRP dealership | CE
278001196
Unavailable
8
Fuse, 5 Amperes | CE
278000344
Unavailable
9
FUSE, 7.5 AMPERES - Call your local BRP dealership | CE
278000704
Unavailable
10
Fuse, 10 Amperes | North America
278001197
Unavailable
11
Module Support
278001870
Unavailable
12
Hex. Screw 10-14 X 7/8”
211000023
Unavailable
13
Loctite 271, 10 ml
293800005
Unavailable
14
WASHER-LOCK IMPERIAL - Call your local BRP dealership
211200043
Unavailable
15
MODULE PROTECTOR - Call your local BRP dealership
278001166
Unavailable
16
Flat Washer M6, Stainless
234062600
Unavailable
17
Hex. Elastic Stop Nut M6
232561600
Unavailable
18
T.O.P.S. SWITCH - Call your local BRP dealership | Includes 13 to 16
278001547
Unavailable
19
Female Housing, 2 Circuits
278000217
Unavailable
20
Male Terminal | XT Models
278000222
Unavailable
21
Wire Seal
278000218
Unavailable
22
REGULATOR - Call your local BRP dealership | Includes 11 to 15
278001969
Unavailable
23
CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership
278002375
Unavailable
24
Male Terminal
278000631
Unavailable
25
Male Housing, 2 Circuits
409206900
Unavailable
26
Female Terminal
515175567
Unavailable
27
SEAL - Call your local BRP dealership
293250123
Unavailable
28
Hex. Screw 10-14 X 7/8”
211000023
Unavailable
29
Stainless Flat Washer M6
234061600
Unavailable
30
Starter Relay
278003012
Unavailable
31
HOUSING COVER - Call your local BRP dealership
710000342
Unavailable
32
Hex. Elastic Stop Nut M6
232561600
Unavailable
33
Stainless Flat Washer M6
234061600
Unavailable
34
Diagnostic Connector
278002704
Unavailable
35
Clip
270000141
Unavailable
36
Pop Rivet 3/16"
204000081
Unavailable
37
Speed Sensor
278001993
Unavailable
38
Wire Seal
710000048
Unavailable
39
Male Terminal | XT Models
278000222
Unavailable
40
PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
211000021
Unavailable
41
Silicone Sealant 51388, 300 ml
296000309
Unavailable
42
Tie-Rap 180 mm
414115200
Unavailable
43
Tie Wrap 368 mm
293750008
Unavailable
44
Tie-Rap 206 mm
293750027
Unavailable
45
Self-Locking Clip
278001775
Unavailable
46
Mount Dart
293730040
Unavailable
47
Female Terminal Housing, 3 Circuits | XT Models
278000281
Unavailable
48
RETAINER - Call your local BRP dealership
275500553
Unavailable
49
Hex. Flange Screw K40 X 16
241141660
Unavailable
50
LCD GAUGE - Call your local BRP dealership
278001701
Unavailable
51
Tie-Rap 180 mm
414115200
Unavailable
52
U Bracket
277001069
Unavailable
53
AIR TEMPERATURE SENSOR - Call your local BRP dealership
270600000
Unavailable
54
INSULATOR - Call your local BRP dealership
278001054
Unavailable
55
GAUGE SUPPORT - Call your local BRP dealership
278001603
Unavailable
