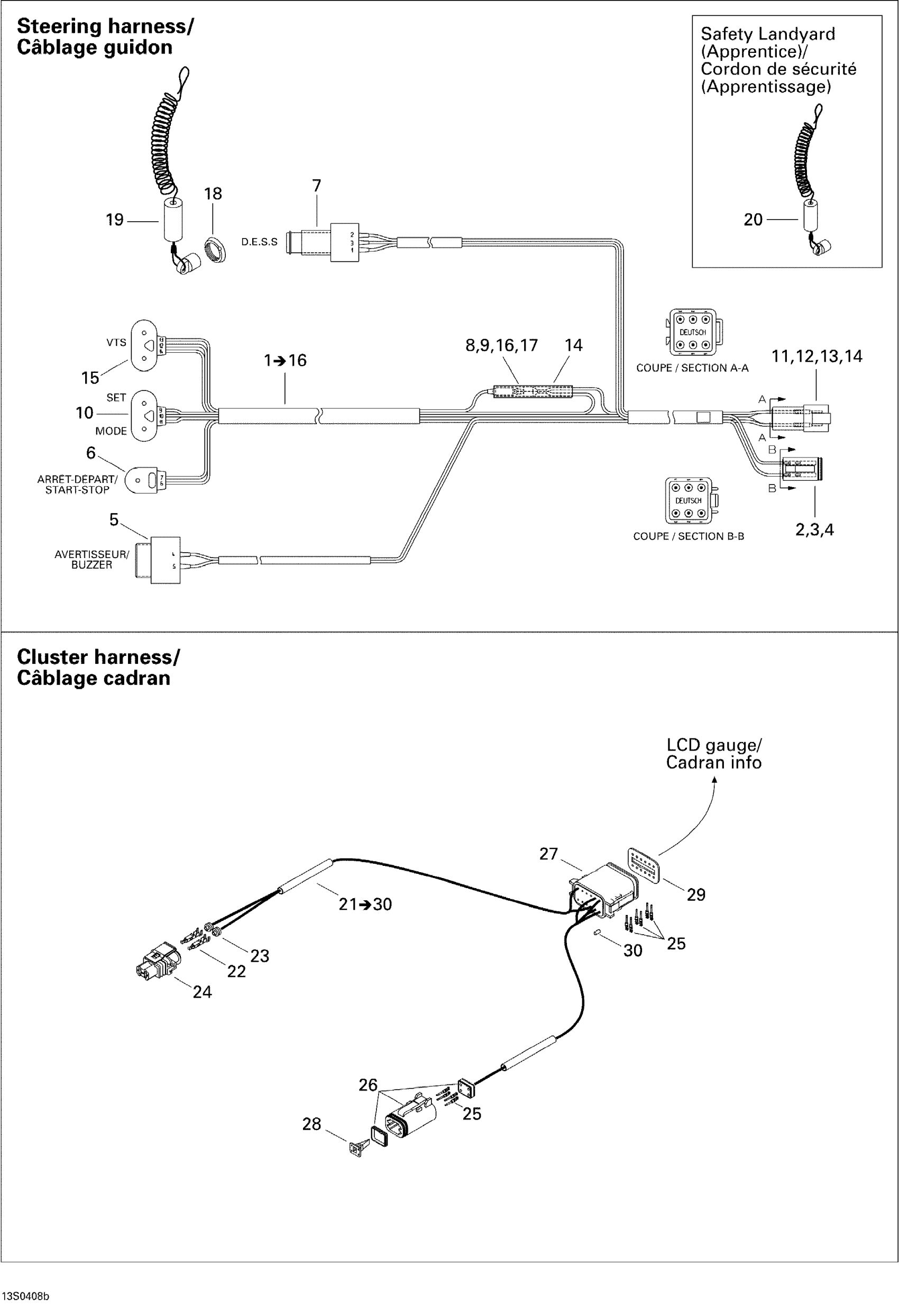

Sea-doo RXP, 2004 Steering Harness and Cluster Harness Diagram
#
Description
Price
1
STEERING HARNESS - Call your local BRP dealership | Includes 1 to 17
278001700
Unavailable
2
MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
710001540
Unavailable
3
Female Terminal
278000632
Unavailable
4
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
278000737
Unavailable
5
BUZZER - Call your local BRP dealership
278001586
Unavailable
6
START/STOP SWITCH - Call your local BRP dealership
278001733
Unavailable
7
Safety Switch This part replaces 278002325.
278002773
Unavailable
8
Male Terminal
278000230
Unavailable
9
Insulated Sheath
278001008
Unavailable
10
Mode/Set Switch
278001739
Unavailable
11
Male Terminal Housing, 6 Circuits
710001539
Unavailable
12
Male Terminal
278000631
Unavailable
13
Female Lock, 6 Circuits
278000735
Unavailable
14
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
15
VTS SWITCH - Call your local BRP dealership | SERV
278002156
Unavailable
16
Female Terminal | DS 650 X
278001009
Unavailable
17
Insulated Sheath
278000770
Unavailable
18
Safety Nut (DESS Switch)
278002963
Unavailable
19
Safety Lanyard, Antitheft This part replaces 278001543.
278002199
Unavailable
20
Safety Lanyard, Learning Key
278002203
Unavailable
21
Cluster Harness Ass'y | Includes 19 to 28
278001600
Unavailable
22
Female Terminal
278000998
Unavailable
23
Wire Seal
278000999
Unavailable
24
Male Housing, 2 Circuits
278001005
Unavailable
25
Female Terminal
278000632
Unavailable
26
Male Connector, 4 Circuits | CE
278000739
Unavailable
27
Female Terminal Housing, 12 Circuits
278002377
Unavailable
28
Male Lock, 4 Circuits | CE
278000738
Unavailable
29
Female Lock, 12 Circuits
409015700
Unavailable
30
Sealing Cap
293000052
Unavailable
