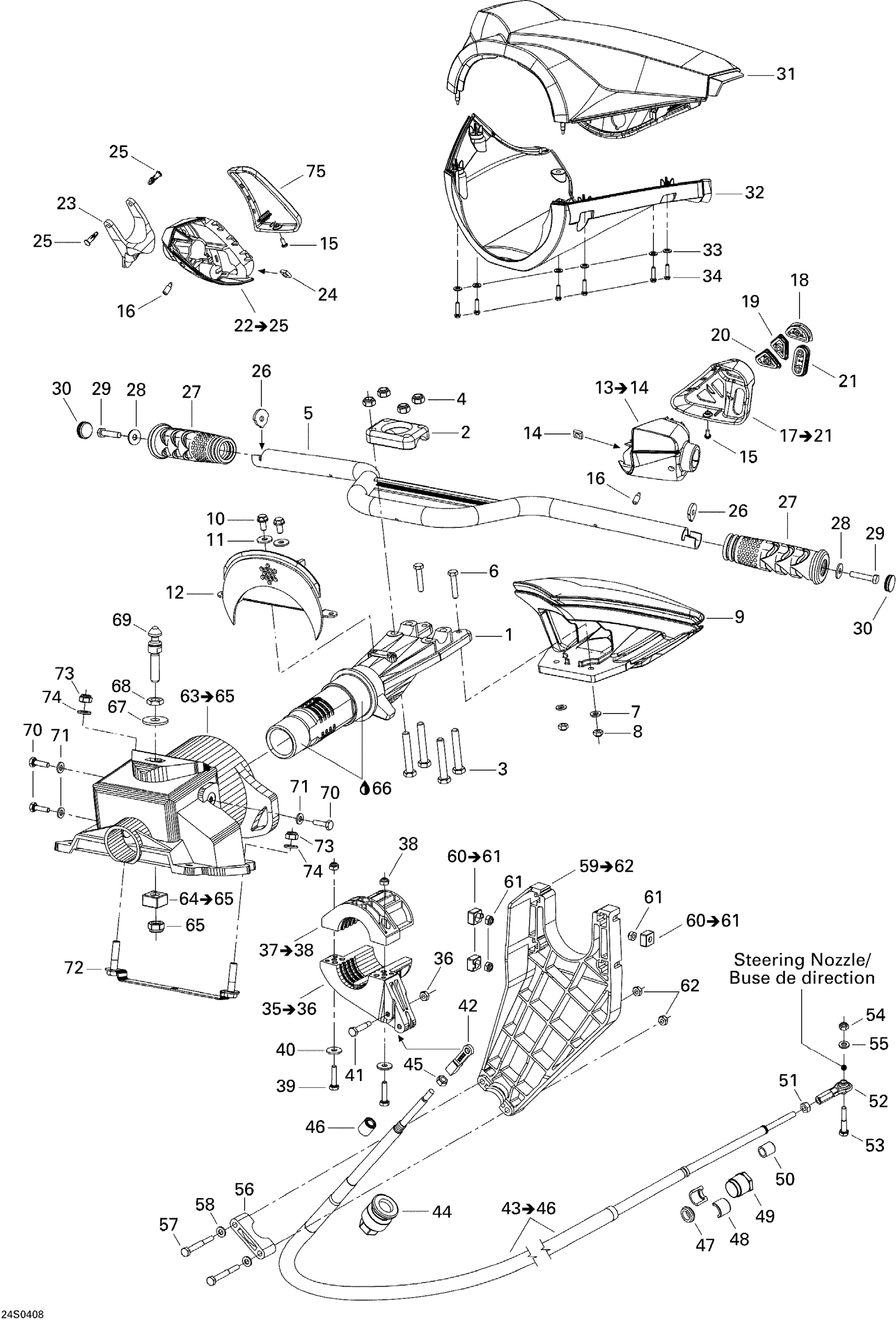

Sea-doo RXP, 2004 Steering System Diagram
#
1
Steering Stem
277000562400
Unavailable
2
STEERING CLAMP - Call your local BRP dealership
277000142
Unavailable
3
HEX. SCREW M8 X 50 - Call your local BRP dealership
207085060
Unavailable
4
Hex. Elastic Nut M8
232581600
Unavailable
5
Handlebar
277001012
Unavailable
6
Hex. Screw M6 X 30
207063060
Unavailable
7
Stainless Flat Washer M6
234061600
Unavailable
8
Hex. Elastic Stop Nut M6
232561600
Unavailable
9
HANDLE PAD - Call your local BRP dealership | Apple Green, B-230
277001111
Unavailable
9
Handle Pad, Metallic Pewter | RXP (Yellow)
277001284
Unavailable
10
HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership
211000036
Unavailable
11
Flat Washer M6, Stainless
234062600
Unavailable
12
PLATE - Call your local BRP dealership
277000549
Unavailable
13
HOUSING ASS'Y - Call your local BRP dealership | Includes 8 to 9
277001481
Unavailable
14
SQUARE NUT M6 - Call your local BRP dealership
232860600
Unavailable
15
PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership
209630960
Unavailable
16
Socket Head Screw M6 X 16
250000036
Unavailable
17
Cover Housing Ass'y | Includes 17 to 21
277001088
Unavailable
18
Stop Knob
278001713
Unavailable
19
MODE KNOB - Call your local BRP dealership
278001714
Unavailable
20
SET KNOB - Call your local BRP dealership
278001715
Unavailable
21
Vts Knob
278001717
Unavailable
22
THROTTLE HOUSING ASS'Y - Call your local BRP dealership | Includes 16 to 19
277001483
Unavailable
23
THROTTLE HANDLE - Call your local BRP dealership
277001485
Unavailable
24
SQUARE NUT M6 - Call your local BRP dealership
232860600
Unavailable
25
PIN - Call your local BRP dealership
277000381
Unavailable
26
Insert Grip Handle
277001863
Unavailable
27
HANDLE GRIP - Call your local BRP dealership | Apple Green, B-230
277001161
Unavailable
27
Handle Grip Kit Yellow/Black This part replaces 277001162.
295500981
Unavailable
28
Flat Washer M6, Stainless
234062600
Unavailable
29
Hex. Screw M6 X 30, Scotch Grip
250000002
Unavailable
30
Black, Cap
277000203
Unavailable
31
UPPER STEERING COVER, BLACK - Call your local BRP dealership
277000952
Unavailable
32
LOWER STEERING COVER, BLACK - Call your local BRP dealership
277001145
Unavailable
33
Flat Washer M5, Stainless
234051600
Unavailable
34
Hex. Flange Screw K40 X 16
241141660
Unavailable
35
Steering Stem Arm | Includes 41 to 42
277000518
Unavailable
36
Hex. Elastic Stop Nut M6
232561600
Unavailable
37
Arm Thrust | Includes 43 to 44
277000519
Unavailable
38
Hex. Elastic Stop Nut M6
232561600
Unavailable
39
Hex. Screw M6 X 25
207162560
Unavailable
40
Flat Washer M6, Stainless
234062600
Unavailable
41
Hex. Screw M6 X 30
211000081
Unavailable
42
Ball Joint
277001180
Unavailable
43
Steering Cable | Includes 43 to 46
277001017
Unavailable
44
Ajustment Knob
277000782
Unavailable
45
Hex. Nut 1/4"-28
211100056
Unavailable
46
Terminal Wiper
277000441
Unavailable
47
Rubber Washer
293830063
Unavailable
48
Half Ring
277001527
Unavailable
49
Steering Cable Lock This part replaces 277000784.
277001729
Unavailable
50
Terminal Wiper
277000441
Unavailable
51
Hex. Nut 1/4"-28
211100056
Unavailable
52
Ball Joint
277000775
Unavailable
53
Hex. Screw M6 X 35
207063560
Unavailable
54
Hex. Elastic Stop Nut M6
232561600
Unavailable
55
Stainless Flat Washer M6
234061600
Unavailable
56
SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.
277001528
Unavailable
57
Hex. Screw M6 X 50
207065060
Unavailable
58
Stainless Flat Washer M6
234061600
Unavailable
59
CABLE SUPPORT - Call your local BRP dealership | Includes 56 to 58
277001522
Unavailable
60
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
Unavailable
61
Hex. Nut M6
232061600
Unavailable
62
Hex. Elastic Stop Nut M6
232561600
Unavailable
63
STEERING SUPPORT - Call your local BRP dealership | Includes 59 to 61
277001471
Unavailable
64
Nut Housing Ass’Y | Includes 64 to 65
271001115
Unavailable
65
HEX. NUT M10 - Call your local BRP dealership
232001600
Unavailable
66
Synthetic Grease, 400 G
293550010
Unavailable
67
Flat Washer 10 mm, Stainless
234002600
Unavailable
68
Hex. Jam Nut M10
232100600
Unavailable
69
LATCH STUD - Call your local BRP dealership
291000689
Unavailable
70
Hex. Forming Screw M6 X 20
207162060
Unavailable
71
Stainless Flat Washer M6
234061600
Unavailable
72
Steering Support
277001000
Unavailable
73
Hex. Elastic Nut M8
232581600
Unavailable
74
Stainless, Flat Washer 8 mm
234081600
Unavailable
75
THROTTLE HOUSING COVER - Call your local BRP dealership
277001023
Unavailable
