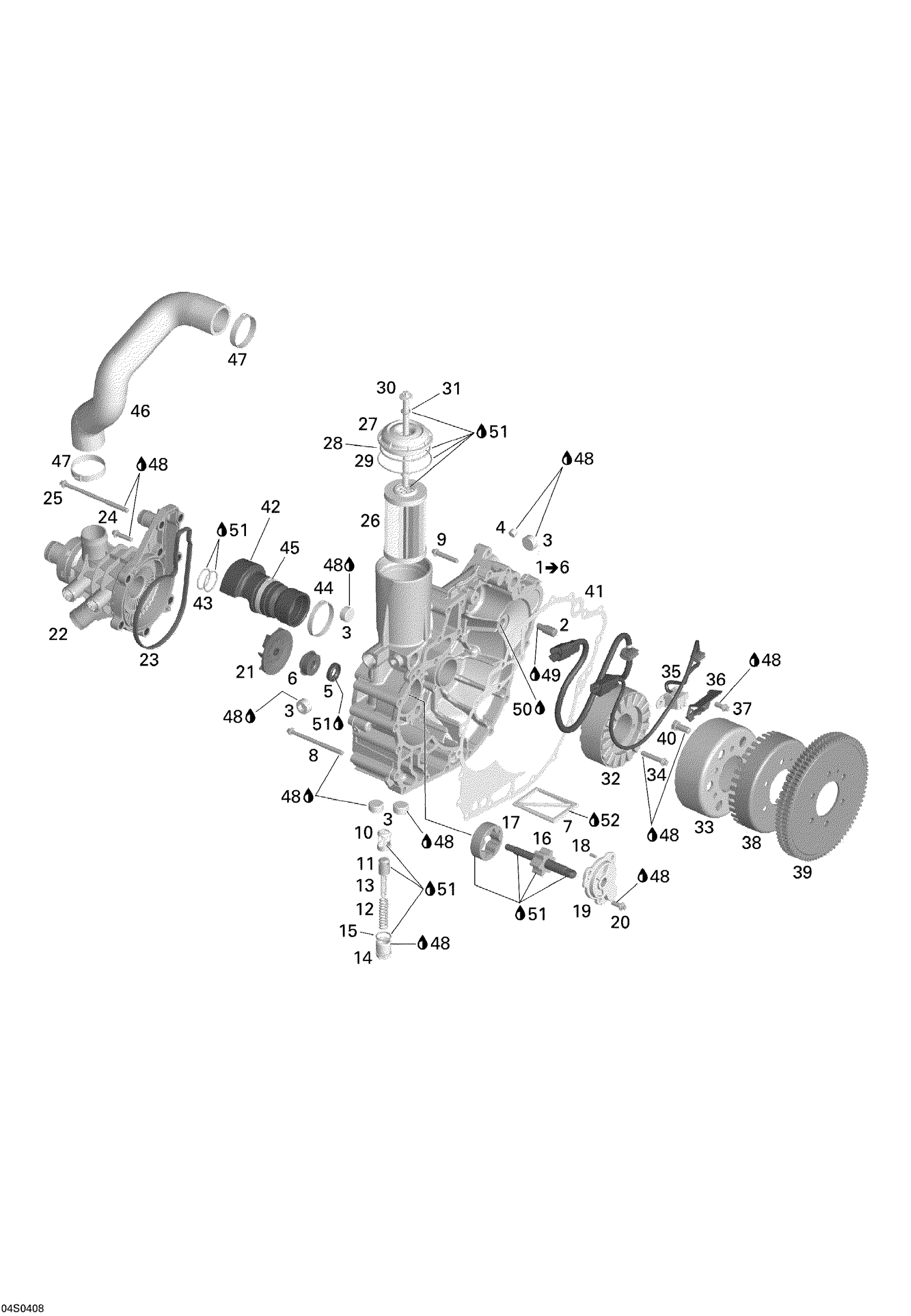

Sea-doo RXP, 2004 PTO Cover And Magneto Diagram
#
1
TIMING/DRIVE COVER ASS'Y - Call your local BRP dealership | Includes 1 to 6
420811579
Unavailable
2
SPRAY NOZZLE - Call your local BRP dealership
420856012
Unavailable
3
Plug Screw M20 X 1.5
420641317
Unavailable
4
Plug Screw M10 X 1
420641323
Unavailable
5
Oil Seal
420650315
Unavailable
6
Rotary Seal
420650371
Unavailable
7
Oil Sieve
420956950
Unavailable
8
Torx Flange Screw M6 X 85
420641228
Unavailable
9
Torx Flange Screw M6 X 35
420641258
Unavailable
10
Valve Seat Sleeve
420256606
Unavailable
11
Piston Valve
420256638
Unavailable
12
Compression Spring
420939211
Unavailable
13
Compression Spring
420939401
Unavailable
14
Plug Screw M20 X 1.5
420641052
Unavailable
15
O-Ring
420230890
Unavailable
16
Pump Shaft Ass'y
420837472
Unavailable
17
Oil Pump Rotor 16 mm
420956675
Unavailable
18
Needle Pin
420929070
Unavailable
19
Oil Pump Cover
420811591
Unavailable
20
Torx Flange Screw M6 X 16
420641048
Unavailable
21
Impeller
420922801
Unavailable
22
Water Pump Housing Ass'Y | Includes 26 to 27 This part replaces 420922686.
420922921
Unavailable
23
Water Pump Housing Gasket | Included in gasket kit
420950840
Unavailable
24
Torx Flange Screw M6 X 25
420641238
Unavailable
25
Torx Flange Screw M6 X 105
420641338
Unavailable
26
Oil Filter
420956741
Unavailable
27
Oil Filter Cover
420610329
Unavailable
28
O-Ring
420850500
Unavailable
29
O-Ring
420230923
Unavailable
30
Oil Filter Screw Kit
295501207
Unavailable
31
O-Ring
420950860
Unavailable
32
STATOR ASS'Y - Call your local BRP dealership
420889720
Unavailable
33
MAGNETO FLYWHEEL ASS'Y - Call your local BRP dealership
420889710
Unavailable
34
Torx Flange Screw M6 X 35
420641258
Unavailable
35
CRANKSHAFT SENSOR - Call your local BRP dealership
420664140
Unavailable
36
Retaining Plate
420926300
Unavailable
37
Torx Flange Screw M6 X 16
420641048
Unavailable
38
Trigger Wheel
420966851
Unavailable
39
Starter Double Gear 87/86T
420834871
Unavailable
40
Hex Screw
295501162
Unavailable
41
Timing Drive Cover Gasket (1603 NA) | Included in gasket kit
420931130
Unavailable
42
Ball Bearing With Bellows Ass'y | Includes 50 to 52
420832648
Unavailable
43
O-Ring
420631612
Unavailable
44
Gear Clamp
420851653
Unavailable
45
Gear Clamp 46.8-50.0MM
420853023
Unavailable
46
Formed Hose
420922822
Unavailable
47
Oetiker Clamp
420851687
Unavailable
48
Loctite 243, 10 ml
293800060
Unavailable
49
Sealant Loctite 648
219703000
Unavailable
50
Dow Corning 111, 150 g
413707000
Unavailable
51
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership
293600121
Unavailable
52
Loctite 5910, 300 ml
293800081
Unavailable
