Sea-doo RXP, 2004 Main Harness Diagram
#
10

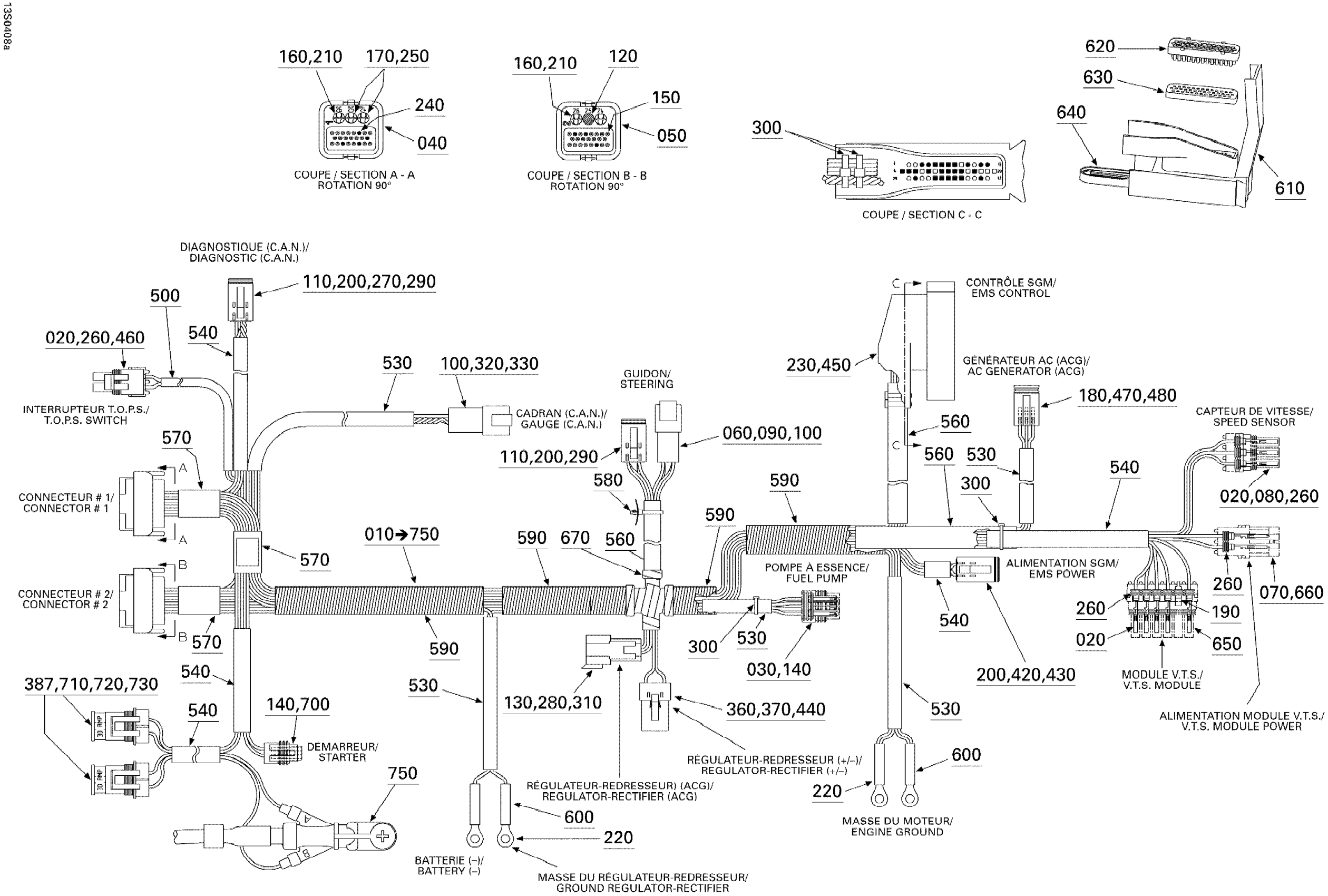

Main Harness | Includes 10 to 750
278001551
Unavailable
20
Female Terminal
278000223
Unavailable
30
MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership
278001308
Unavailable
40
Male Connector, 26 Circuits | Includes 16a - 17.
278000993
Unavailable
50
Male Terminal Housing, 26 Circuits
278001062
Unavailable
60
Male Terminal Housing, 6 Circuits
710001539
Unavailable
70
Female Housing, 2 Circuits
278000217
Unavailable
80
Male Housing, 3 Circuits
278000273
Unavailable
90
Female Lock, 6 Circuits
278000735
Unavailable
100
Male Terminal
278000631
Unavailable
110
MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
710001540
Unavailable
120
SEAL - Call your local BRP dealership
409013900
Unavailable
130
Male Terminal
515175823
Unavailable
140
Female Terminal
278001114
Unavailable
150
FEMALE TERMINAL - Call your local BRP dealership
278000995
Unavailable
160
FEMALE TERMINAL - Call your local BRP dealership
278000994
Unavailable
170
FEMALE TERMINAL - Call your local BRP dealership
409011700
Unavailable
180
FEMALE TERMINAL - Call your local BRP dealership
278001661
Unavailable
190
Wire Seal
278000216
Unavailable
200
Female Terminal
278000632
Unavailable
210
WIRE SEAL - Call your local BRP dealership
278000996
Unavailable
220
Open Barrel Terminal
278001392
Unavailable
230
MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership
278001751
Unavailable
240
SEALING CAP - Call your local BRP dealership
293000070
Unavailable
250
Seal
278001223
Unavailable
260
Wire Seal
278000218
Unavailable
270
Sealing Cap
293000052
Unavailable
280
Male Lock, 3 Circuits
409207600
Unavailable
290
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
278000737
Unavailable
300
Tie Wrap 142 mm
293750002
Unavailable
310
Male Housing
278002378
Unavailable
320
Female Housing, 4 Circuits
278000635
Unavailable
330
Female Wedge, 4 Circuits
278000636
Unavailable
360
Female Terminal Housing, 2 Circuits
278001673
Unavailable
370
Female Lock, 2 Circuits
278001671
Unavailable
387
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
420
Male Connector, 4 Circuits | CE
278000739
Unavailable
430
Male Lock, 4 Circuits | CE
278000738
Unavailable
440
Female Terminal
515175567
Unavailable
450
FEMALE TERMINAL - Call your local BRP dealership
278001750
Unavailable
460
Male Connector, 2 Circuits
278000220
Unavailable
470
CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership
278002375
Unavailable
480
Female Lock
409207200
Unavailable
500
Not Available As Spare Part - Friction Washer
Unavailable
530
Not Available As Spare Part - Friction Washer
Unavailable
540
Not Available As Spare Part - Friction Washer
Unavailable
560
Not Available As Spare Part - Friction Washer
Unavailable
570
Not Available As Spare Part - Friction Washer
Unavailable
580
Tie-Rap 173 mm
293750009
Unavailable
590
Not Available As Spare Part - Friction Washer
Unavailable
600
Not Available As Spare Part - Friction Washer
Unavailable
610
COVER - Call your local BRP dealership
515175885
Unavailable
620
Latch
515175883
Unavailable
630
SEAL - Call your local BRP dealership
515175886
Unavailable
640
LOCK - Call your local BRP dealership
515175884
Unavailable
650
MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership
278000221
Unavailable
660
Male Terminal
409004300
Unavailable
670
Not Available As Spare Part - Friction Washer
Unavailable
700
Male Connector, 2 Circuits
278001113
Unavailable
710
Not Available As Spare Part - Friction Washer
Unavailable
720
Fuse Holder
278001325
Unavailable
730
Female Terminal
710000357
Unavailable
750
Battery Cable
278001859
Unavailable
