2005 Yamaha RX-1 (RX10K) Starter Diagram

← All diagrams

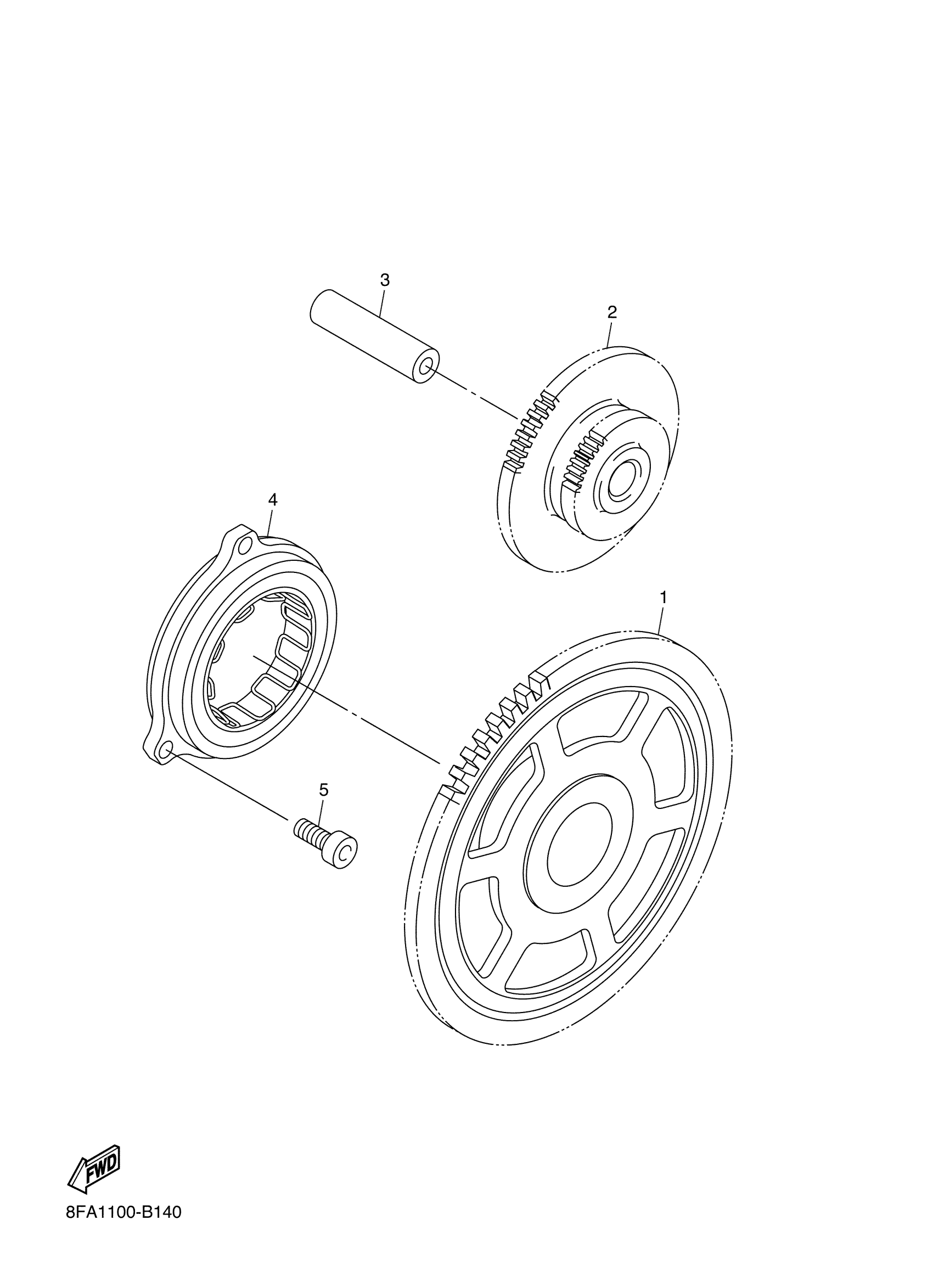

Find the part on the Starter diagram for your 2005 Yamaha RX-1 (RX10K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Yamaha RX-1 (RX10K) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR 3

8FA-15515-00-00

1

$148.89

In stock

2

GEAR, IDLER 1

8FA-15512-00-00

—

$132.29

In stock

3

SHAFT 1

26H-15521-00-00

—

$18.69

In stock

4

STARTER ONE-WAY ASSY

8GC-15590-10-00

—

$299.75

In stock

5

BOLT,SOCKET

91317-06014-00

1
Out of stock
