2005 Yamaha RX-1 (RX10K) Generator Diagram

← All diagrams

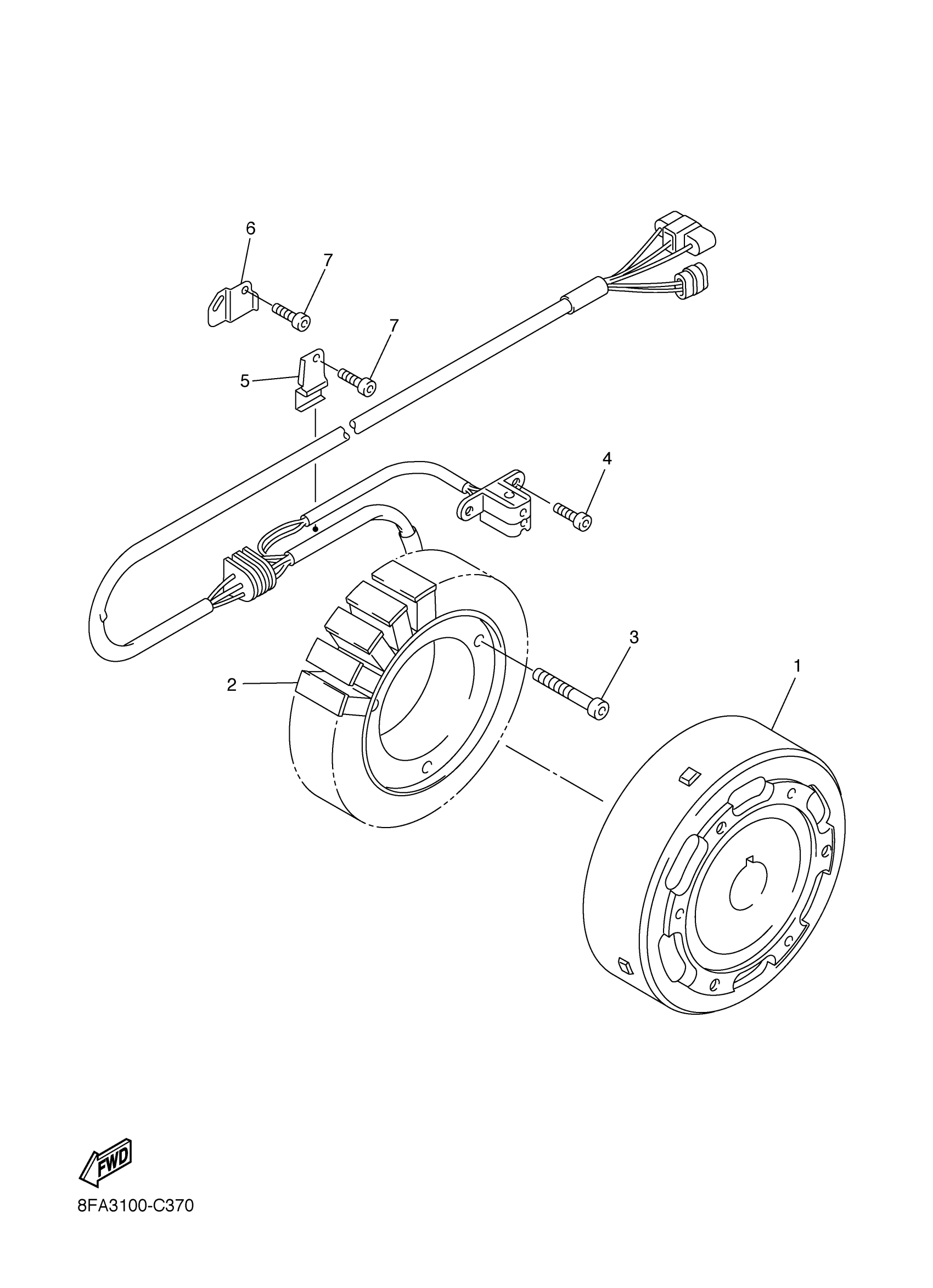

Find the part on the Generator diagram for your 2005 Yamaha RX-1 (RX10K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Yamaha RX-1 (RX10K) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROTOR ASSY

8FA-81450-00-00

1
Out of stock

2

STATOR ASSY

8FA-81410-00-00

—

$465.99

In stock

3

BOLT,SOCKET

91317-06035-00

1

$3.47

In stock

4

BOLT, SOCKET

91317-05016-00

1

$2.48

In stock

5

PLATE

8FA-15113-00-00

—

$4.02

In stock

6

PLATE

8FG-15191-00-00

—

$9.75

In stock

7

BOLT,SOCKET

91317-06012-00

1

$6.17

In stock
