2005 Yamaha RX-1 (RX10K) Meter Diagram

← All diagrams

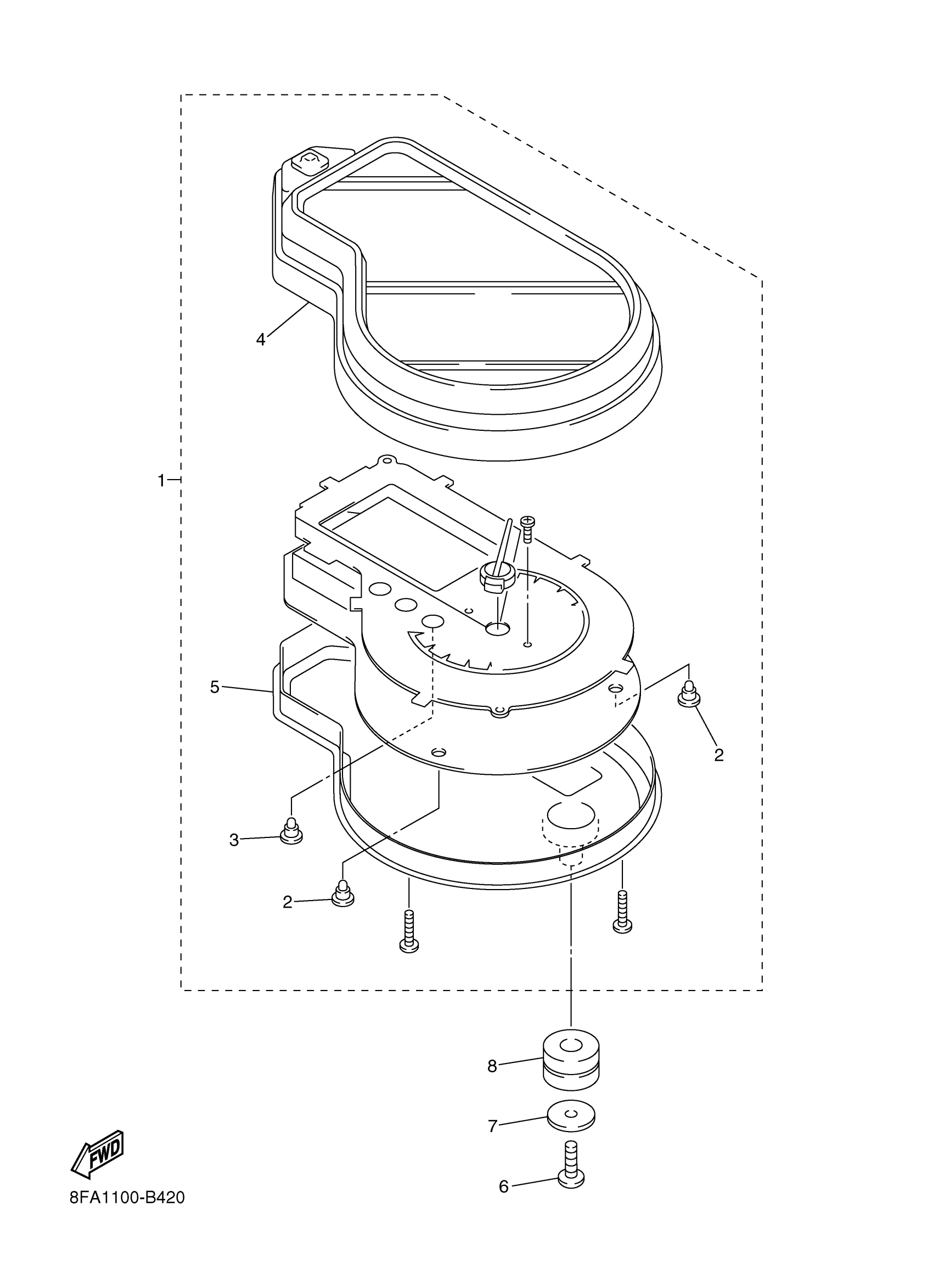

Find the part on the Meter diagram for your 2005 Yamaha RX-1 (RX10K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Yamaha RX-1 (RX10K) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSY (KM/H)

8FG-83500-11-00

1
Out of stock

2

BULB

5JA-83517-00-00

1
Out of stock

3

BULB (T3.4 12V-80MA)

4WM-83517-10-00

1
Out of stock

4

CASE, METER UPPER

8EK-8353E-01-00

—

$44.42

In stock

5

CASE, SPEEDOMETER LOWER

8EK-83572-01-00

—

$55.05

In stock

6

SCREW, TAPPING(4MV)

97707-50016-00

1

$1.16

In stock

7

WASHER, PLATE (8J0)

90201-05725-00

—

$6.80

In stock

8

DAMPER

4XV-83513-00-00

1

$6.42

In stock
