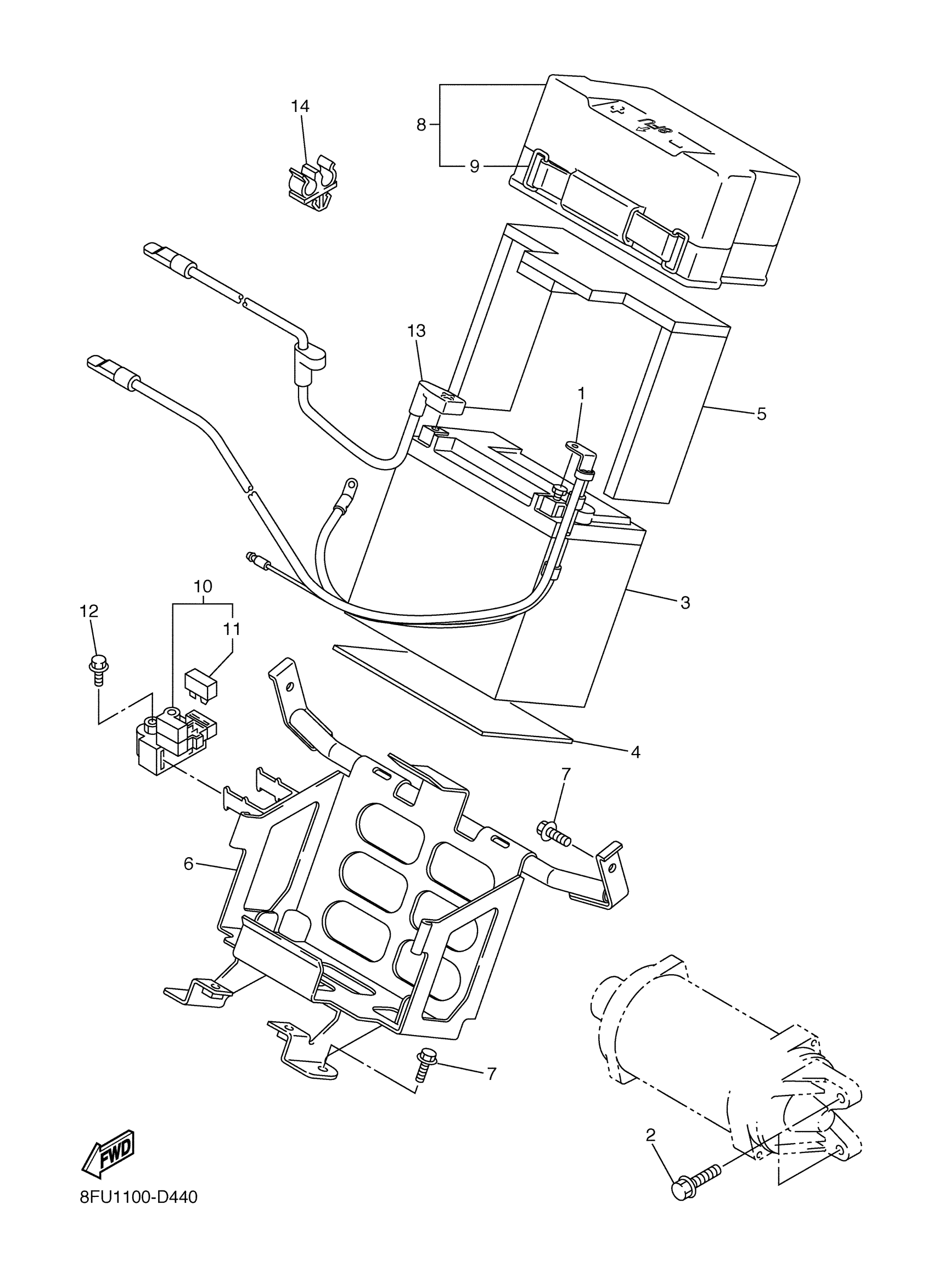

Find the part on the Electrical 2 diagram for your 2005 Yamaha RX-1 (RX10K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Yamaha RX-1 (RX10K) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WIRE, MINUS LEAD

8FU-82116-00-00

—

$37.38

In stock

2

BOLT, FLANGE(6TA)

95817-08030-00

1

$6.17

In stock

3

YTX14BS YUASA BATTERY - SA

YTX-14BS0-00-00

1
Out of stock

4

SEAT, BATTERY

8FA-82122-00-00

—

$6.11

In stock

5

PLATE, BATTERY FITTING

8FU-82136-00-00

—

$19.83

In stock

6

BRACKET, BATTERY

8FU-2199G-00-00

—

$719.99

In stock

7

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

8

COVER, BATTERY

8FU-82129-00-00

—

$56.82

In stock

9

BAND, BATTERY

8DM-82131-10-00

1

$12.75

In stock

10

1

$128.29

In stock

11

FUSE (12V 30A)

1AE-82151-00-00

1
Out of stock

12

BOLT, SMALL FLANGE

95027-06008-00

1

$5.60

In stock

13

WIRE, PLUS LEAD

8FP-82115-00-00

—

$50.68

In stock

14

CLAMP(87A)

90464-08126-00

1
Out of stock
