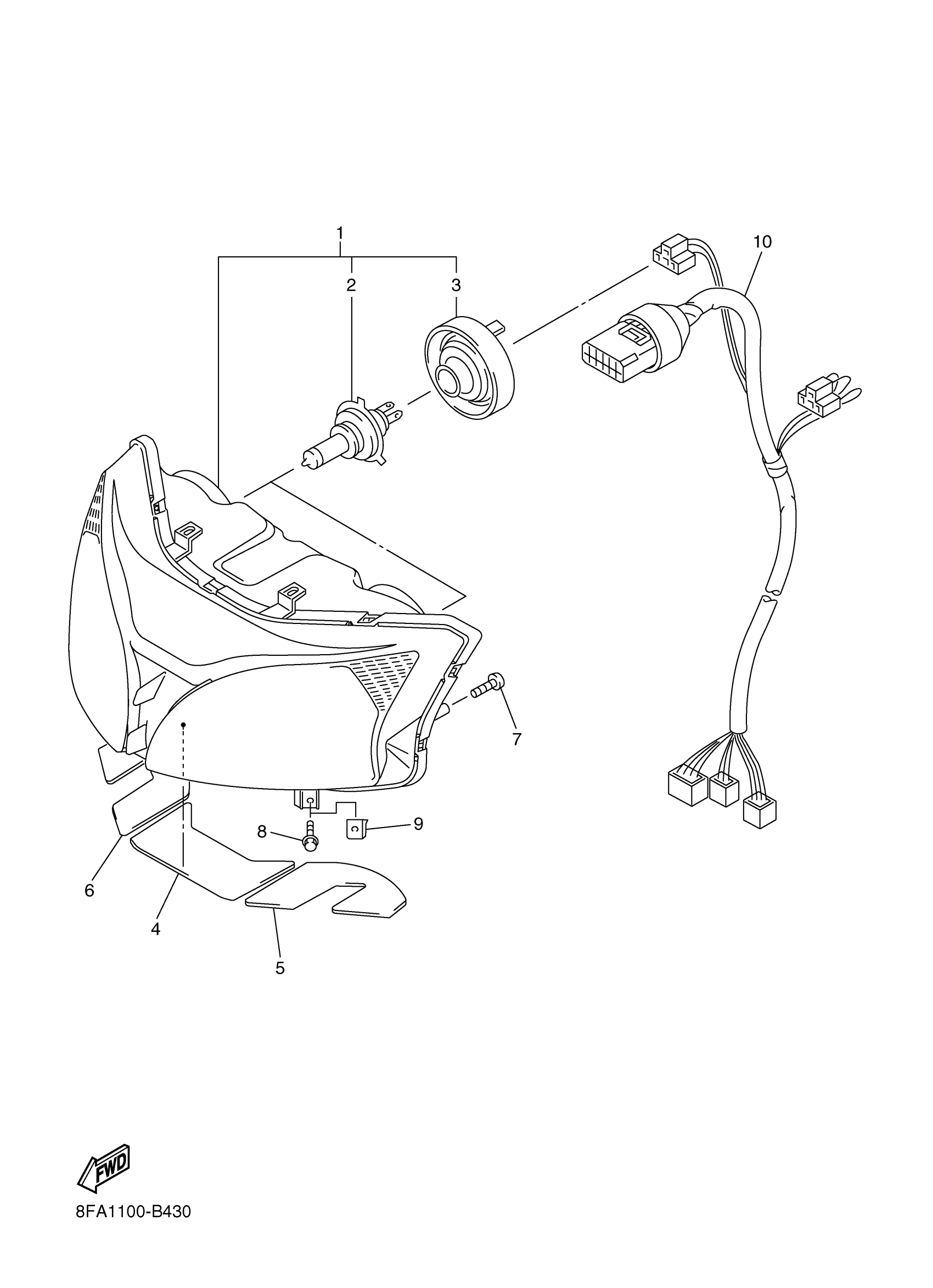

Find the part on the Headlight diagram for your 2005 Yamaha RX-1 (RX10K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Yamaha RX-1 (RX10K) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSY

8FA-84310-20-00

1
Out of stock

2

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

3

COVER, SOCKET

5GJ-84397-00-00

1
Out of stock

4

INSULATOR 1

8EK-8399N-00-00

—

$6.05

In stock

5

INSULATOR 2

8EK-8368L-00-00

—

$2.71

In stock

6

INSULATOR 3

8EK-8368M-00-00

—

$2.71

In stock

7

SCREW, TAPPING(4MV)

97707-50016-00

1

$1.16

In stock

8

BOLT, FLANGE

95817-06016-00

1

$1.49

In stock

9

NUT, SPRING

90183-06100-00

1
Out of stock

10

CORD, HEADLIGHT

8FU-84359-00-00

—

$136.25

In stock
