2019 Suzuki RV200L9 Starting Motor Diagram

← All diagrams

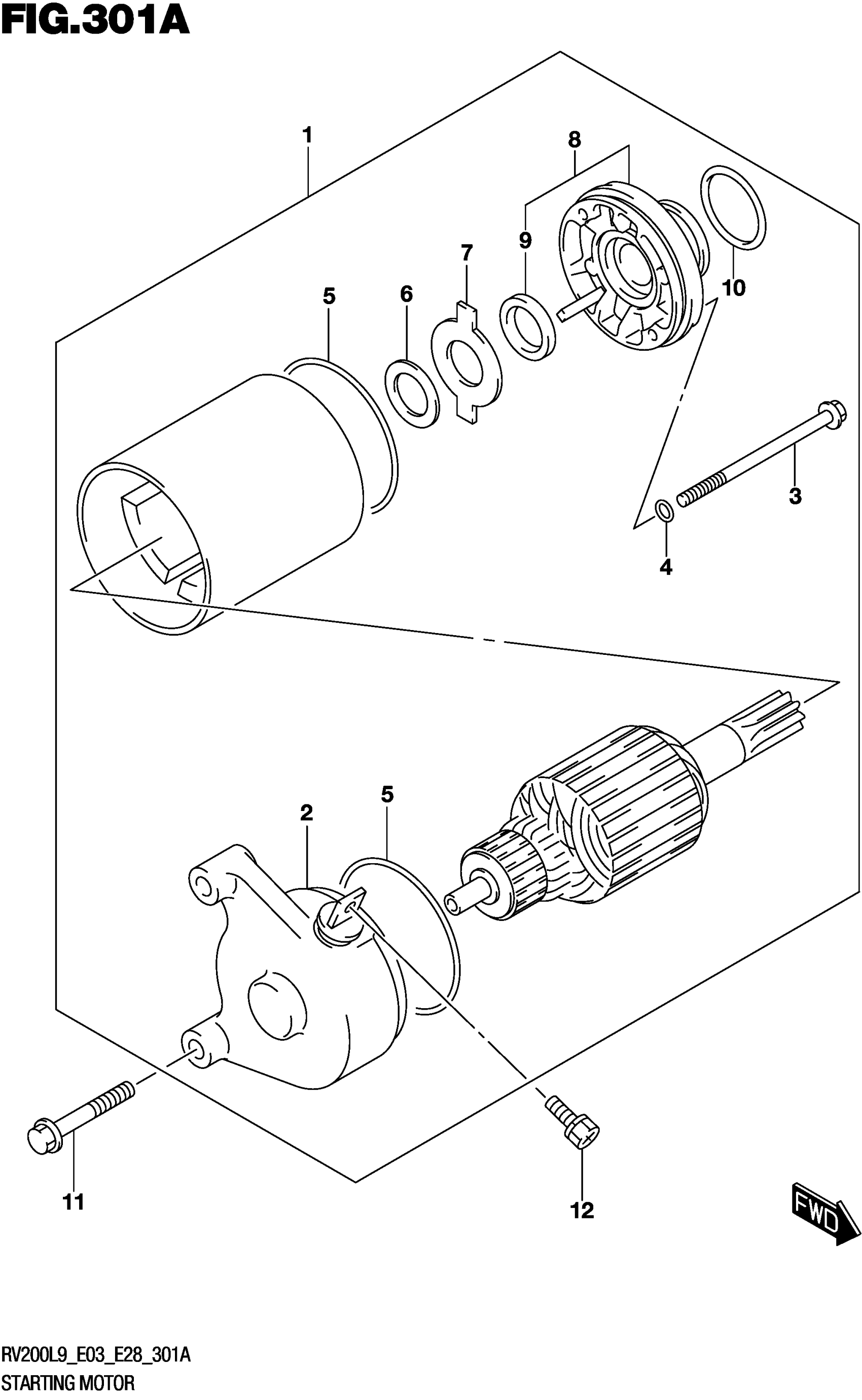

Find the part on the Starting Motor diagram for your 2019 Suzuki RV200L9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki RV200L9 Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MOTOR ASSY

31100-42A20

1

$742.08

In stock

2

.FRAME ASSY

31175-42A20

1
Out of stock

3

.BOLT

31281-08F00

2
Out of stock

4

.O RING

31156-08F00

2

$5.10

In stock

5

.O-RING

31264-32C10

2

$16.03

In stock

6

.SHIM

31361-38300

1

$2.25

In stock

7

.PLATE,LOCK

31361-32C10

1
Out of stock

8

.BRACKET

31150-08F00

1
Out of stock

9

..SEAL,OIL

31153-49210

1

$27.32

In stock

10

.O-RING (D:3,ID:24.5)

09280-24003

1
Out of stock

11

BOLT

01547-0630A

2

$2.48

In stock

12

SCREW (5X8)

09137-05004

1

$2.50

In stock
