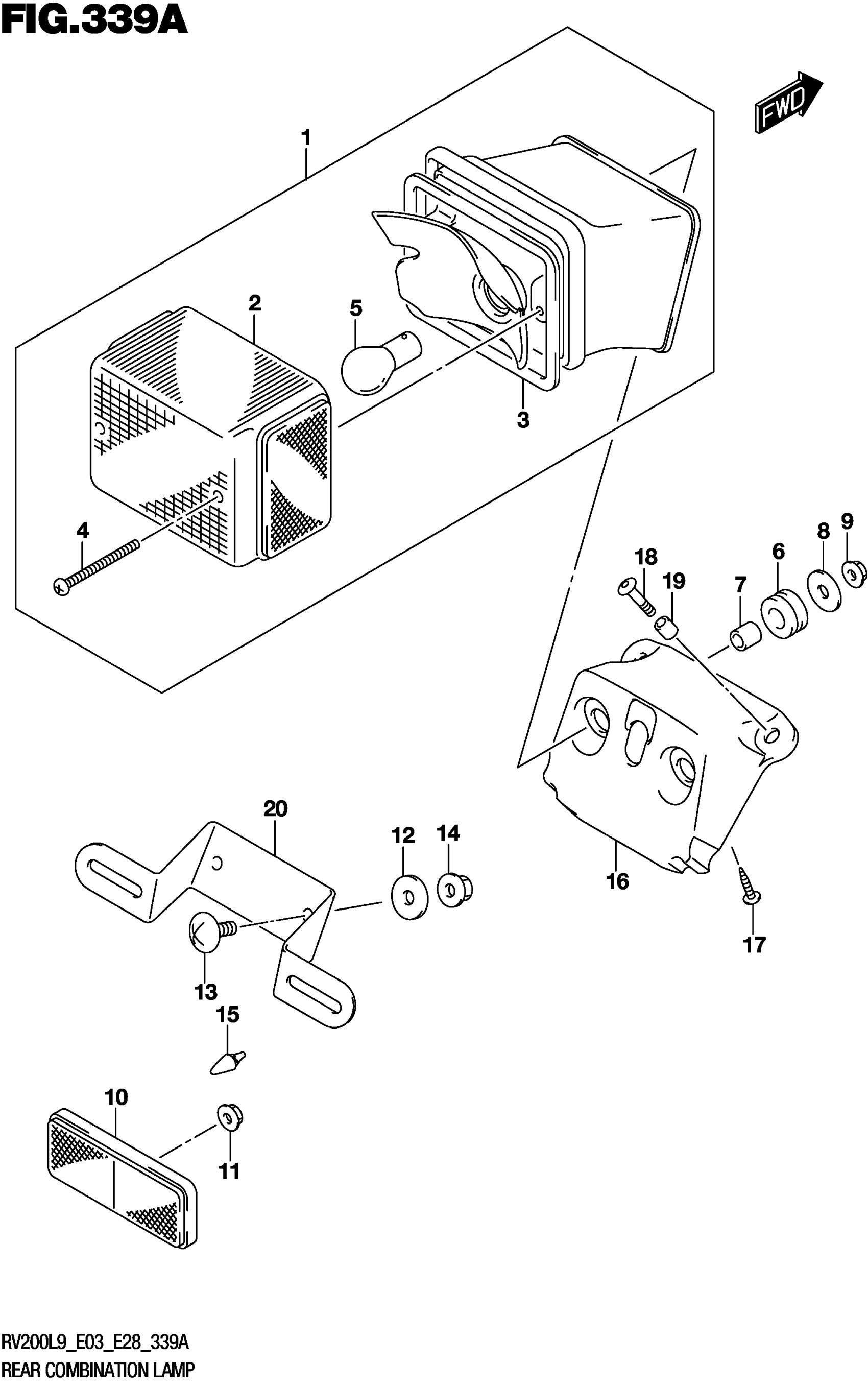

Suzuki RV200L9 (2019) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY REAR COMB

35710-29F30

$110.25

2

.LENS

35712-42A30

$68.03

3

.GASKET LENS

35713-14D30

$8.91

4

.SCREW (4X45)

09125-04501

$3.00

5

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.26

6

CUSHION

09320-10501

$5.00

7

SPACER (6.5X10X10)

09180-06310

$1.99

8

.WASHER (6.5X20X1.6)

09160-06088

$1.73

9

NUT (6X12)

08316-1006A

$2.25

10

REFLECTOR ASSY,RR

35970-07F01

$19.97

11

NUT

08316-1005B

$2.58

12

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06079.

09160-06052

$1.49

13

SCREW

02142-0616A

$1.41

14

NUT (6X12)

08316-1006A

$2.25

15

CUSHION This part replaces 09321-06028.

09321-06038

$2.05

16

COVER, REAR COMB LAMP

63251-13G00

$16.00

17

SCREW

03541-0620B

Unavailable

18

SCREW (6X20)

09139-06028

$3.44

19

SPACER (6.5X9X8)

09180-06261

$1.97

20

BRACKET, LICENSE PLATE

35927-13G00

$29.95
