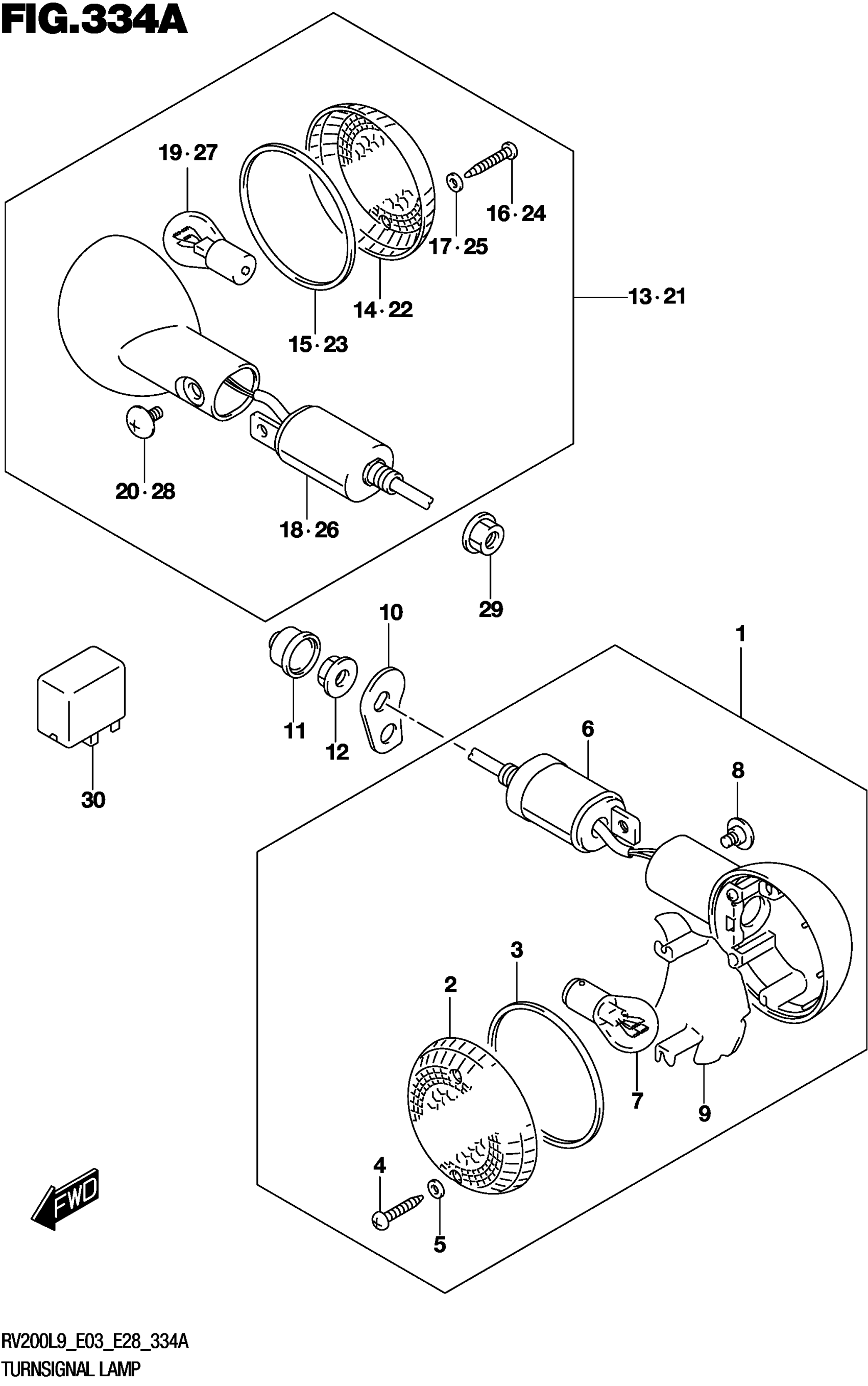

Suzuki RV200L9 (2019) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY

35601-33D30

$160.20

2

.LENS

35612-38A01

$13.59

3

.GASKET

35613-38A00

$10.99

4

.SCREW

03211-0425B

$2.95

5

.GASKET

35627-43010

$2.29

6

.STAY

35619-45C10

$56.47

7

.BULB (12V21W)

09471-12045

$3.06

8

.SCREW

35623-38A01

$4.97

9

.REFLECTOR

35624-38A20

Unavailable

10

BRACKET, FRONT TURN

35671-13G50

$3.62

11

COVER

35698-01480

$5.75

12

NUT

08316-1010A

$2.95

13

LAMP ASSY, REAR TURN RH

35603-33DC0

$145.32

14

.LENS

35652-38A21

$15.43

15

.GASKET

35613-38A00

$10.99

16

.SCREW

03211-0425B

$2.95

17

.GASKET

35627-43010

$2.29

18

.STAY

35619-45C10

$56.47

19

.BULB (12V21W)

09471-12045

$3.06

20

.SCREW

35623-38A01

$4.97

21

LAMP ASSY, REAR TURN LH

35604-33DC0

$138.22

22

.LENS

35652-38A21

$15.43

23

.GASKET

35613-38A00

$10.99

24

.SCREW

03211-0425B

$2.95

25

.GASKET

35627-43010

$2.29

26

.STAY

35619-45C10

$56.47

27

.BULB (12V21W)

09471-12045

$3.06

28

.SCREW

35623-38A01

$4.97

29

NUT

08316-1010A

$2.95

30

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$85.27
