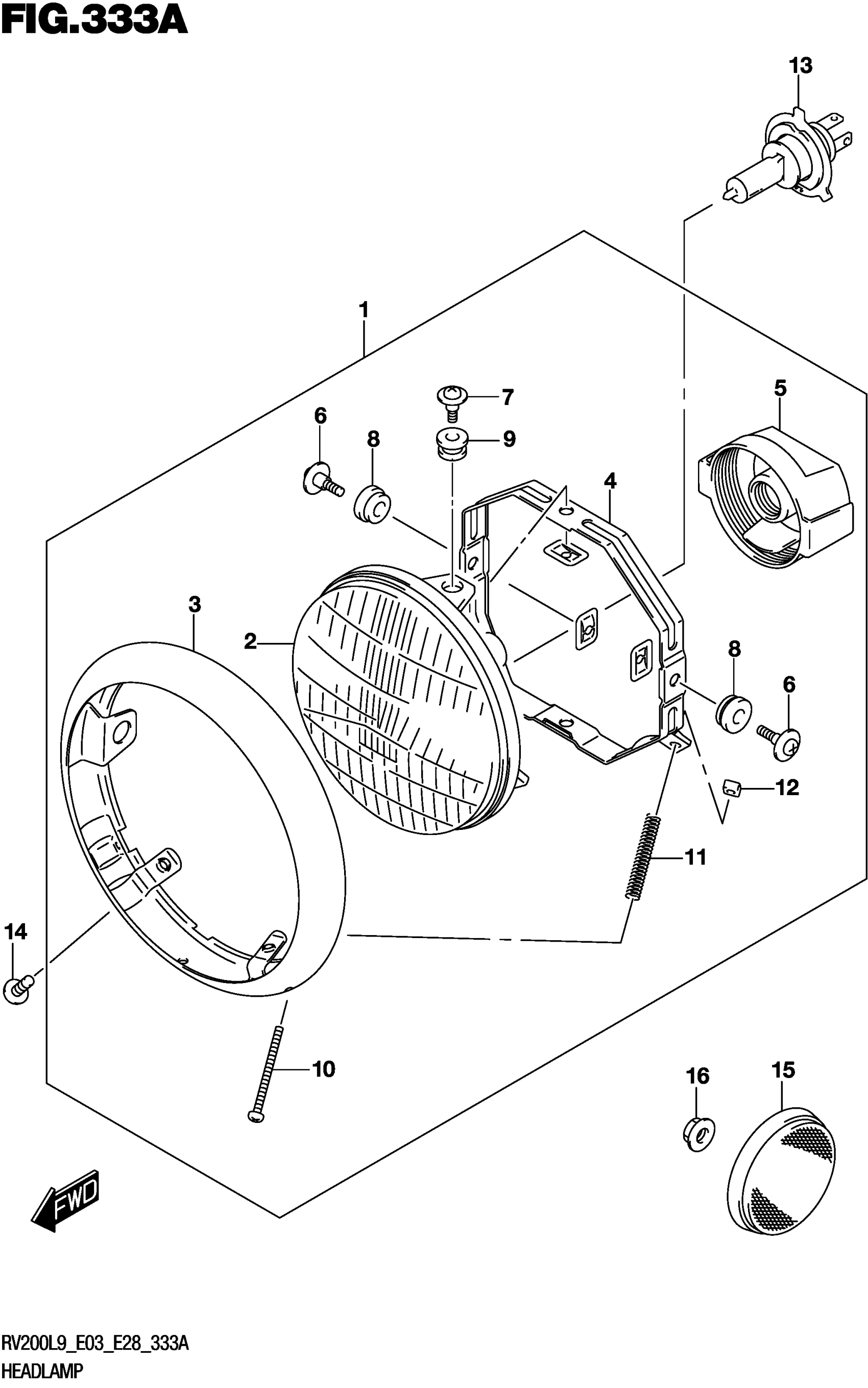

Suzuki RV200L9 (2019) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY This part replaces 35100-38AH0-999.

35100-38A62-999

$308.58

2

.UNIT

35121-38A60

$171.60

3

.RIM

35111-38A60

$54.45

4

.RING

35130-38A00

$19.68

5

.COVER

35173-13E10

$27.95

6

.SCREW MOUNTING

35136-38A00

$4.53

7

.SCREW

35136-38A60

Unavailable

8

.CUSHION

35139-45230

$2.25

9

...CUSHION

35139-38A60

$4.62

10

.SCREW

35151-38A00

$4.10

11

SPRING

35154-31300

$3.64

12

.NUT

35152-45600

$3.92

13

.BULB (12V60/55W,H4)

09471-12060

$23.37

14

SCREW, WINDOW SIDE

09139-05021

$1.55

15

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$14.56

16

NUT

08316-1005B

$2.58
