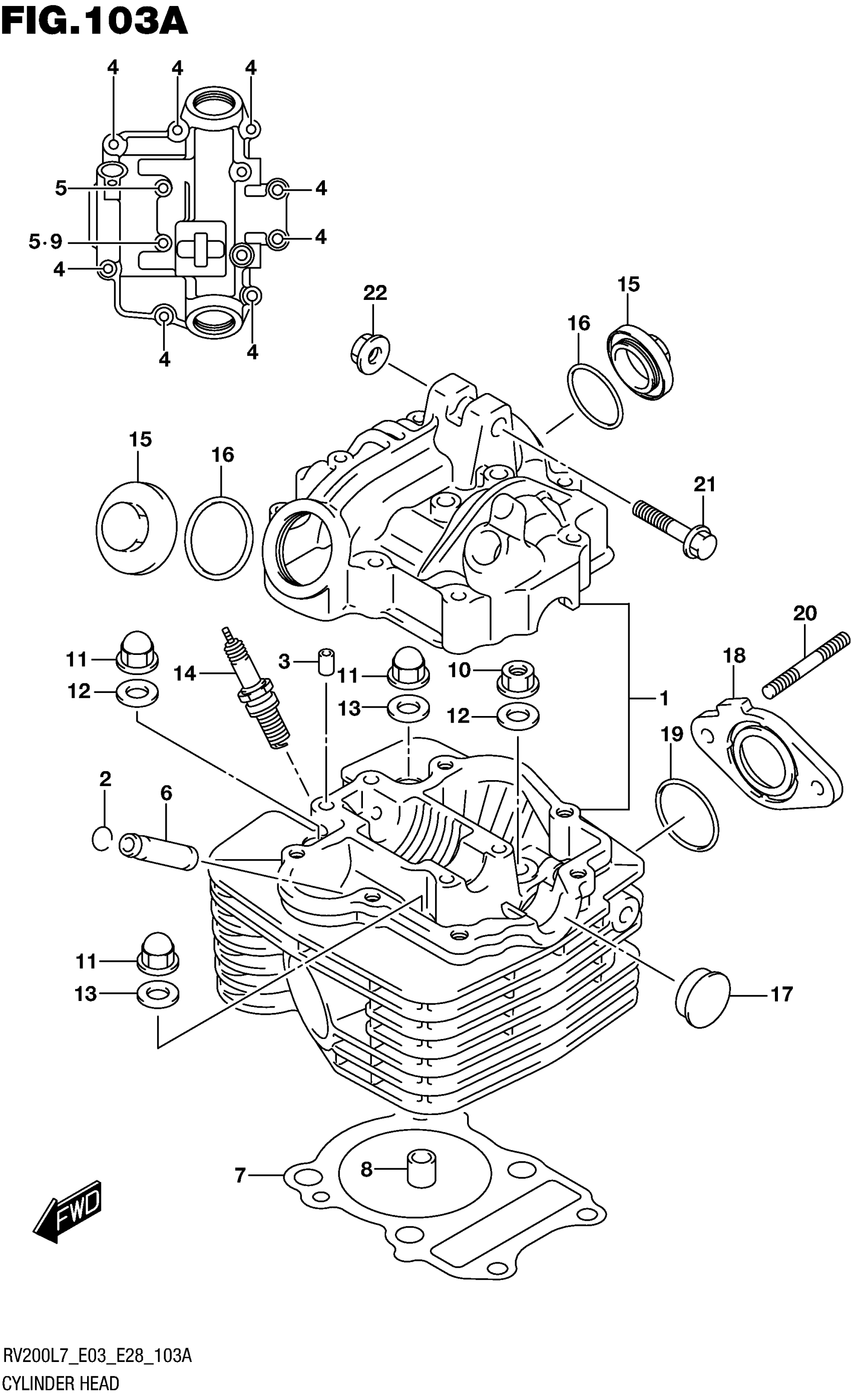

Find the part on the Cylinder Head diagram for your 2017 Suzuki RV200L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki RV200L7 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER

11100-42A70

1
Out of stock

2

.RING (10X85)

09381-10004

2
Out of stock

3

.PIN (8X11)

09206-08001

2
Out of stock

4

BOLT

01550-0635A

8
Out of stock

5

.BOLT

01550-0660A

2
Out of stock

6

GUIDE, VALVE (0S:0.3)

11115-05270

2
Out of stock

7

GASKET, CYLINDER HEAD

11141-42A00

1
Out of stock

8

PIN

04211-11169

2
Out of stock

9

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

10

NUT

08316-1008A

1
Out of stock

11

NUT

09159-08049

3
Out of stock

12

WASHER (8.5X19X2.3)

09160-08039

2
Out of stock

13

GASKET (8.5X17X2.3)

09168-08021

2
Out of stock

14-1

SPARK PLUG (X24ESR-U) | DENSO

09482-00223

1
Out of stock

14-2

SPARK PLUG (DR8EA) | NGK

09482-00399

1
Out of stock

15

CAP INSPECTION This part replaces 11175-18900.

11175-18920

2
Out of stock

16

.O RING (D:3,ID:29.5)

09280-30001

2
Out of stock

17

PLUG (OD:22.5)

09241-22002

1
Out of stock

18

INSULATOR, THROTTLE BODY

13128-13GA0

1
Out of stock

19

O RING (D:1.9,ID:34.6)

09280-35001

1
Out of stock

20

STUD BOLT

01421-0620A

2
Out of stock

21

BOLT (8X55)

09103-08519

—
Out of stock

22

NUT

08319-3108A

1
Out of stock
