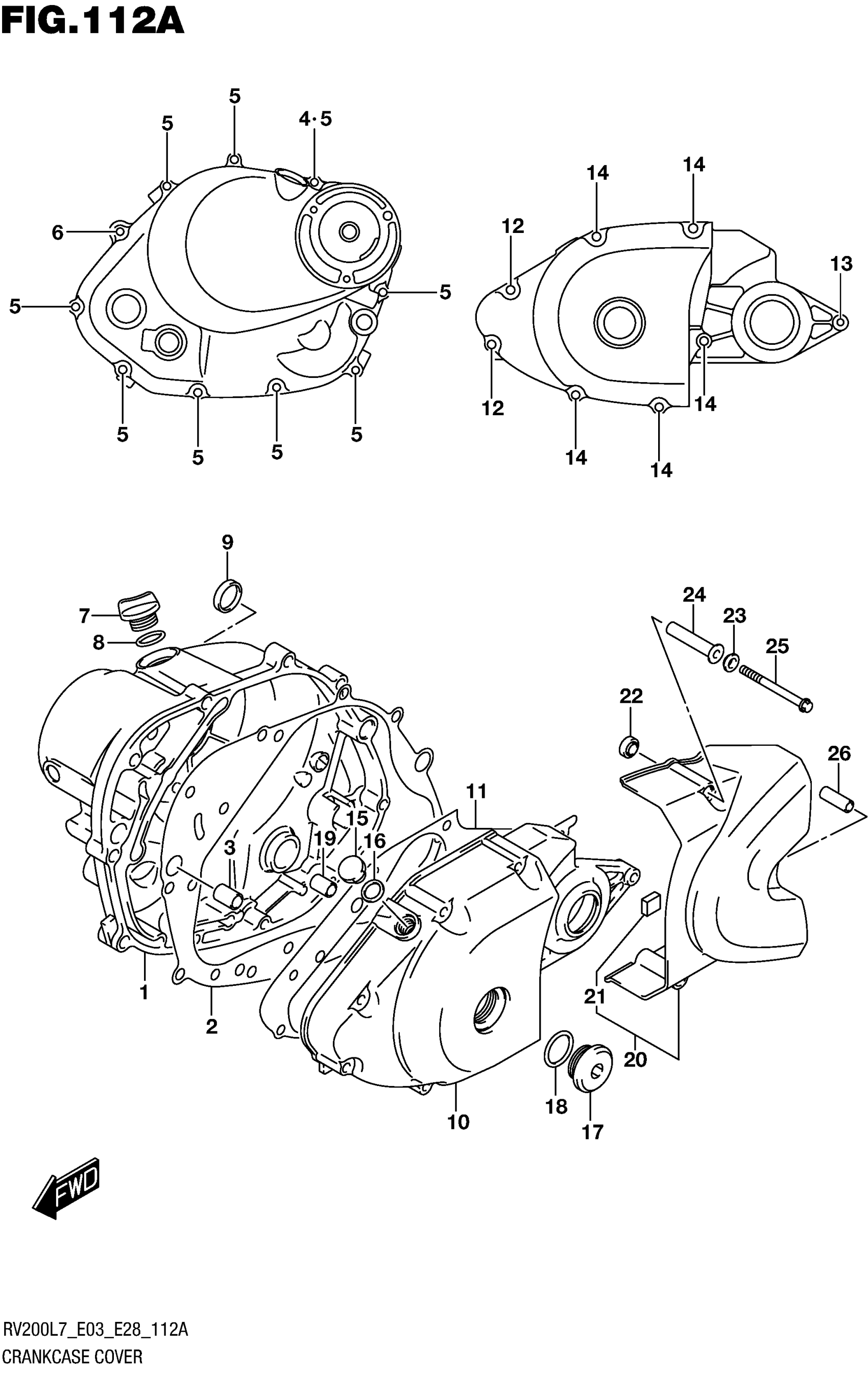

Suzuki RV200L7 (2017) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11340-42A70

Unavailable

2

.GASKET, CLUTCH COVER

11482-05211

$11.74

3

PIN

04211-13189

$2.19

4

GASKET (5.8X13X1.2)

09168-06023

$2.01

5

BOLT

01547-0630A

$2.31

6

BOLT

01547-0645A

$2.43

7

PLUG,ENGINE OIL FILLER

11971-25D00

$4.67

8

O RING (D:3.1,ID:16.8)

09280-17003

$1.64

9

PLUG, CLUTCH COVER KICK

11342-12C51

$12.02

10

COVER, MAGNETO

11351-13G10

$170.32

11

GASKET, MAGNETO COVER

11483-13G00

$10.97

12

BOLT

01547-0640A

$2.31

13

BOLT (6X45)

09103-06293

$2.55

14

BOLT

01547-0650A

$2.51

15

PLUG (12X9)

09247-12104

$2.73

16

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

17

PLUG (26X9)

09259-26011

$9.96

18

O RING (D:3.1,ID:22.7)

09280-22008

$2.10

19

PIN

04211-09129

$1.64

20

COVER, ENGINE SPROCKET

11361-13G20

$62.05

21

.DAMPER, SPROCKET COVER NO.1

11362-13G00

$2.43

22

WASHER (8.7X16X5)

09161-09005

$2.33

23

WASHER (8.7X15X2.1)

09161-09006

$2.36

24

SPACER (6.5X9X47.1)

09180-06321

$7.03

25

BOLT

01547-0660A

$2.80

26

DAMPER,SPROCKET This part replaces 11363-13G00.

11363-13G01

$2.17
