Description

Price

1

CAMSHAFT This part replaces 12711-13G00.

12711-13G01

$164.28

2

SPROCKET, CAMSHAFT (NT:32)

12741-05201

$25.93

3

PIN (5X8)

09261-05005

$1.43

4

WASHER, SPROCKET

12747-05202

$2.53

5

BOLT (6X10.5)

09100-06166

$3.30

6

C-RING

09390-22002

$2.33

7

ARM, VALVE ROCKER

12840-25C10

$61.78

8

.SCREW, TAPPET ADJUSTING

12842-32411

$4.93

9

.NUT, ADJUSTING SCREW

12843-32400

$2.80

10

SHAFT, VALVE ROCKER ARM

12861-05201

$22.25

11

.O RING (D:1.9,ID:8.6)

09280-09005

$3.33

12

WASHER

09164-12021

$2.01

13

GASKET (5.8X13X1.2)

09168-06023

$2.01

14

SCREW

02162-0625A

$1.68

15

VALVE, INTAKE

12911-42A00

$49.30

16

VALVE, EXHAUST

12912-42A00

$59.75

17

SPRING SET, VALVE

12920-05210

$12.95

18

RETAINER, VALVE SPRING

12931-49201

$6.51

19

COTTER, VALVE

12932-24400

$1.98

20

SEAT, VALVE SPRING

12933-49201

$5.50

21

OIL SEAL (5.5X11X8.2)

09289-05015

$6.04

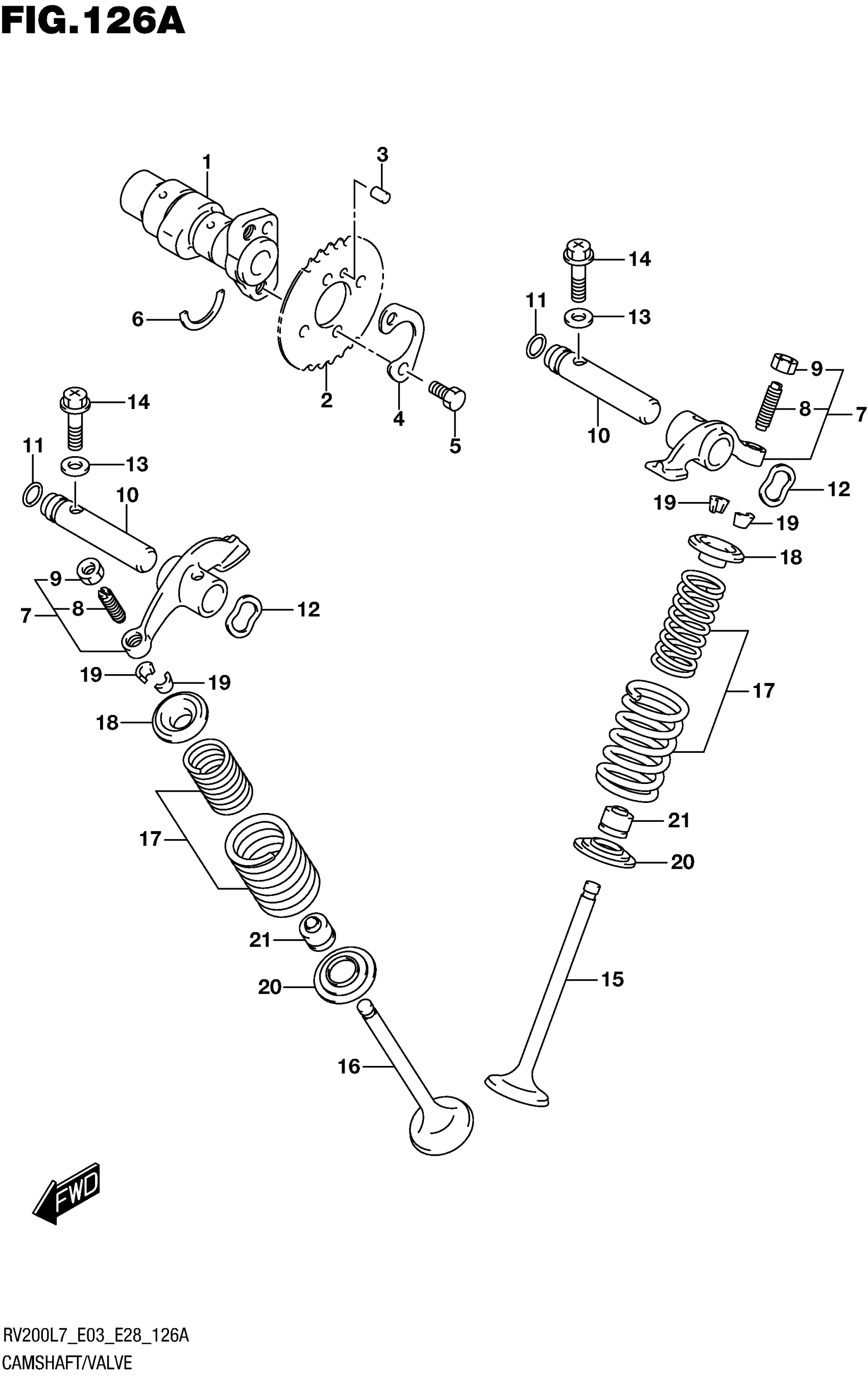

Suzuki RV200L7 (2017) CAMSHAFT/VALVE Diagram
