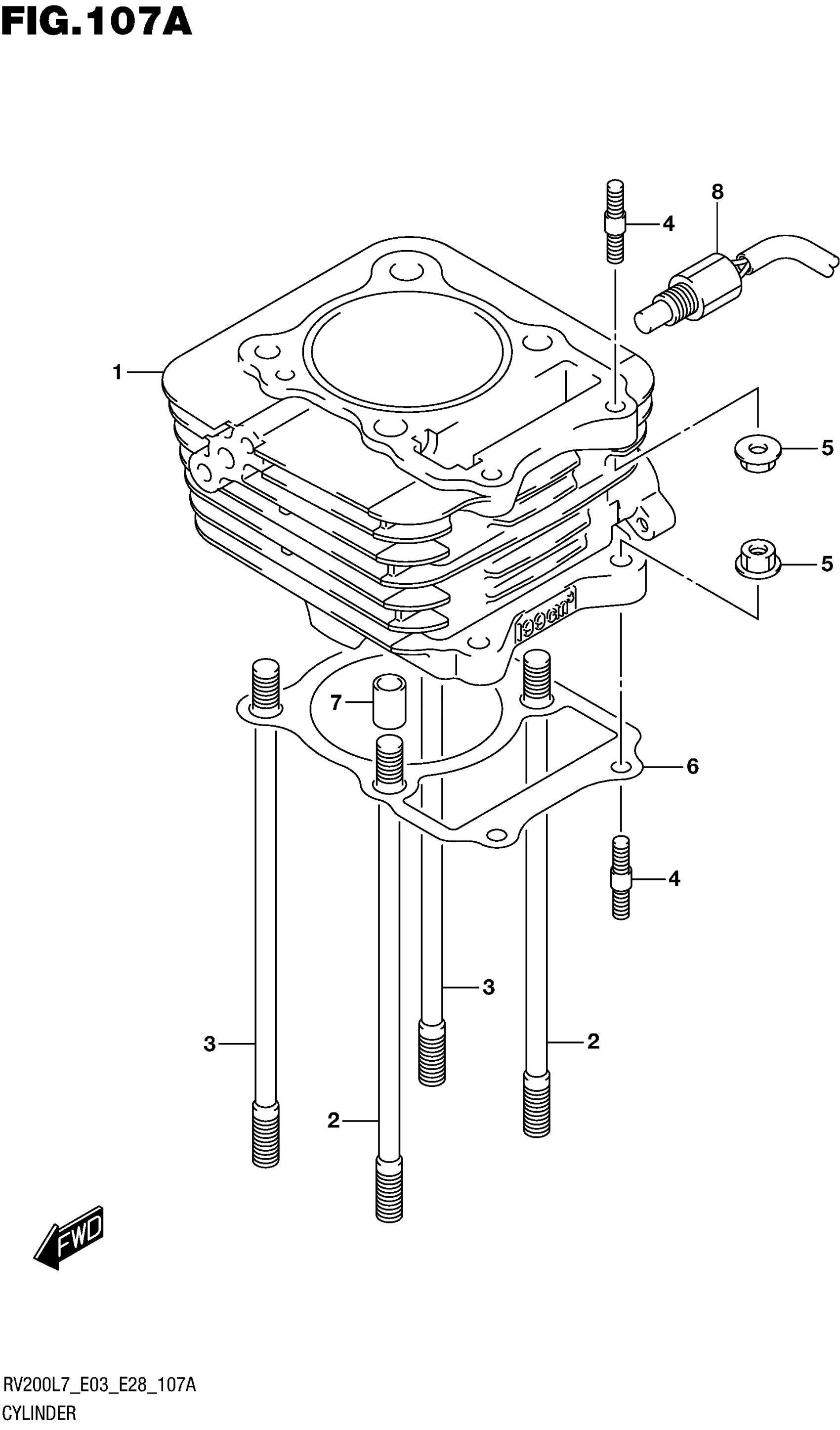

Suzuki RV200L7 (2017) CYLINDER Diagram

#

Description

Price

1

CYLINDER

11211-42A70-0F0

Unavailable

2

STUD BOLT

09108-08195

$5.09

3

STUD BOLT (8X167)

09108-08184

$5.49

4

STUD BOLT

01421-0625A

$2.00

5

NUT

08316-1006A

$2.19

6

GASKET, CYLINDER

11241-42A10

$5.17

7

PIN

04211-11149

$1.77

8

SENSOR,ENGINE TEMP This part replaces 13640-32G00.

13640-32G01

$46.36
