1972 Yamaha RT2MX (RT2MX) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1972 Yamaha RT2MX (RT2MX), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

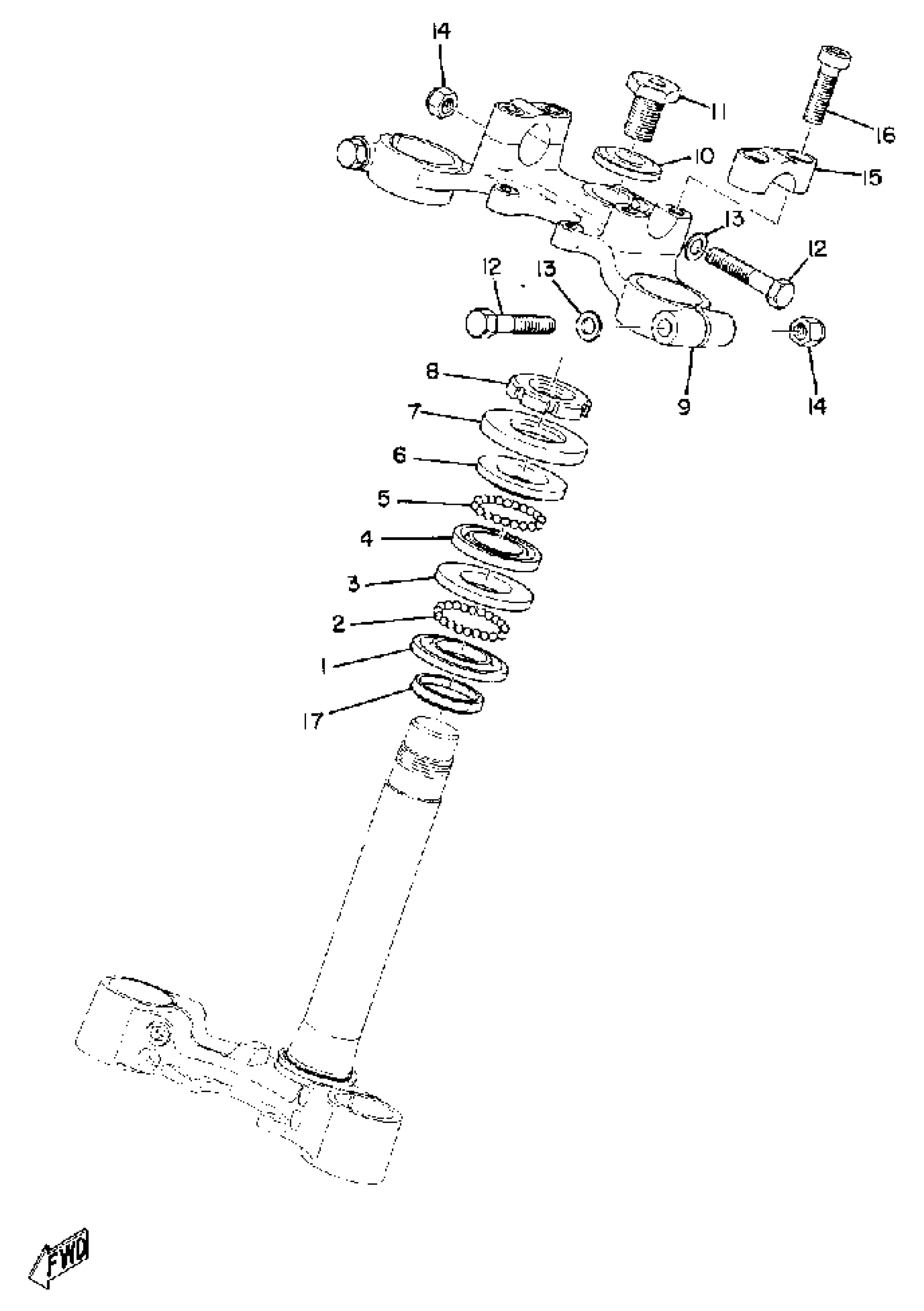

1972 Yamaha RT2MX (RT2MX) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RACE, BALL 1

B6E-23411-00-00

1

$7.02

In stock

2

BALL

93501-04011-00

1
Out of stock

3

RACE, BALL 2

B6E-23412-00-00

1

$9.71

In stock

4

RACE, BALL 2

BP2-23412-00-00

1

$5.71

In stock

5

BALL

93503-16003-00

1

$2.14

In stock

6

RACE, BALL 1

BP2-23411-00-00

1

$8.40

In stock

7

COVER, BALL RACE

122-23416-00-00

1

$6.40

In stock

8

NUT

90179-25004-00

1

$20.78

In stock

9

CROWN, HANDLE

(321-23435-01-98)

1
Out of stock

10

WASHER, SPECIAL SHAPE

90209-14022-00

1
Out of stock

11

BOLT (322-23451-00)

90109-14235-00

1
Out of stock

12

BOLT (663)

97013-08060-00

1

$3.25

In stock

13

WASHER, PLATE 1562722600

90201-08083-00

1
Out of stock

14

NUT, U

95617-08100-00

1

$6.78

In stock

15

HOLDER, HANDLE UPR

(322-23441-01-98)

1
Out of stock

16

BOLT, SOCKET HEAD

(91390-08030-00)

1
Out of stock

17

SEAL, DUST

164-23462-00-00

—

$6.42

In stock
