REAR WHEEL

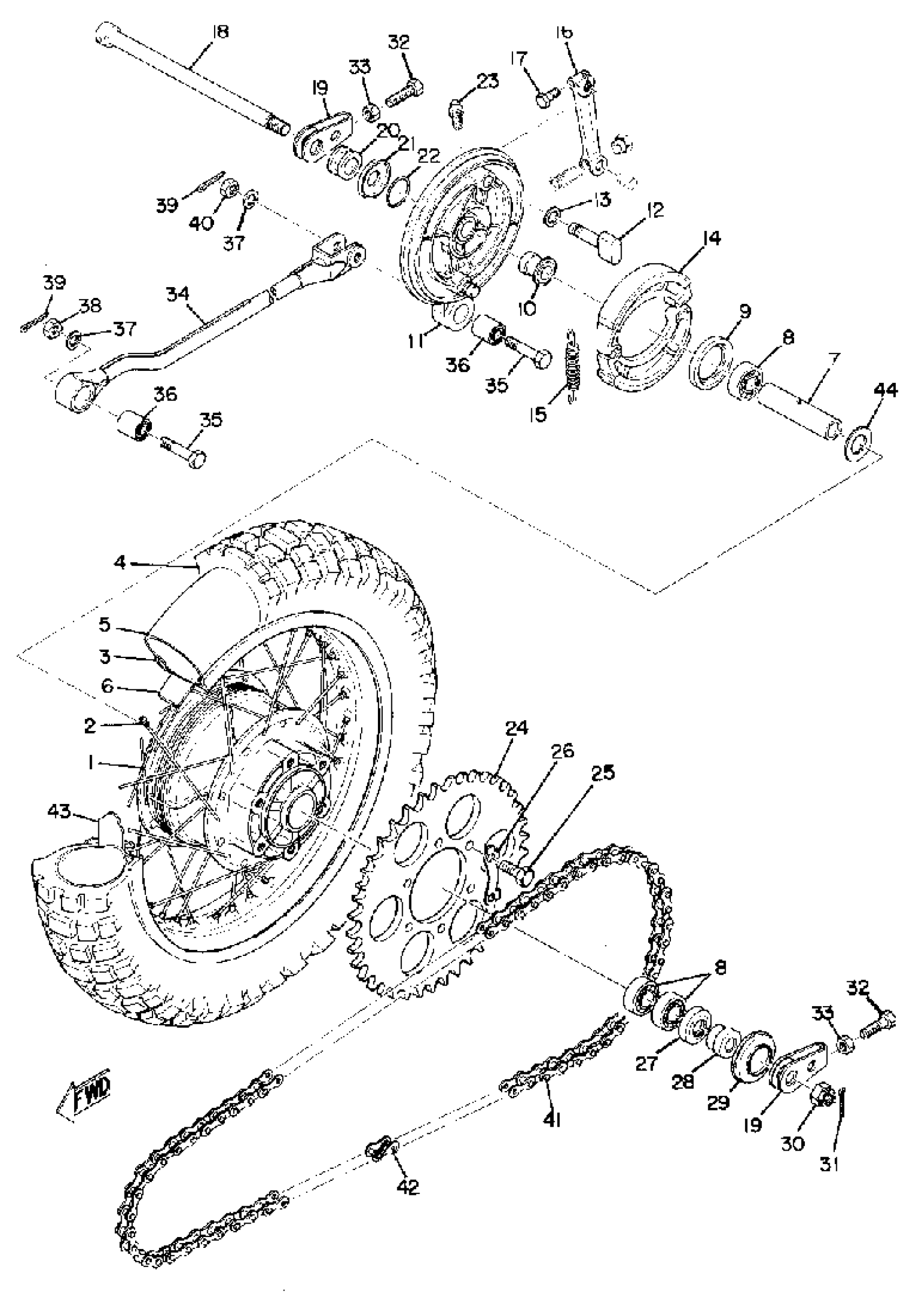

1972 Yamaha RT2MX (RT2MX) Rear Wheel Diagram
Find the part on the Rear Wheel diagram for your 1972 Yamaha RT2MX (RT2MX), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
HUB, REAR
(322-25311-00-00)
2
SPOKE SET, REAR
322-25304-00-00
2
SPOKE SET, INNER 1
(322-25391-90-00)
2
SPOKE SET, OUTER 1
(322-25392-90-00)
2
SPOKE SET, INNER 2
(322-25396-90-00)
2
SPOKE SET, OUTER 2
(322-25397-90-00)
3
RIM 1.85X18
(94418-18061-00)
4
400X18 YOKO Y612
(94140-18070-00)
7
SPACER
90560-17311-00
9
OIL SEAL, SO-TYPE
(93104-46029-00)
10
COLLAR
(90387-17450-00)
11
BRAKE SHOE PLT ASSEMBLY
(438-25320-10-00)
12
CAMSHAFT
214-25351-01-00
14
BRAKE SHOE KIT
3GW-W253A-00-00
16
. LEVER, CAMSHAFT (168-25355-00)
4V5-25355-00-00
18
AXLE,WHEEL
150-25381-01-00
19
PULLER,CHAIN 2
12R-25389-00-00
20
COLLAR(3SX)
90387-170X9-00
21
COVER, PLATE
275-25327-00-00
24
SPROCKET, DRIVN 51T
322-25451-00-00
27
OIL SEAL, DD-TYPE (DD-25-40-9)
93106-25003-00
28
COLLAR, SHAFT
90387-17140-00
29
COVER, DUST
275-25367-00-00
30
NUT, CASTLE
90171-16007-00
34
BAR, TENSION
(321-25371-00-33)
35
BOLT, WITH HOLE
(90102-10007-00)
36
BUSH 1
(275-22123-00-00)
41
520 DS 106L
94585-20106-00
42
. JOINT CHAIN
94680-11001-00
