1972 Yamaha RT2MX (RT2MX) C-D-I Magneto Assembly Diagram

← All diagrams

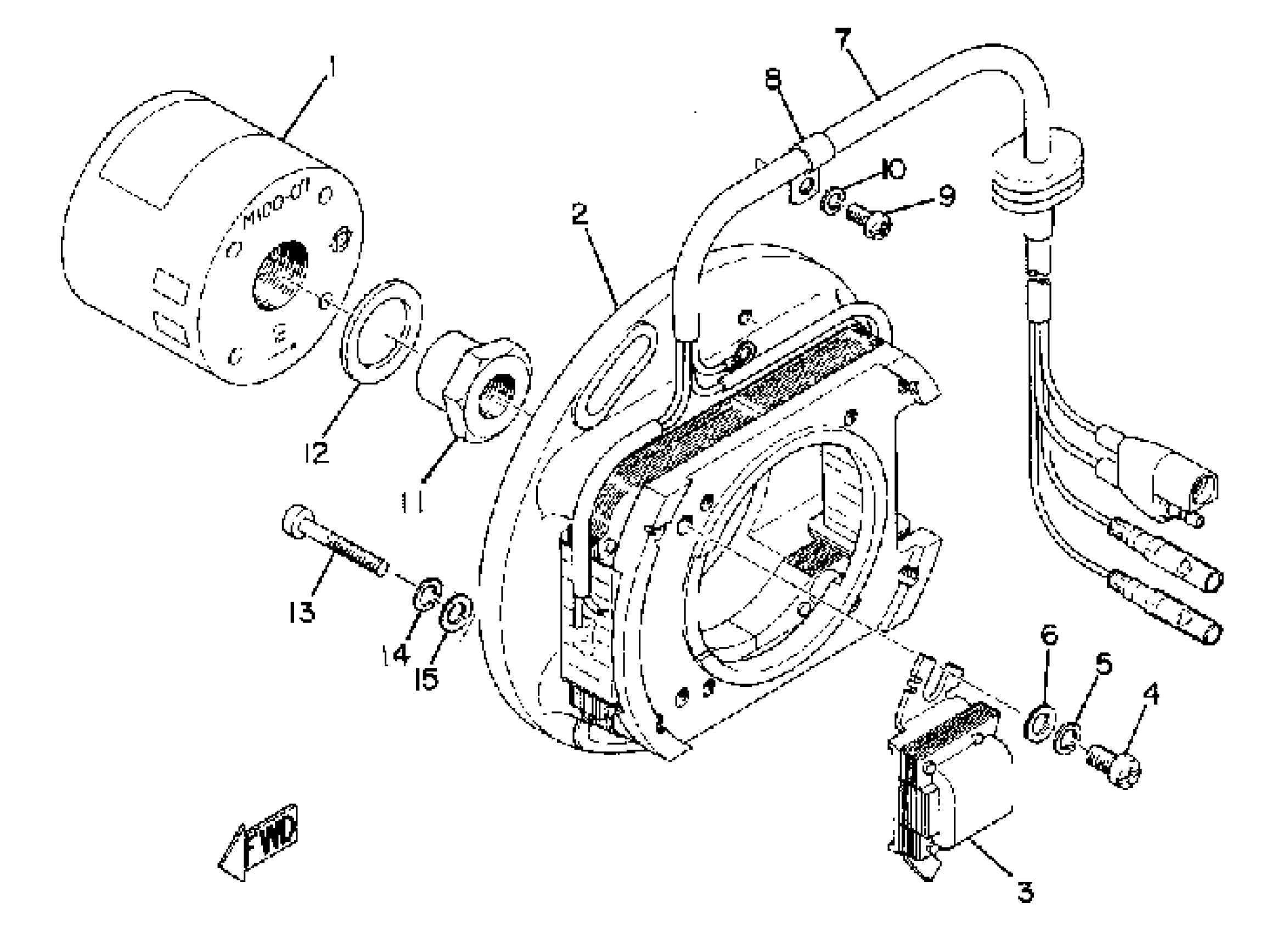

Find the part on the C-D-I Magneto Assembly diagram for your 1972 Yamaha RT2MX (RT2MX), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha RT2MX (RT2MX) C-D-I Magneto Assembly Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI MAGNETO ASSEMBLY

(322-85500-10-00)

1
Out of stock

1

ROTOR ASSEMBLY

(322-85550-10-00)

1
Out of stock

2

ROTOR ASSEMBLY

(322-85550-10-00)

1
Out of stock

3

COIL PULSER

(322-85543-10-00)

1
Out of stock

4

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

7

LEAD WIRE ASSEMBLY

(322-85515-10-00)

1
Out of stock

8

. CLAMP

109-81328-11-00

1
Out of stock

9

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

10

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

11

. NUT, ROTOR

322-85553-10-00

1
Out of stock

12

. WASHER, ROTOR

322-85554-10-00

1
Out of stock

13

SCREW, PAN HEAD(6E5)

97880-06018-00

1

$4.19

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock
