1972 Yamaha RT2MX (RT2MX) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1972 Yamaha RT2MX (RT2MX), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

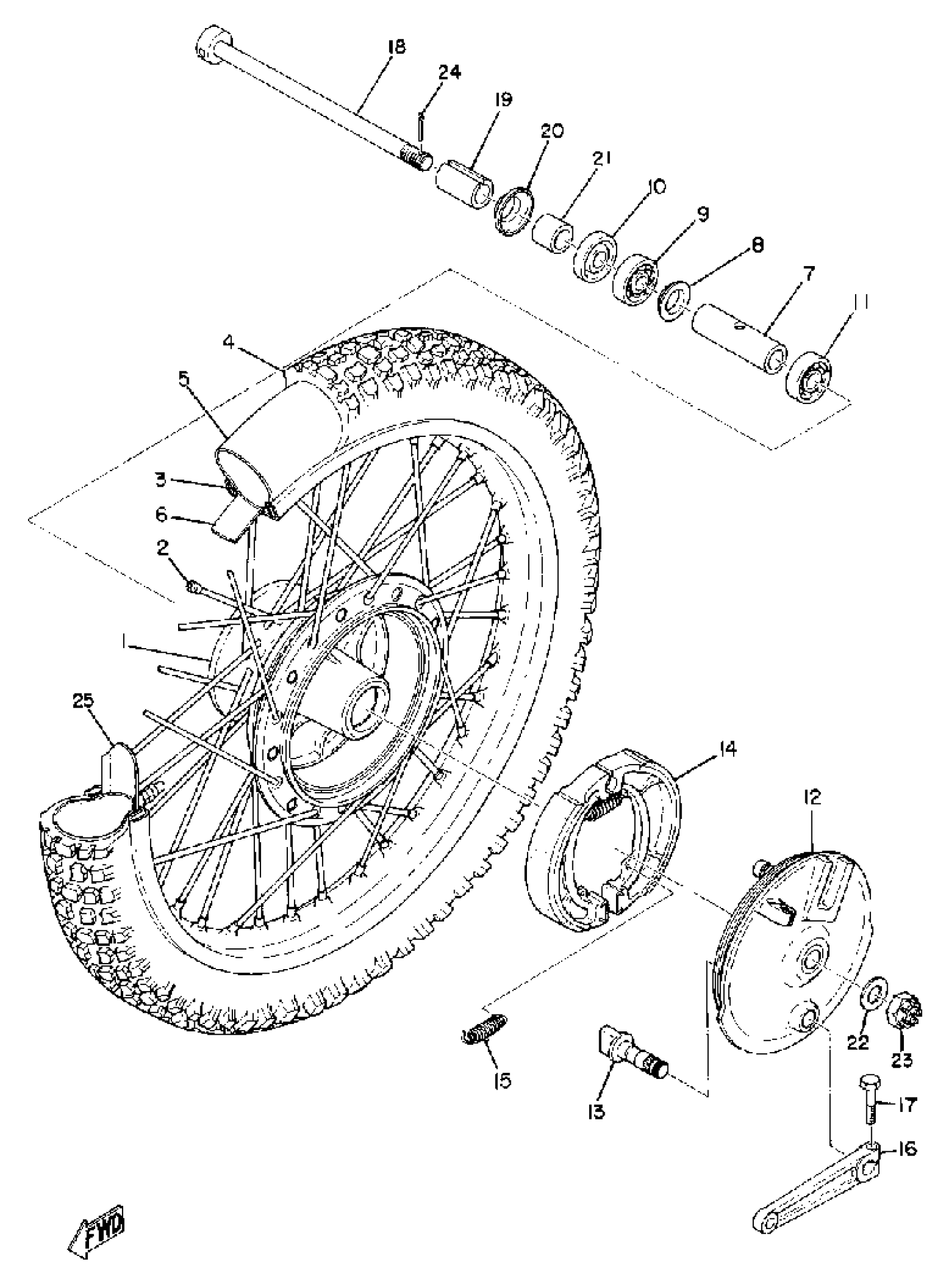

1972 Yamaha RT2MX (RT2MX) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(322-25111-00-00)

1
Out of stock

2

SPOKE SET, FRONT

(322-25104-01-00)

1
Out of stock

2

SPOKE SET, OUTER 2

(322-25189-90-00)

1
Out of stock

2

SPOKE SET, INNER 1

(322-25196-90-00)

1
Out of stock

2

SPOKE SET, OUTER 1

(322-25197-90-00)

1
Out of stock

2

UNAVAILABLE IN PRICE BOOK

322-27191-90-00

1
Out of stock

3

RIM 1.60X21

94416-21234-00

1
Out of stock

4

300-21 M1B (TT)

(94130-213A4-00)

1
Out of stock

5

TUBE, FRONT (2A6)

94227-21123-00

1

$43.59

In stock

6

UNAVAILABLE IN PRICE BOOK

94307-21024-00

1
Out of stock

7

SPACER

90560-15116-00

1
Out of stock

8

FLANGE, SPACER

146-25116-00-00

1
Out of stock

9

BRG, R-B (7H4)

93306-20211-00

1

$22.05

In stock

10

OIL SEAL (20X35X7-136)

93102-20009-00

1

$9.10

In stock

11

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

1

$21.28

In stock

12

PLATE, BRAKE SHOE

(322-25121-00-00)

1
Out of stock

13

CAMSHAFT

23X-25151-00-00

1
Out of stock

14

BRAKE SHOE KIT

322-W253A-10-00

—

$31.99

In stock

15

SPRING (5T9)

90506-17328-00

—

$9.32

In stock

16

LEVER, CAMSHAFT 1

322-25155-00-00

1
Out of stock

17

BOLT(JF7)

97080-06030-00

—

$3.45

In stock

18

AXLE, WHEEL

275-25181-00-00

1
Out of stock

19

COLLAR (322-25186-00)

90387-15116-00

1
Out of stock

20

COVER, HUB DUST

322-25118-00-00

—

$16.17

In stock

21

COLLAR (322-25183-00)

90387-15418-00

1
Out of stock

22

WASHER, PLAIN

92990-14200-00

—

$1.71

In stock

23

NUT, CASTLE(2UJ)

90171-14056-00

—

$10.57

In stock

24

PIN, COTTER

91490-30030-00

—

$7.15

In stock

25

SPACER, BEAD

1T1-25194-00-00

—

$53.98

In stock
