1972 Yamaha RT2MX (RT2MX) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1972 Yamaha RT2MX (RT2MX), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

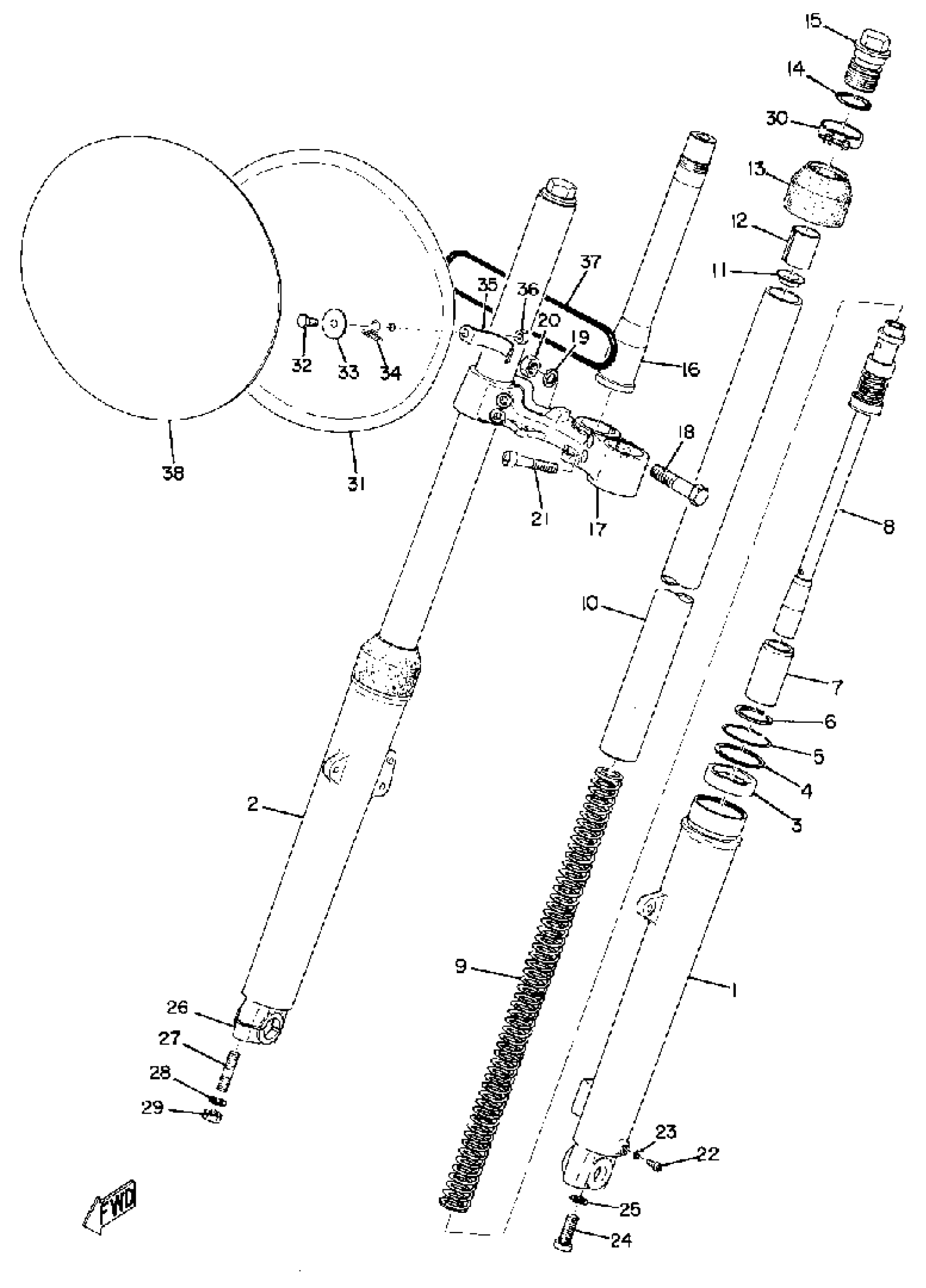

1972 Yamaha RT2MX (RT2MX) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TUBE, OUTER 1

(291-23126-60-00)

1
Out of stock

1

UNAVAILABLE IN PRICE BOOK

322-23102-00-00

1
Out of stock

2

TUBE, OUTER 2

(291-23136-60-00)

1
Out of stock

3

OIL SEAL

584-23145-50-00

1

$52.72

In stock

4

.. WASHER, OIL SEAL

214-23146-00-00

1
Out of stock

5

.. CLIP, OIL SEAL

214-23156-00-00

1
Out of stock

6

. CIRCLIP, INNER

93450-30033-00

1
Out of stock

7

PISTON, FRONT FORK

(322-23171-00-00)

1
Out of stock

8

CYLINDER, FRTFRK

(322-23170-01-00)

1
Out of stock

9

SPRING, FRONT FORK

(363-23141-01-00)

1
Out of stock

10

UNAVAILABLE IN PRICE BOOK (322-23124-01)

363-23124-01-00

1
Out of stock

11

. SEAT, SPRING UPPER

278-23142-50-00

1
Out of stock

13

. SEAL, DUST

292-23144-00-00

1
Out of stock

14

. GASKET

214-23114-00-00

1
Out of stock

15

BOLT, CAP

(291-23111-60-00)

1
Out of stock

16

SHAFT, STEERING

(1E6-23341-00-00)

1
Out of stock

17

BRACKET, LOWER

(322-23345-00-33)

1
Out of stock

18

BOLT 2

(322-23356-00-00)

1
Out of stock

19

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

20

NUT

(322-23357-00-00)

1
Out of stock

21

BOLT 1

(322-23346-00-00)

1
Out of stock

22

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

23

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

24

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

25

GASKET

509-23158-L0-00

—

$14.34

In stock

26

. HOLDER, AXLE (291-23167-60)

291-23167-61-00

1
Out of stock

27

BOLT, STUD (278)

90116-08261-00

—
Out of stock

28

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

29

NUT(6L2)

95333-08600-00

—

$3.20

In stock

30

CLAMP, HOSE

(90460-54061-00)

1
Out of stock

31

PLATE, NUMBER

322-23485-00-00

1
Out of stock

32

SCREW, OVAL FLSTR (322-23396-00)

90146-06007-00

1
Out of stock

33

WASHER, PLATE

90201-06086-00

—
Out of stock

34

HOLDER, CABLE 2

(322-23319-00-00)

1
Out of stock

35

STAY, PLATE

(318-23487-00-00)

1
Out of stock

36

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

37

O-RING (802)

93210-99103-00

—
Out of stock

38

EMBLEM

322-23395-00-00

1
Out of stock
