1972 Yamaha DT2 (RT2) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1972 Yamaha DT2 (RT2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

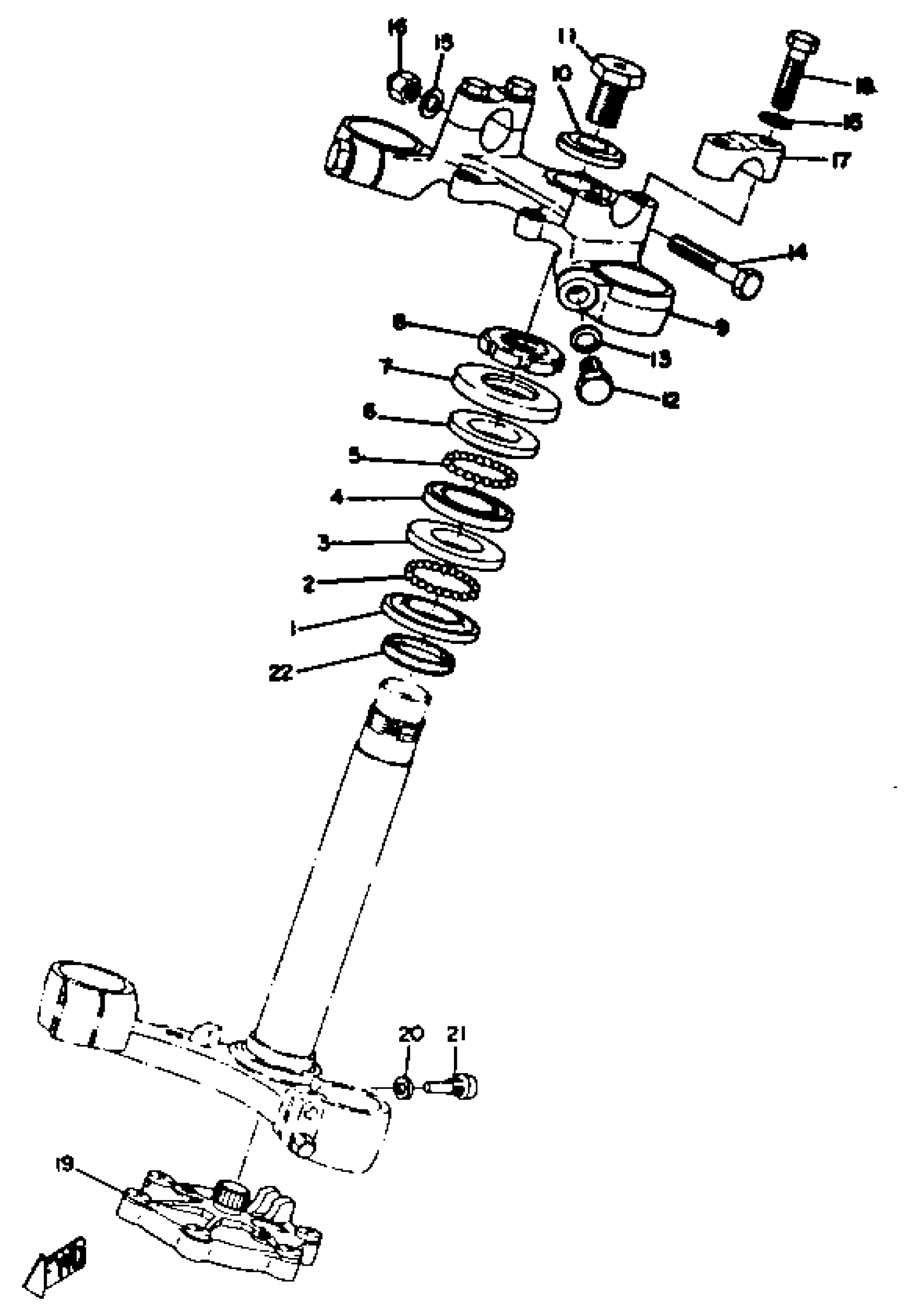

1972 Yamaha DT2 (RT2) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RACE, BALL 1

B6E-23411-00-00

1

$7.02

In stock

2

BALL

93501-04011-00

1
Out of stock

3

RACE, BALL 2

B6E-23412-00-00

1

$9.71

In stock

4

RACE, BALL 2

BP2-23412-00-00

1

$5.71

In stock

5

BALL

93503-16003-00

1

$2.14

In stock

6

RACE, BALL 1

BP2-23411-00-00

1

$8.40

In stock

7

COVER, BALL RACE

122-23416-00-00

1

$6.40

In stock

8

NUT

90179-25004-00

1

$20.78

In stock

9

CROWN, HANDLE

(275-23435-02-33)

1
Out of stock

10

WASHER, SPECIAL SHAPE

90209-14022-00

1
Out of stock

11

BOLT

90101-14113-00

1
Out of stock

12

BOLT (8J7)

97013-10030-00

1

$8.91

In stock

13

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

14

BOLT

97013-08045-00

—
Out of stock

15

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

16

NUT, CROWN

95303-08800-00

—

$7.52

In stock

17

HOLDER, HANDLE UPR

(315-23441-00-93)

1
Out of stock

18

BOLT, HEXAGON

97013-08030-00

—

$3.20

In stock

19

HDLBR SMY DMPR ASSEMBLY

5G2-23490-00-00

1
Out of stock

20

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

21

BOLT

(214-23492-00-00)

1
Out of stock

22

SEAL, DUST

164-23462-00-00

—

$6.42

In stock
