FRONT WHEEL

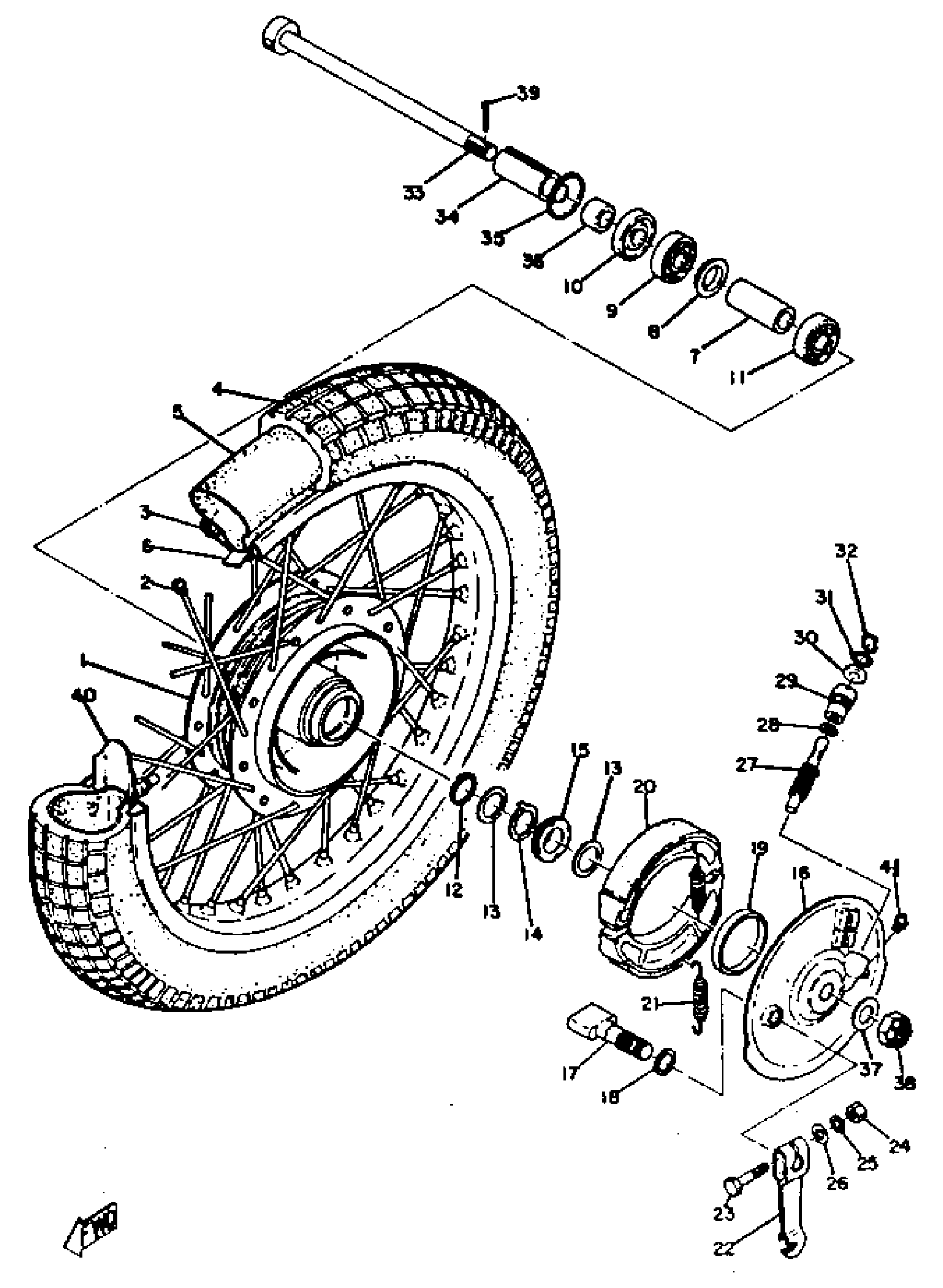

1972 Yamaha DT2 (RT2) Front Wheel Diagram
Find the part on the Front Wheel diagram for your 1972 Yamaha DT2 (RT2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
SPOKE SET, INNER 1
(214-25196-80-00)
1
SPOKE SET, INNER 1
(214-25196-90-00)
1
HUB, FRONT
(227-25111-00-00)
2
SPOKE SET, FRONT
(214-25104-00-00)
2
SPOKE SET, FRONT
(214-25104-10-00)
2
SPOKE SET, OUTER 1
(214-25197-80-00)
2
SPOKE SET, OUTER 1
(214-25197-90-00)
3
RIM 1.60X19
(94416-19035-00)
3
RIM 1.60X21
(94416-21038-00)
4
300-21 M1B (TT)
(94130-213A4-00)
4
325X19 DUNLP TRIAL
(94132-19063-00)
5
TUBE
(94232-19064-00)
6
BAND, RIM
(94327-21024-00)
7
SPACER(1EE)
90560-15293-00
8
FLANGE, SPACER
146-25116-00-00
15
GEAR, DRIVE
214-25135-00-00
15
GEAR, DRIVE
308-25135-00-00
16
BRAKE SHOE PLT ASSEMBLY
(438-25120-10-00)
17
CAMSHAFT
(214-25151-00-00)
18
WASHER PLATE 341251470000
90201-25286-00
20
BRAKE SHOE KIT
3GW-W253A-00-00
22
LEVER, CAMSHAFT 1
214-25155-01-00
27
GEAR, METER
308-25138-00-00
32
RING, STOP
102-25137-00-00
33
AXLE, WHEEL
275-25181-00-00
34
COLLAR
90387-15117-00
36
COLLAR
90387-157G5-00
