1972 Yamaha DT2 (RT2) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1972 Yamaha DT2 (RT2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

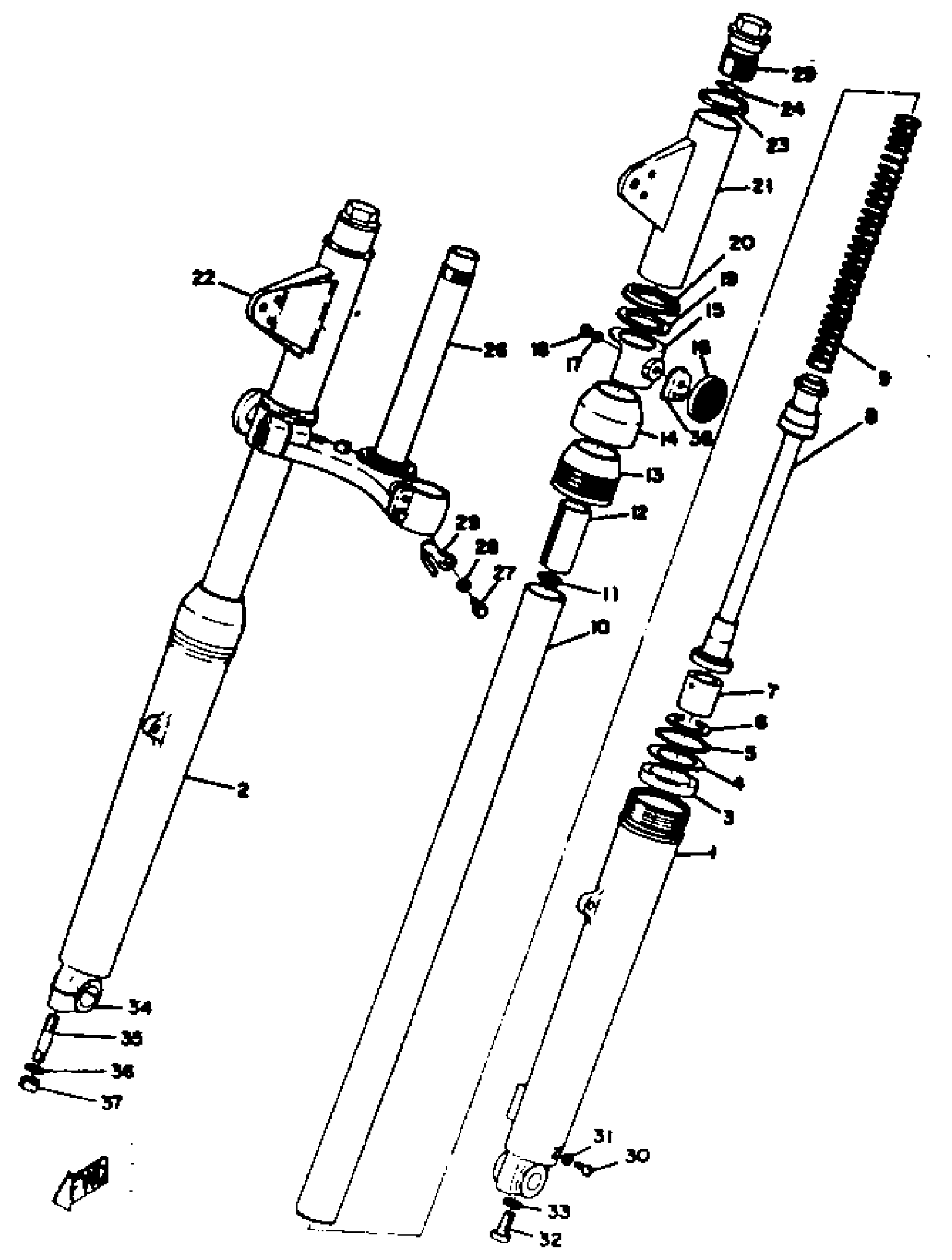

1972 Yamaha DT2 (RT2) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(291-23101-20-00)

1
Out of stock

1

TUBE, OUTER 1

(291-23126-60-00)

1
Out of stock

2

TUBE, OUTER 2

(291-23136-60-00)

1
Out of stock

3

OIL SEAL

584-23145-50-00

1

$52.72

In stock

4

.. WASHER, OIL SEAL

214-23146-00-00

1
Out of stock

5

.. CLIP, OIL SEAL

214-23156-00-00

1
Out of stock

6

. CIRCLIP, INNER

93450-30033-00

1
Out of stock

7

PISTON, FRONT FORK

(278-23171-50-00)

1
Out of stock

8

CYLINDER, FRTFRK

(291-23170-60-00)

1
Out of stock

9

. SPRING, FRONT FORK

214-23141-00-00

1
Out of stock

10

. TUBE, INNER 1

291-23124-60-00

1
Out of stock

11

. SEAT, SPRING UPPER

278-23142-50-00

1
Out of stock

12

SPACER

(291-23118-60-00)

1
Out of stock

13

SEAL,DUST

278-23144-50-00

—

$31.64

In stock

14

. COVER, DUST SEAL

278-23148-50-00

1
Out of stock

15

COVER, OUTER 1

(275-23122-60-00)

1
Out of stock

16

. REFLECTOR, FRONT 1

341-85111-00-00

1
Out of stock

17

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

18

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

19

. GASKET (LAMP STAY)

291-23163-61-00

1
Out of stock

20

. GUIDE, COVER LOWER

447-23116-52-00

1
Out of stock

21

COVER, UPPER 1

(291-23121-60-11)

1
Out of stock

21

COVER, UPPER 1

(291-23121-60-35)

1
Out of stock

21

COVER, UPPER 1

(291-23121-60-K1)

1
Out of stock

21

COVER, UPPER 1

(291-23121-60-M3)

1
Out of stock

22

COVER, UPPER 2

(291-23131-60-11)

1
Out of stock

22

COVER, UPPER 2

(291-23131-60-35)

1
Out of stock

22

COVER, UPPER 2

(291-23131-60-K1)

1
Out of stock

22

COVER, UPPER 2

(291-23131-60-M3)

1
Out of stock

23

. GUIDE, COVER UPPER

168-23115-00-00

1
Out of stock

24

. GASKET

214-23114-00-00

1
Out of stock

25

BOLT, CAP

(291-23111-60-00)

1
Out of stock

26

UNDER BRACKET

(291-23340-30-33)

1
Out of stock

27

BOLT, AXLE HOLDER

18G-23128-00-00

—

$7.77

In stock

28

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

29

HOLDER, CABLE 1

(256-23318-60-00)

1
Out of stock

30

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

31

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

32

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

33

GASKET

509-23158-L0-00

—

$14.34

In stock

34

. HOLDER, AXLE (291-23167-60)

291-23167-61-00

1
Out of stock

35

BOLT, STUD (278)

90116-08261-00

—
Out of stock

36

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

37

NUT(6L2)

95333-08600-00

—

$3.20

In stock

38

COVER, RFLCTR STAY

(256-23162-60-00)

1
Out of stock
