REAR WHEEL

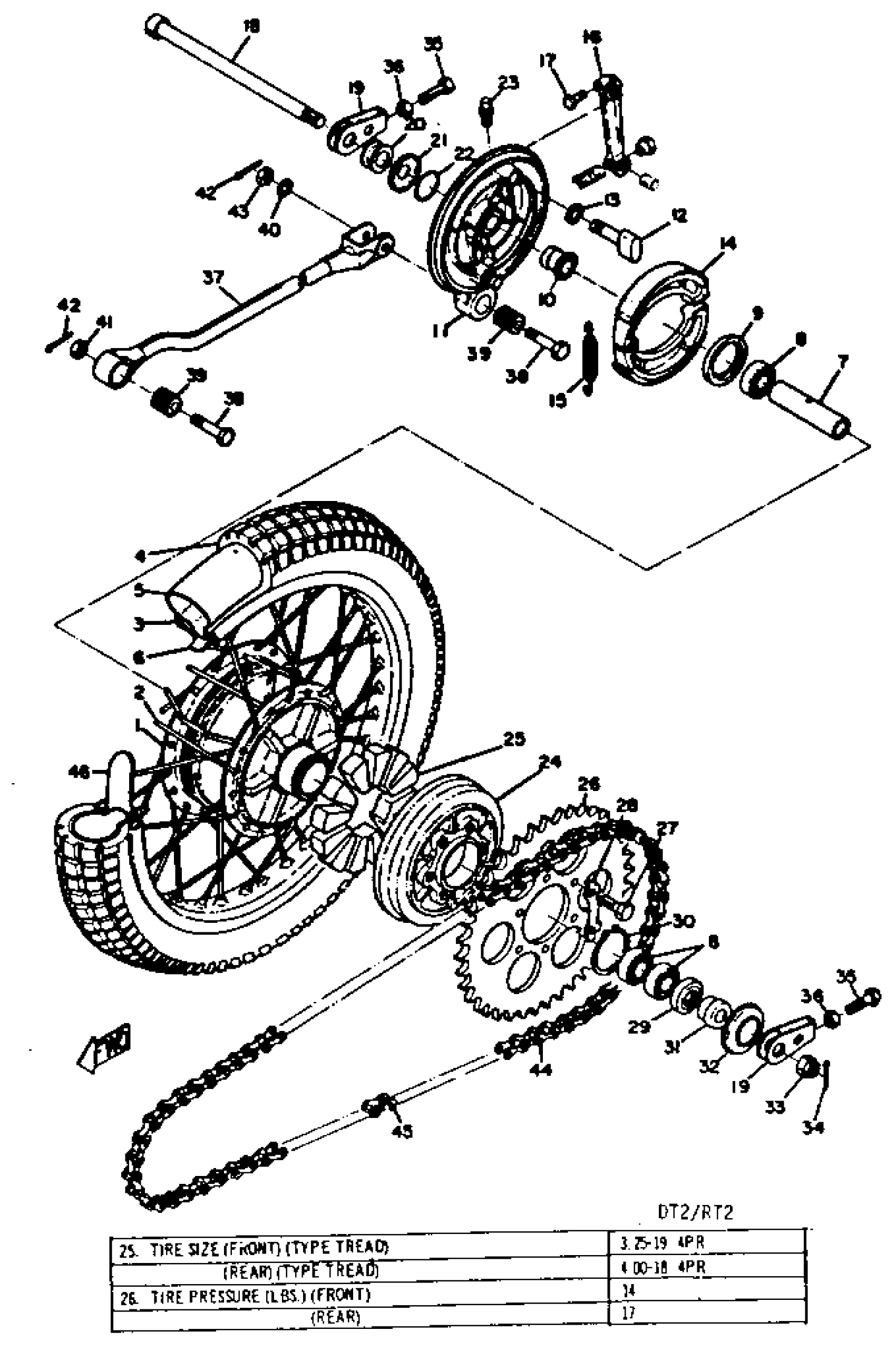

1972 Yamaha DT2 (RT2) Rear Wheel Diagram
Find the part on the Rear Wheel diagram for your 1972 Yamaha DT2 (RT2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
HUB, REAR
(275-25311-00-00)
1
SPOKE SET, INNER 2
(275-25396-90-00)
2
SPOKE SET, REAR
275-25304-00-00
2
SPOKE SET, OUTER 2
(275-25397-90-00)
3
SPOKE SET, INNER 1
(275-25391-90-00)
3
RIM 1.85X18 (1.85B-18)
94418-18051-00
4
SPOKE SET, OUTER 1
(275-25392-90-00)
4
400X18 DUN TRI UNI
(94140-18317-00)
7
SPACER
90560-17311-00
9
OIL SEAL, SO-TYPE
(93104-46029-00)
10
COLLAR
(90387-17450-00)
11
SPOKE SET, REAR
438-25304-00-00
12
CAMSHAFT
214-25351-01-00
14
BRAKE SHOE KIT
3GW-W253A-00-00
16
. LEVER, CAMSHAFT (168-25355-00)
4V5-25355-00-00
18
AXLE,WHEEL
150-25381-01-00
19
PULLER,CHAIN 2
12R-25389-00-00
20
COLLAR(3SX)
90387-170X9-00
21
COVER, PLATE
275-25327-00-00
24
CLUTCH, HUB
(275-25366-00-00)
25
DAMPER
275-25364-00-00
26
SPROCKET, DRIVN 39T (39T) (214-25439-10)
214-25439-10-33
26
SPROCKET, DRIVN 40T
(214-25440-10-33)
26
SPROCKET, DRIVN 42T
(214-25442-10-33)
26
SPROCKET, DRIVN 44T
(214-25444-10-33)
26
SPROCKET, DRIVN 47T
214-25447-10-00
27
BOLT, FITTING
90109-08377-00
29
OIL SEAL, DD-TYPE (DD-25-40-9)
93106-25003-00
31
COLLAR, SHAFT
90387-17140-00
32
COVER, DUST
275-25367-00-00
33
NUT, CASTLE
90171-16007-00
37
BAR, TENSION
(275-25371-00-33)
38
BOLT, WITH HOLE
(90102-10007-00)
39
BUSH 1
(275-22123-00-00)
44
520 DS 110L
94585-20110-00
45
. JOINT CHAIN
94680-11001-00
