1997 Yamaha RT180 (RT180J) Steering Handle Cable Diagram

← All diagrams

Find the part on the Steering Handle Cable diagram for your 1997 Yamaha RT180 (RT180J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

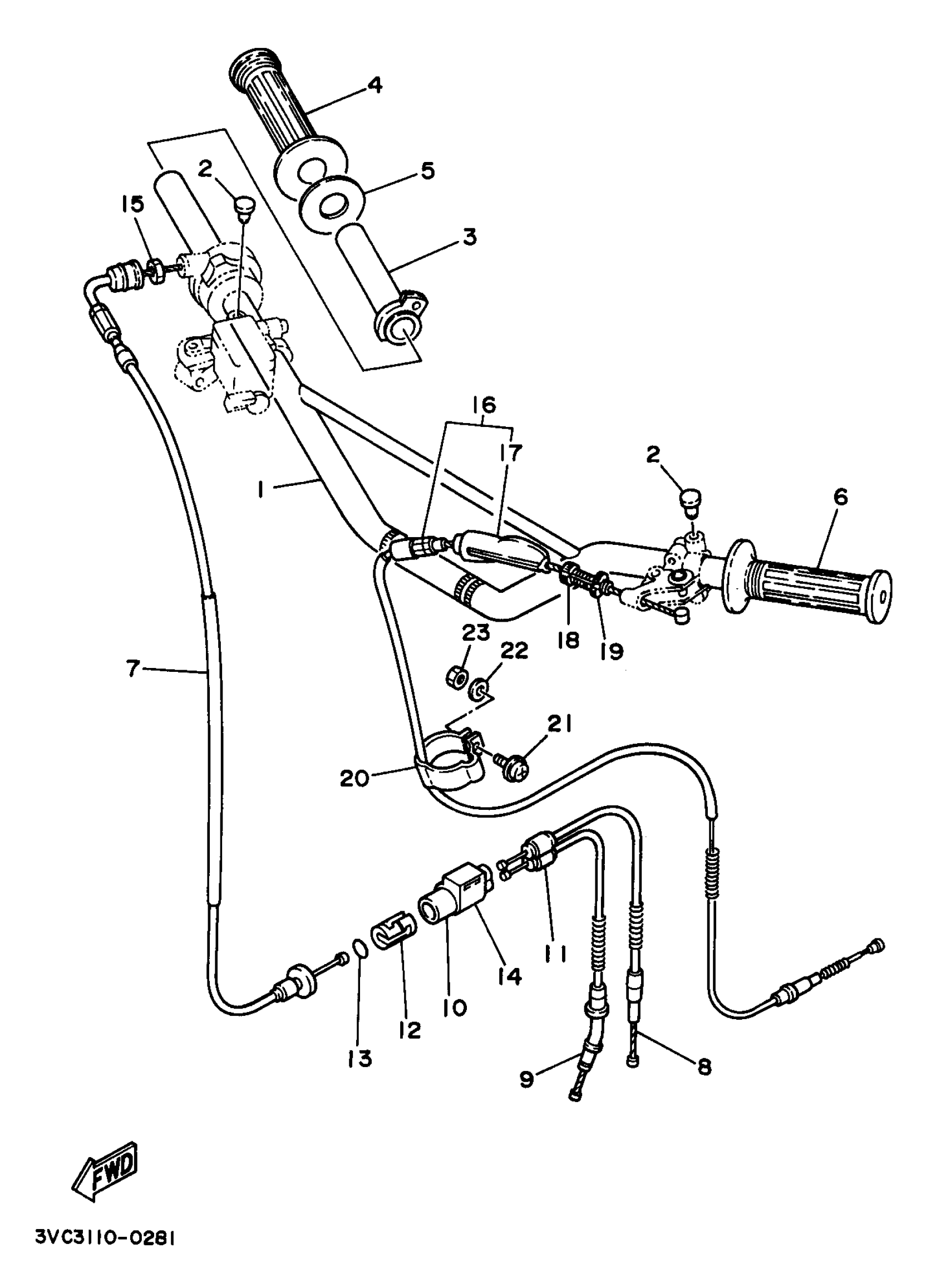

1997 Yamaha RT180 (RT180J) Steering Handle Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

3VC-F6111-00-00

1
Out of stock

2

PLUG (341-26329-00)

90338-09012-00

1

$7.26

In stock

3

TUBE, GUIDE.

434-26243-00-00

1
Out of stock

4

GRIP (R.H)

1A0-26242-01-00

1
Out of stock

5

RING, LEAF

1M1-26249-01-00

1
Out of stock

6

GRIP, HANDLE (L.H)

1E6-26241-00-00

1
Out of stock

7

CABLE, THROTTLE 1

5L9-F6311-01-00

1
Out of stock

8

CABLE, THROTTLE 2

5L9-F6312-02-00

1
Out of stock

9

CABLE, PUMP

5L9-F6321-03-00

1
Out of stock

10

CONNECTOR, CABLE

5L9-F6261-00-00

1
Out of stock

11

CAP

5L9-F6272-00-00

1
Out of stock

12

CABLE,CONNECTOR 3VC 91

5L9-F6263-01-00

1
Out of stock

13

O-RING (260)

93210-10118-00

1

$5.86

In stock

14

GUIDE, WIRE

5L9-F6339-00-00

1
Out of stock

15

NUT, HEXAGON

90170-10038-00

1
Out of stock

16

CABLE, CLUTCH

5L9-F6335-01-00

1
Out of stock

17

COVER, LEVER

498-26372-00-00

—

$26.34

In stock

18

BOLT

90123-08002-00

—

$8.93

In stock

19

NUT

90179-08030-00

—

$3.78

In stock

20

CLAMP

2A6-26397-00-00

1
Out of stock

21

SCREW, PAN HEAD WITH WASHER

97602-05218-09

1
Out of stock

22

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

23

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock
