1997 Yamaha RT180 (RT180J) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1997 Yamaha RT180 (RT180J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

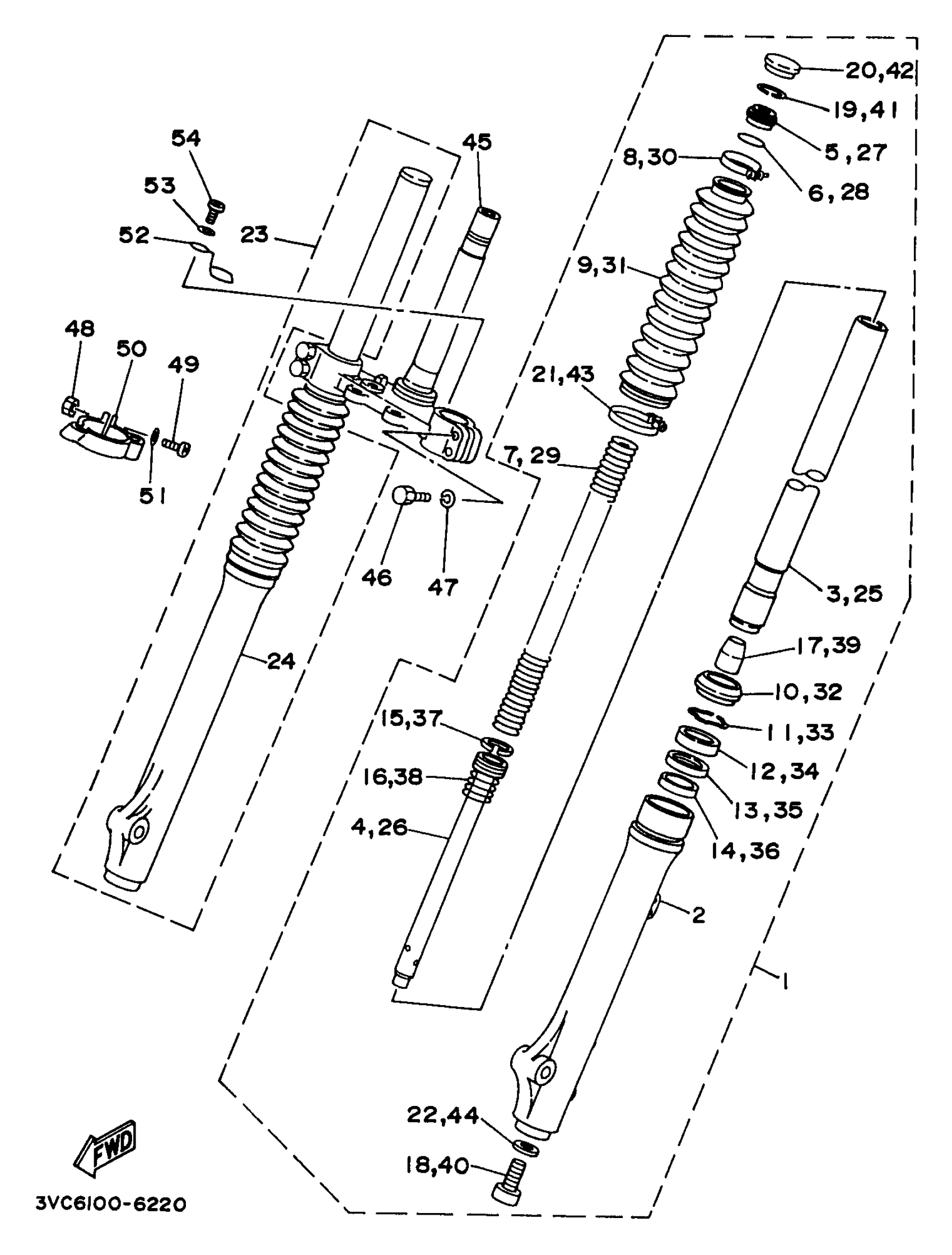

1997 Yamaha RT180 (RT180J) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY (L. H)

2TW-F3102-J0-00

1
Out of stock

2

. TUBE, OUTER (LEFT)

2TW-F3126-A0-00

1
Out of stock

3

. INNER TUBE COMP1

2TW-F3110-A0-00

1
Out of stock

4

. PISTON, FRONT FORK

2TW-F3171-A0-00

1
Out of stock

5

. BOLT, CAP

2TW-F3111-A0-00

1
Out of stock

6

O-RING(1HX)

93210-24709-00

1
Out of stock

7

. SPRING, FRONT FORK

2TW-F3141-A0-00

1
Out of stock

8

BAND

4AN-F3192-00-00

1

$8.88

In stock

9

. BOOT

2TW-F3191-J0-00

1
Out of stock

10

. SEAL, DUST

2TW-F3144-A0-00

1
Out of stock

11

CLIP, OIL SEAL

34X-23156-00-00

1

$7.51

In stock

12

. OIL SEAL

2TW-F3145-A0-00

1
Out of stock

13

SPACER, SEAL

10V-23147-00-00

—

$26.40

In stock

14

. METAL, SLIDE 1

10V-23125-00-00

1
Out of stock

15

. RING, PISTON FRONT FORK (2F3-23157-00)

1T4-23157-01-00

1
Out of stock

16

. SPRING, REBOUND

2TW-F3151-A0-00

1
Out of stock

17

SPACER, OIL LOCK

4AN-F3166-00-00

—

$7.42

In stock

18

BOLT

3M7-23181-00-00

—

$7.75

In stock

19

RING, SNAP

1UA-23153-00-00

—
Out of stock

20

CAP, FRONT FORK

2TW-F3168-A0-00

—
Out of stock

21

BAND

4AN-F3192-10-00

—

$1.57

In stock

22

WASHER, PLATE

90201-10801-00

1
Out of stock

23

FRONT FORK ASSEMBLY (R. H)

2TW-F3103-J0-00

1
Out of stock

24

. TUBE, OUTER (RIGHT)

2TW-F3136-A0-00

1
Out of stock

25

. INNER TUBE COMP1

2TW-F3110-A0-00

1
Out of stock

26

. PISTON, FRONT FORK

2TW-F3171-A0-00

1
Out of stock

27

. BOLT, CAP

2TW-F3111-A0-00

1
Out of stock

28

O-RING(1HX)

93210-24709-00

1
Out of stock

29

. SPRING, FRONT FORK

2TW-F3141-A0-00

1
Out of stock

30

BAND

4AN-F3192-00-00

1

$8.88

In stock

31

. BOOT

2TW-F3191-J0-00

1
Out of stock

32

. SEAL, DUST

2TW-F3144-A0-00

1
Out of stock

33

CLIP, OIL SEAL

34X-23156-00-00

1

$7.51

In stock

34

. OIL SEAL

2TW-F3145-A0-00

1
Out of stock

35

SPACER, SEAL

10V-23147-00-00

—

$26.40

In stock

36

. METAL, SLIDE 1

10V-23125-00-00

1
Out of stock

37

. RING, PISTON FRONT FORK (2F3-23157-00)

1T4-23157-01-00

1
Out of stock

38

. SPRING, REBOUND

2TW-F3151-A0-00

1
Out of stock

39

SPACER, OIL LOCK

4AN-F3166-00-00

—

$7.42

In stock

40

BOLT

3M7-23181-00-00

—

$7.75

In stock

41

RING, SNAP

1UA-23153-00-00

—
Out of stock

42

CAP, FRONT FORK

2TW-F3168-A0-00

—
Out of stock

43

BAND

4AN-F3192-10-00

—

$1.57

In stock

44

WASHER, PLATE

90201-10801-00

1
Out of stock

45

UNDER BRACKET COMP

2TW-F3340-10-35

1
Out of stock

46

BOLT, HEXAGON

97013-08030-00

—

$3.20

In stock

47

WASHER(JN5)

92907-08100-00

—

$5.98

In stock

48

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

49

SCREW, PAN HEAD

98517-05020-00

—

$1.35

In stock

50

HOLDER, CABLE

34X-23317-00-00

—

$6.52

In stock

51

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

52

GUIDE, CABLE

4AN-F331E-00-00

1
Out of stock

53

WASHER, SPRING

92907-06100-00

—
Out of stock

54

SCREW, PAN

98517-06012-00

—

$3.14

In stock
