1997 Yamaha RT180 (RT180J) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1997 Yamaha RT180 (RT180J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

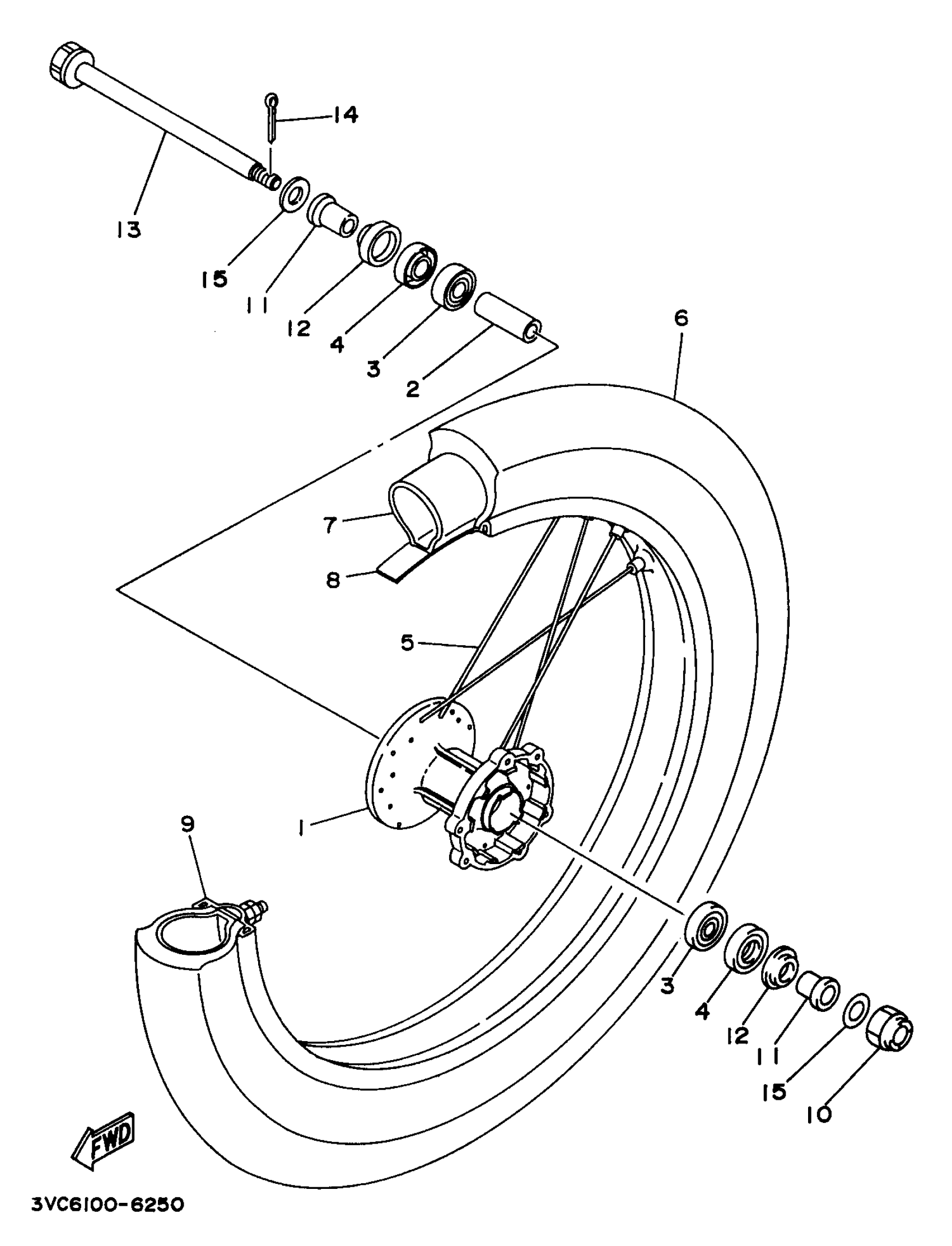

1997 Yamaha RT180 (RT180J) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

4AN-F5111-00-98

1
Out of stock

2

SPACER(1ET)

90560-15290-00

1

$17.32

In stock

3

BEARING

93306-20205-00

1

$32.63

In stock

4

OIL SEAL (23X)

93102-20281-00

1

$11.35

In stock

5

SPOKE SET, FRONT

4LR-25104-00-00

—
Out of stock

6

TIRE (80/100-21 51P MT21 TT)

94108-218F5-00

1
Out of stock

7

TUBE (80/100-21)

94227-21W51-00

—
Out of stock

8

BAND, RIM (2A6)

94330-21084-00

1

$13.89

In stock

9

RIM 1.85 X 21

94418-21884-00

1
Out of stock

10

NUT, CASTLE(2UJ)

90171-14056-00

1

$10.57

In stock

11

COLLAR (1W1)

90387-15600-00

1

$15.34

In stock

12

COVER, HUB DUST

322-25118-00-00

1

$16.17

In stock

13

AXLE, WHEEL

34X-25181-00-00

—
Out of stock

14

PIN, COTTER

91490-30030-00

1

$7.15

In stock

15

WASHER (525)

90201-15238-00

—
Out of stock
