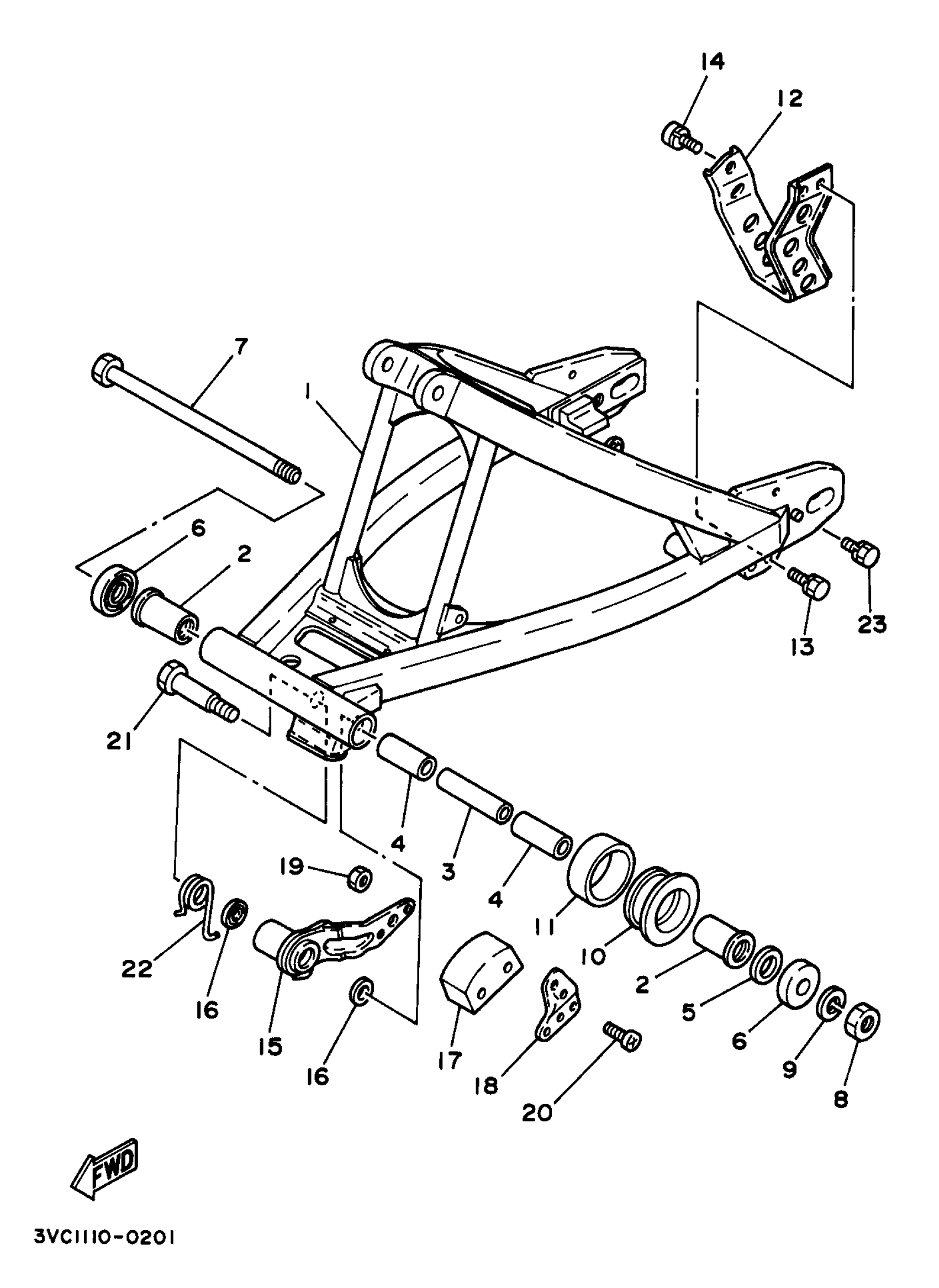

Find the part on the Rear ARM diagram for your 1997 Yamaha RT180 (RT180J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha RT180 (RT180J) Rear ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR ARM COMP

3VC-F2110-00-35

1
Out of stock

2

BUSHING (401-22123-00)

90386-18028-00

1

$21.40

In stock

3

BUSH 2

42L-F2124-00-00

1
Out of stock

4

BUSH, SOLID

90380-12120-00

1
Out of stock

5

SHIM

401-22127-00-00

1

$6.62

In stock

6

COVER, THRUST 1

401-22128-01-00

1

$25.49

In stock

7

SHAFT, PIVOT

2N4-22141-00-00

1
Out of stock

8

NUT, NYLON

95717-12300-00

1

$5.85

In stock

9

WASHER(6TA)

92907-12100-00

1

$6.68

In stock

10

SEAL, GUARD

2A6-22151-00-00

1

$7.37

In stock

11

SEAL, GUARD 2

2A6-22152-00-00

1

$5.26

In stock

12

GUARD, CHAIN

2A6-22318-00-00

—
Out of stock

13

BOLT, WITH WASHER

97502-06420-00

1
Out of stock

14

BOLT, WITH WASHER

97502-08412-00

1
Out of stock

15

ARM, TENSIONER

2A6-22179-01-00

—
Out of stock

16

OIL SEAL (2K8)

93109-14021-00

—

$10.60

In stock

17

TENSIONER

2N0-22178-00-00

—
Out of stock

18

GUIDE, CHAIN

1W1-22187-00-00

—
Out of stock

19

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

20

SCREW, PAN

98507-05035-00

—

$6.69

In stock

21

BOLT (1J4)

90109-10483-00

—

$8.28

In stock

22

SPRING, TORSION (1J4)

90508-35350-00

—
Out of stock

23

BOLT, WITH WASHER

97502-05216-00

1
Out of stock
