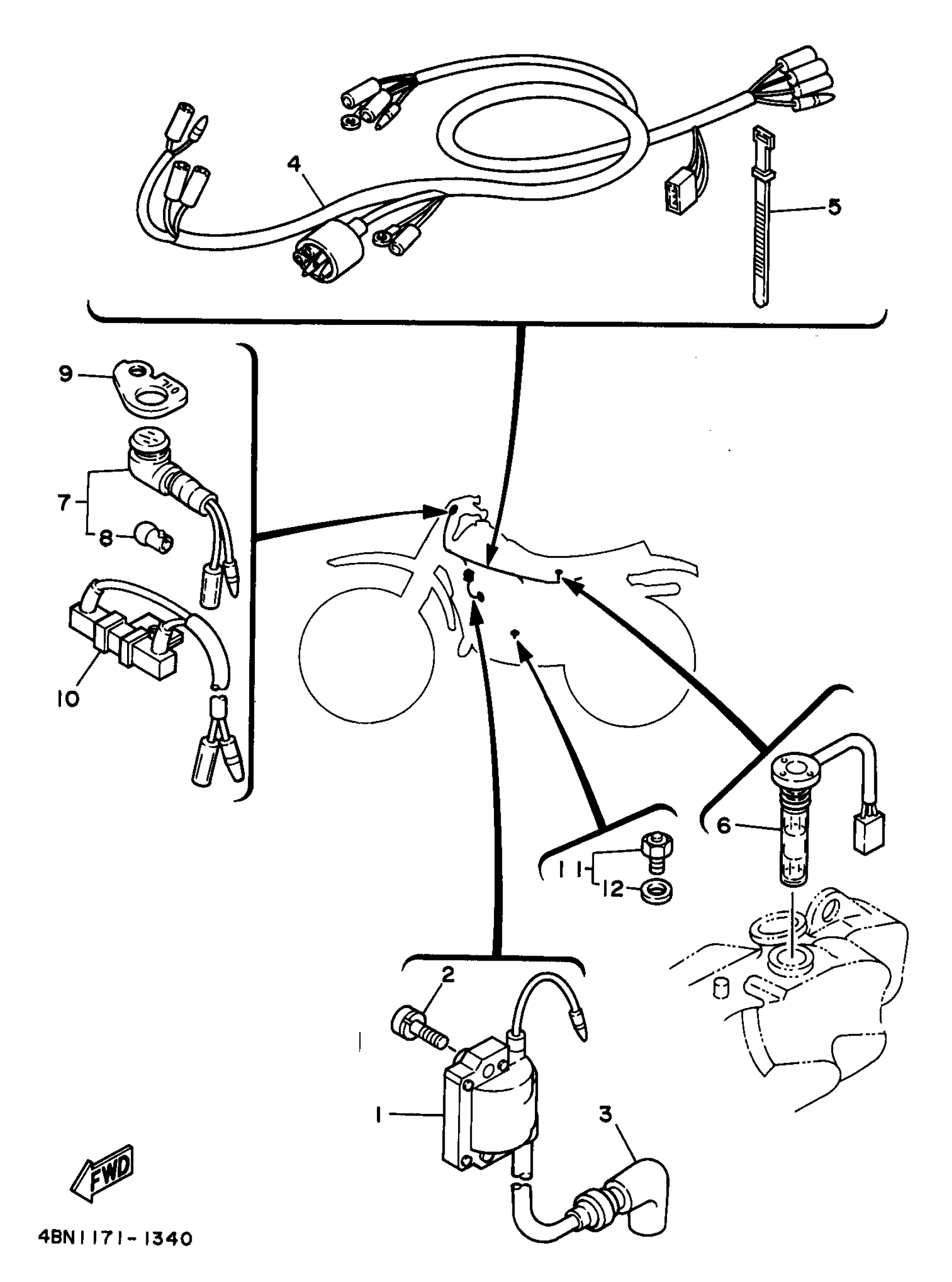

Find the part on the Electrical 1 diagram for your 1997 Yamaha RT180 (RT180J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha RT180 (RT180J) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RECTIFIER & REGULATOR ASSY

4CK-81960-01-00

1

$192.51

In stock

2

SCREW, PAN HEAD WITH WASHER

97602-06120-09

1
Out of stock

3

PLUG CAP ASSY

8DG-82370-00-00

1
Out of stock

4

WIRE HARNESS ASSY

3VC-H2590-02-00

1
Out of stock

5

BAND, SWITCH CORD

5L9-H3936-00-00

1
Out of stock

6

OIL LEVEL GAUGE ASSY

5GP-85720-00-00

—
Out of stock

7

PILOT LIGHT ASSY

52G-83530-10-00

1
Out of stock

8

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

9

BRACKET, INDICATOR LIGHT 1

3VC-H3574-00-00

1
Out of stock

10

RESISTOR ASSEMBLY

3VC-85370-00-00

1
Out of stock

11

NEUTRAL SWITCH ASSY

5HH-H2540-02-00

1

$17.18

In stock

12

. GASKET

90430-09802-09

1
Out of stock
