1998 Yamaha RT100 (RT100K) Front Fork Diagram

← All diagrams

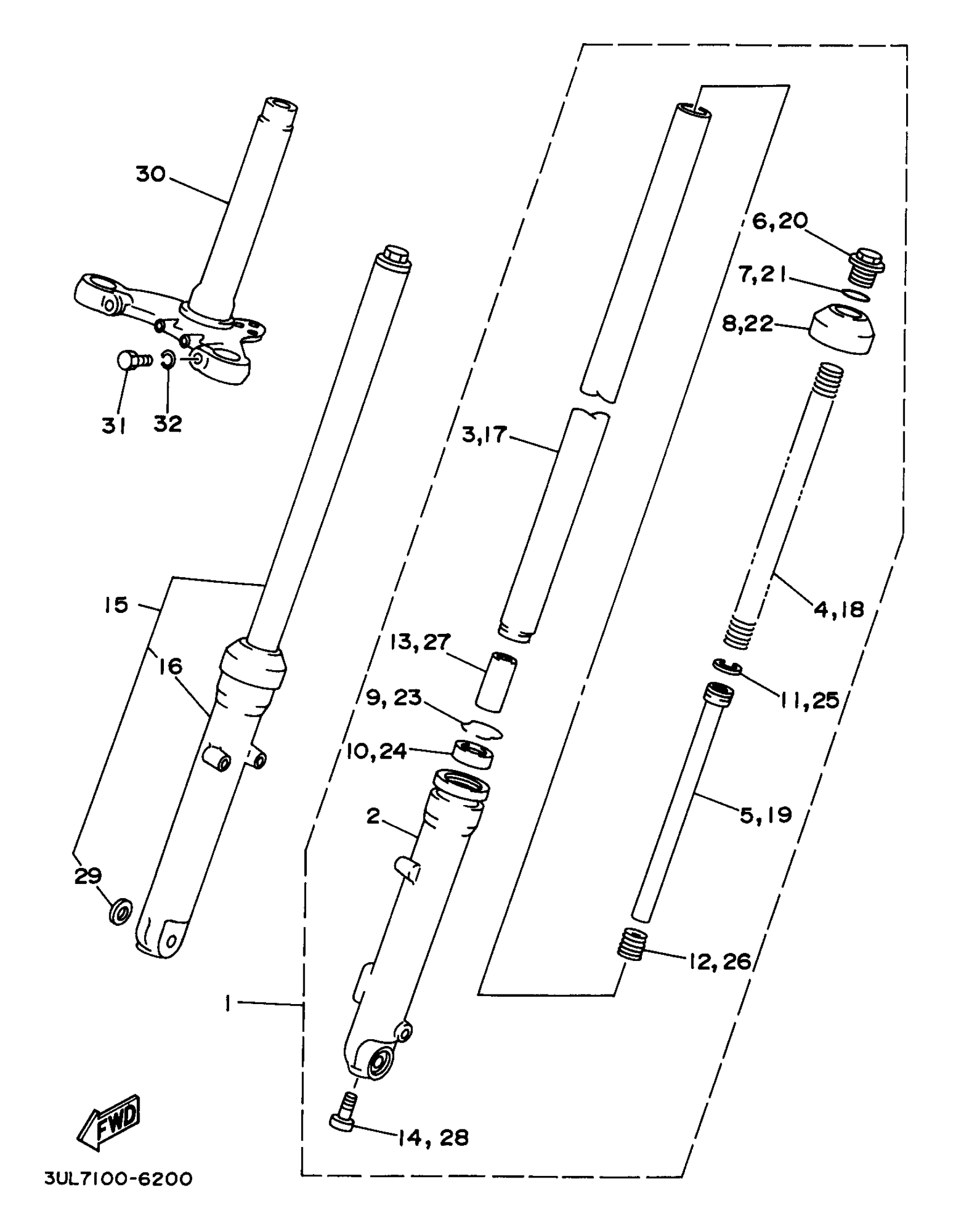

Find the part on the Front Fork diagram for your 1998 Yamaha RT100 (RT100K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Yamaha RT100 (RT100K) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY (L.H)

3UL-23102-02-00

1
Out of stock

2

. TUBE, OUTER (LEFT)

3UL-23126-02-00

1
Out of stock

3

. TUBE, INNER 1

3UL-23124-02-00

1
Out of stock

4

. SPRING, FRONT FORK

3UL-23141-02-00

1
Out of stock

5

. PISTON, FRONT FORK

3UL-23171-02-00

1
Out of stock

6

. BOLT, CAP

3UL-23111-00-00

1
Out of stock

7

O-RING (1L9)

93210-18322-00

1

$4.77

In stock

8

SEAL,DUST

462-23144-02-00

1
Out of stock

9

. CLIP, OIL SEAL

2J5-23156-00-00

1
Out of stock

10

OIL SEAL (5R6)

93110-27010-00

—

$22.46

In stock

11

RING, PISTON

2J5-23157-00-00

1
Out of stock

12

SPRING, REBOUND

2J5-23151-00-00

1
Out of stock

13

. GUIDE, COVER LOWER

3UL-23116-02-00

1
Out of stock

14

BOLT

3M7-23181-00-00

1

$7.75

In stock

15

FRONT FORK ASSEMBLY (R.H)

3UL-23103-02-00

1
Out of stock

16

. TUBE, OUTER (RIGHT)

3UL-23136-02-00

1
Out of stock

17

. TUBE, INNER 1

3UL-23124-02-00

1
Out of stock

18

. SPRING, FRONT FORK

3UL-23141-02-00

1
Out of stock

19

. PISTON, FRONT FORK

3UL-23171-02-00

1
Out of stock

20

. BOLT, CAP

3UL-23111-00-00

1
Out of stock

21

O-RING (1L9)

93210-18322-00

1

$4.77

In stock

22

SEAL,DUST

462-23144-02-00

1
Out of stock

23

. CLIP, OIL SEAL

2J5-23156-00-00

1
Out of stock

24

OIL SEAL (5R6)

93110-27010-00

—

$22.46

In stock

25

RING, PISTON

2J5-23157-00-00

1
Out of stock

26

SPRING, REBOUND

2J5-23151-00-00

1
Out of stock

27

. GUIDE, COVER LOWER

3UL-23116-02-00

1
Out of stock

28

BOLT

3M7-23181-00-00

1

$7.75

In stock

29

. WASHER, SPECIAL

462-23392-02-00

1
Out of stock

30

UNDER BRACKET COMP.

1T9-23340-00-90

1
Out of stock

31

BOLT (8J7)

97013-10030-00

—

$8.91

In stock

32

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock
