1998 Yamaha RT100 (RT100K) Steering Handle Cable Diagram

← All diagrams

Find the part on the Steering Handle Cable diagram for your 1998 Yamaha RT100 (RT100K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

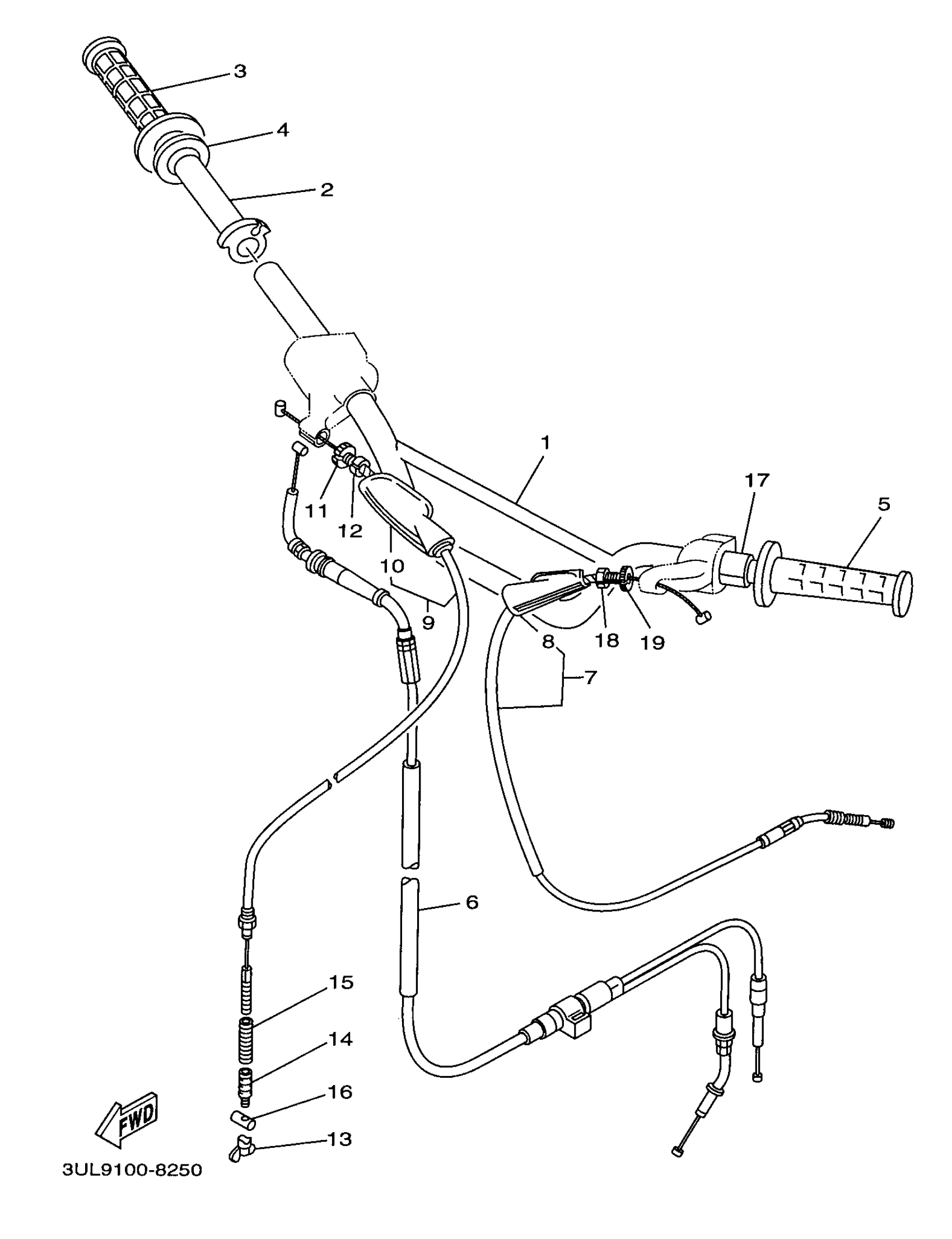

1998 Yamaha RT100 (RT100K) Steering Handle Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

3UN-26111-00-00

—

$88.08

In stock

2

TUBE, GUIDE.

434-26243-00-00

1
Out of stock

3

GRIP (R.H)

1LX-26242-01-00

1

$29.77

In stock

4

RING, LEAF

1M1-26249-01-00

1
Out of stock

5

GRIP (L.H)

1LX-26241-01-00

1

$28.30

In stock

6

THROTTLE CABLE ASSY

3UL-26301-11-00

1
Out of stock

7

CABLE, CLUTCH

3M1-26335-10-00

1

$45.97

In stock

8

COVER, LEVER

498-26372-00-00

—

$26.34

In stock

9

CABLE, BRAKE

3UL-26341-10-00

1
Out of stock

10

COVER, LEVER

498-26372-00-00

—

$26.34

In stock

11

NUT

90179-08030-00

1

$3.78

In stock

12

BOLT

90123-08002-00

1

$8.93

In stock

13

NUT, WING (1K5)

90175-06013-00

1

$4.11

In stock

14

BOOT, CABLE

3M7-26342-00-00

1
Out of stock

15

SPRING, COMPRESSION

90501-09052-00

1
Out of stock

16

PIN 1562723700

90249-12008-00

—

$4.70

In stock

17

COLLAR(1TG)

90387-225N2-00

—
Out of stock

18

BOLT

90123-08002-00

1

$8.93

In stock

19

NUT

90179-08030-00

1

$3.78

In stock
