1998 Yamaha RT100 (RT100K) Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1998 Yamaha RT100 (RT100K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

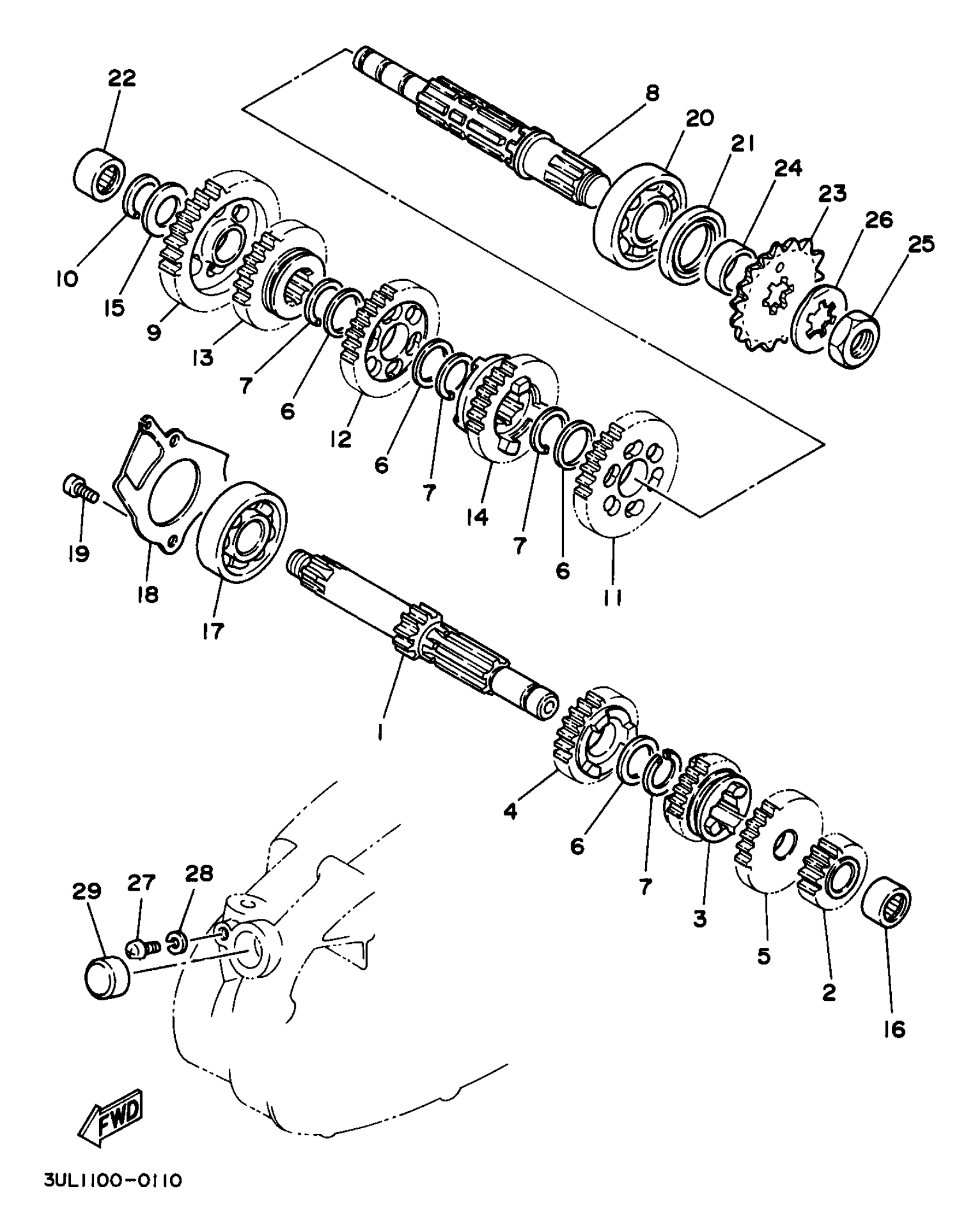

1998 Yamaha RT100 (RT100K) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. AXLE, MAIN (11T)

558-17411-00-00

1
Out of stock

2

GEAR, 2ND PINION

437-17121-02-00

1
Out of stock

3

. GEAR, 3RD PINION (19T)

427-17131-00-00

1
Out of stock

4

GEAR,4TH PINION

4EG-17141-00-00

1
Out of stock

5

GEAR, 5TH PINION (25T)

437-17151-00-00

1
Out of stock

6

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

7

CIRCLIP (525)

93410-20038-00

1

$2.62

In stock

8

AXLE, DRIVE

558-17421-00-00

—

$134.29

In stock

9

. GEAR, 1ST WHEEL

248-17211-00-00

1
Out of stock

10

CIRCLIP

93440-15012-00

1
Out of stock

11

GEAR, 2ND WHEEL

427-17221-00-00

1
Out of stock

12

GEAR, 3RD WHEEL

427-17231-00-00

—
Out of stock

13

GEAR,4TH WHEEL

4EG-17241-00-00

1
Out of stock

14

GEAR, 5TH WHEEL (20T)

437-17251-00-00

1
Out of stock

15

SHIM, DRIVE AXLE

164-17427-00-06

1

$5.15

In stock

15

SHIM, DRIVE AXLE

164-17427-00-10

—

$7.85

In stock

16

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

—
Out of stock

17

BEARING(4HM)

93306-30317-00

—

$33.54

In stock

18

PLATE, COVER

1G8-17471-00-00

1
Out of stock

19

SCREW, PAN

98517-06012-00

—

$3.14

In stock

20

—

$54.91

In stock

21

OIL SEAL (26X38X5-181)

93102-26042-00

—

$4.20

In stock

22

BEARING, CYLINDRICAL(2TV)

93311-31567-00

—
Out of stock

23

SPROCKET,DRIVE 14T(5171746142)

93812-14035-00

—
Out of stock

24

COLLAR (525)

90387-20491-00

—

$13.71

In stock

25

NUT,SPEC'L SHAPE

90179-16018-00

—

$11.26

In stock

26

WASHER, LOCK (1L8)

90215-16127-00

—

$8.91

In stock

27

SCREW, PAN

98507-06010-00

—
Out of stock

28

WASHER, SPRING

92907-06100-00

—
Out of stock

29

PLUG 363174810000

90338-20023-00

—

$5.14

In stock
