1998 Yamaha RT100 (RT100K) Rear Arm Suspension Diagram

← All diagrams

Find the part on the Rear Arm Suspension diagram for your 1998 Yamaha RT100 (RT100K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

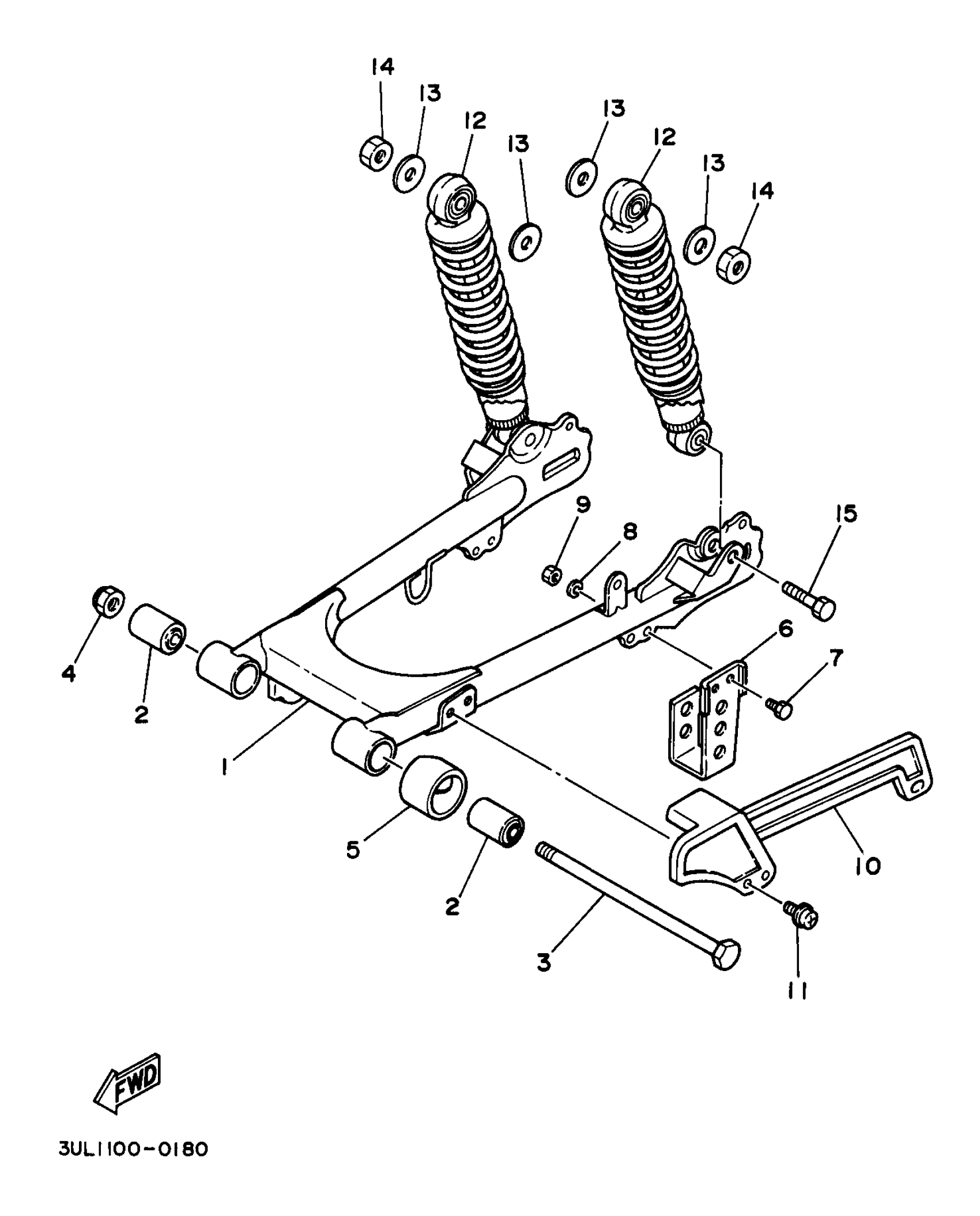

1998 Yamaha RT100 (RT100K) Rear Arm Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR ARM COMP.

3UL-22110-00-35

1
Out of stock

2

BUSH 1

276-22123-00-00

1

$32.10

In stock

3

AXLE,WHEEL

2J5-25381-01-00

1
Out of stock

4

NUT, NYLON

95717-12300-00

1

$5.85

In stock

5

SEAL, GUARD

4L0-22151-00-00

—

$18.83

In stock

6

GUARD, CHAIN

492-22153-00-33

1
Out of stock

7

BOLT(8CP)

97017-06014-00

1

$5.12

In stock

8

WASHER, SPRING

92907-06100-00

1
Out of stock

9

NUT(6TA)

95317-06600-00

1

$2.69

In stock

10

SUPPORT, CHAIN

21W-22199-00-00

1
Out of stock

11

SCREW, WITH WASHER(52W)

90159-05121-00

1

$2.34

In stock

12

SHOCK ABSORBER ASSEMBLY, REAR

3UL-22210-01-UJ

1
Out of stock

13

WASHER, PLATE (4N0)

90201-126A7-00

1

$6.28

In stock

14

NUT, HEXAGON

95337-12600-00

1
Out of stock

15

BOLT, WASHER BASED(3YR)

90105-10669-00

—

$8.51

In stock
