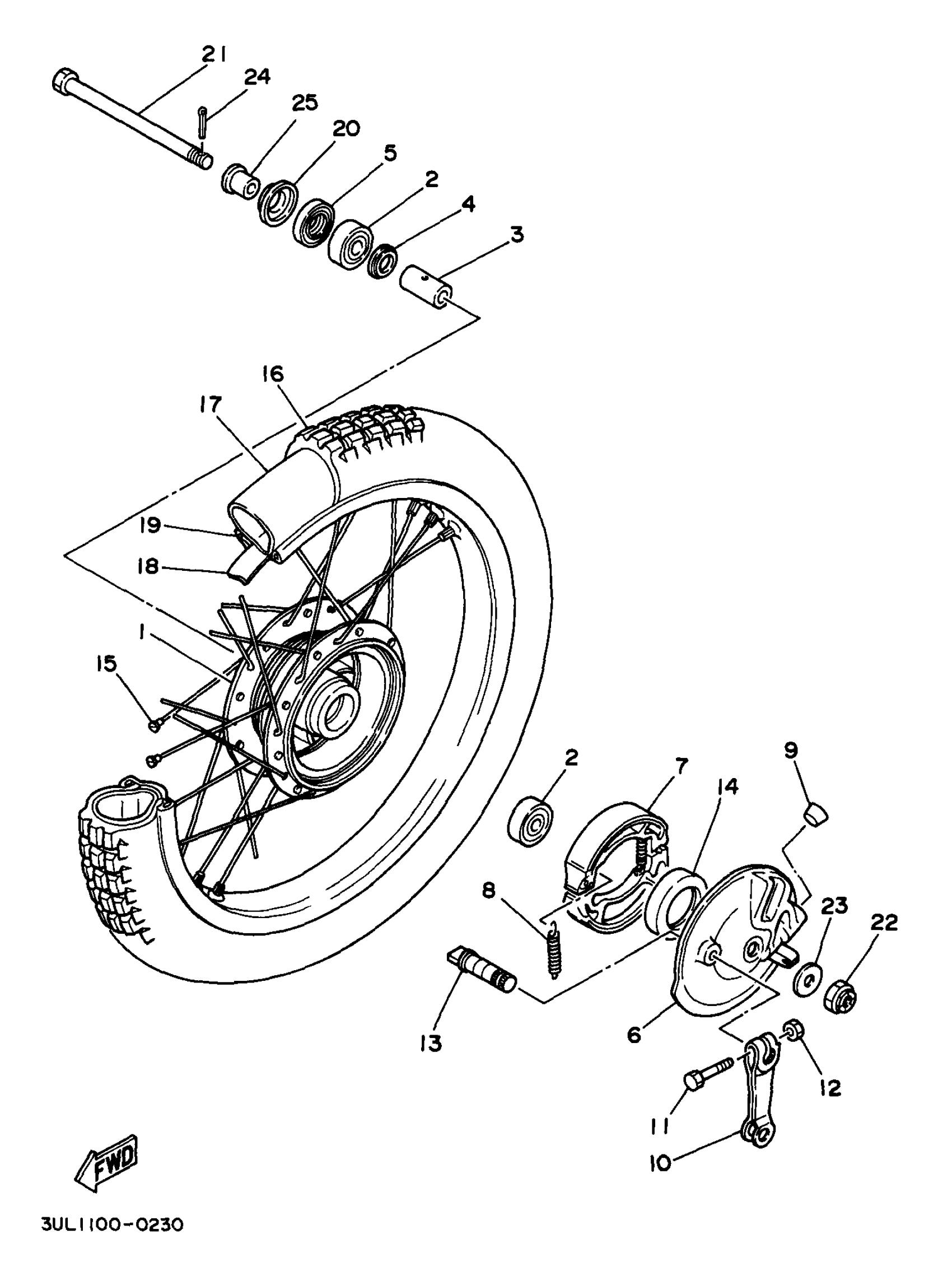

Find the part on the Front Wheel diagram for your 1998 Yamaha RT100 (RT100K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Yamaha RT100 (RT100K) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

248-25111-00-98

—
Out of stock

2

BEARING

93306-30102-00

1
Out of stock

3

SPACER

90560-12138-00

—

$12.83

In stock

4

FLANGE, SPACER

109-25315-00-00

1

$6.20

In stock

5

OIL SEAL (18X37X8-109)

93102-18008-00

1

$22.31

In stock

6

PLATE, BRAKE SHOE

4J8-25121-00-98

1
Out of stock

7

BRAKE SHOE KIT

4BE-W253E-00-00

1

$22.27

In stock

8

SPRING, TENSION

90506-15260-00

1

$5.75

In stock

9

PLUG 288251390000

90338-18014-00

—

$7.57

In stock

10

LEVER, CAM SHAFT

2N3-25155-00-00

1

$25.17

In stock

11

BOLT, HEXAGON (538)

90101-06278-00

1

$1.82

In stock

12

NUT(6TA)

95317-06600-00

1

$2.69

In stock

13

CAMSHAFT

4GL-25351-00-00

1

$62.50

In stock

14

OIL SEAL (22F)

93102-47297-00

—

$7.91

In stock

15

SPOKE SET, FRONT

276-25104-40-00

1
Out of stock

16

250-18 CS C-755-1

94125-18570-XX

1
Out of stock

17

TUBE (5H5)

94225-18194-00

—

$31.80

In stock

18

BAND, RIM

94325-18059-00

1
Out of stock

19

RIM (1.40-18)

94414-18545-00

—

$107.12

In stock

20

COVER HUB DUST

481-25118-01-00

—

$6.31

In stock

21

SHAFT, WHEEL (462)

90102-12015-00

—

$14.29

In stock

22

NUT, CASTLE

95307-12900-00

—

$5.85

In stock

23

WASHER, PLATE

90201-12047-00

—

$7.54

In stock

24

PIN, COTTER

91401-30025-00

—

$6.18

In stock

25

COLLAR

90387-12616-00

1
Out of stock
