1975 Yamaha RS100 (RS100B) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1975 Yamaha RS100 (RS100B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

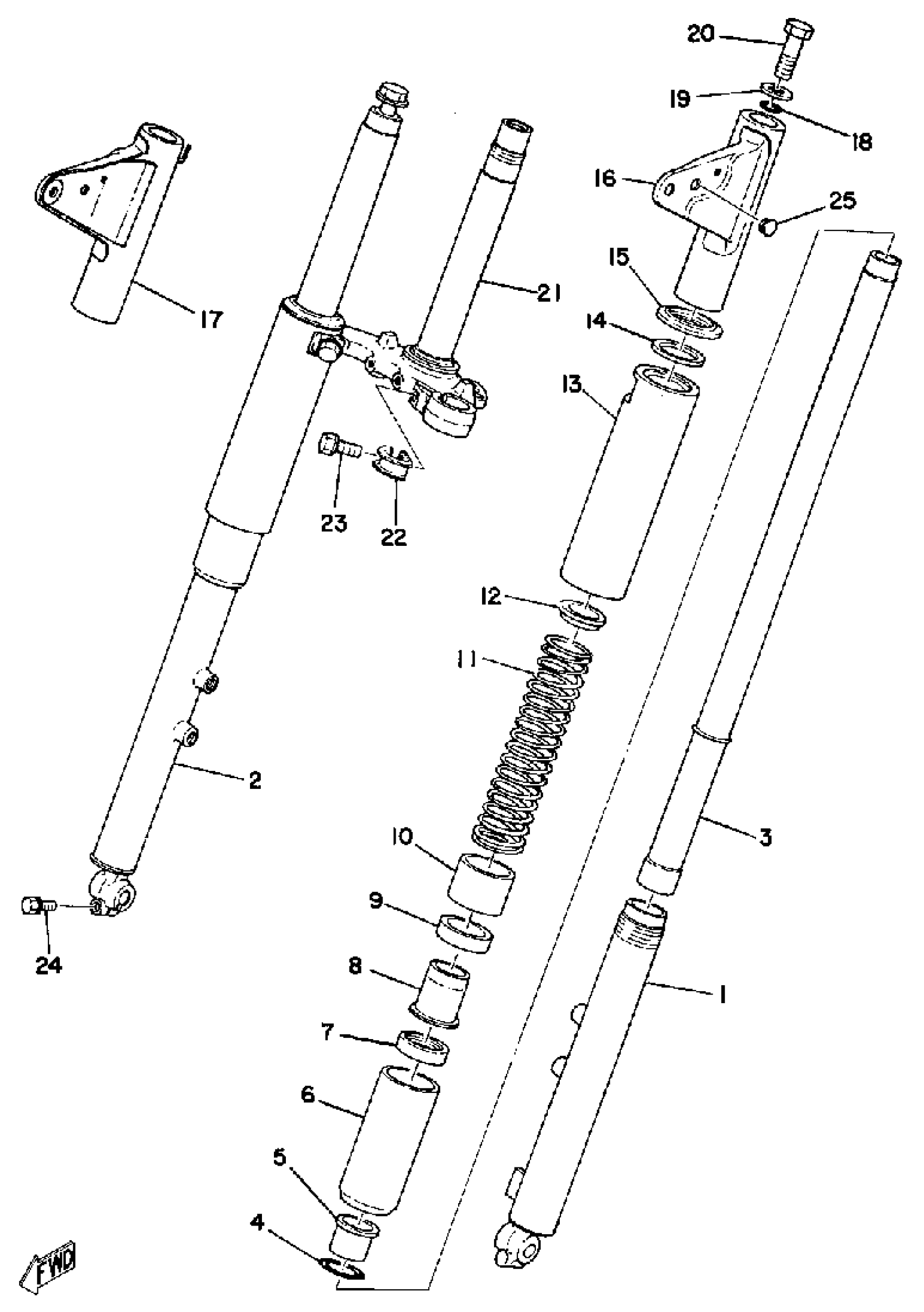

1975 Yamaha RS100 (RS100B) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TUBE, OUTER 1

(326-23126-90-93)

1
Out of stock

1

FRONT FORK ASSEMBLY

(465-23100-00-L2)

1
Out of stock

2

TUBE, OUTER 2

(326-23136-90-93)

1
Out of stock

3

TUBE, INNER 1

(241-23124-40-00)

1
Out of stock

4

. O-RING

122-23147-00-00

1
Out of stock

5

METAL, SLIDE 1

(357-23125-90-00)

1
Out of stock

6

OUTER NUT

(201-23150-01-00)

1
Out of stock

7

OIL SEAL (5R6)

93110-27010-00

—

$22.46

In stock

8

SEAT, SPRING LOWER

(122-23143-00-00)

1
Out of stock

9

SPACER

(463-23118-00-00)

1
Out of stock

10

GUIDE, SPRING

(336-23117-90-00)

1
Out of stock

11

SPRING, FRONT FORK

(336-23141-90-00)

1
Out of stock

12

GUIDE SPRING

(342-92190-10-00)

1
Out of stock

13

COVER, LOWER 1

(201-23123-00-L2)

1
Out of stock

14

GASKET

(463-23163-00-00)

1
Out of stock

15

GUIDE, COVER LOWER

(463-23116-00-00)

1
Out of stock

16

COVER, UPPER 1

(507-23121-00-L2)

1
Out of stock

17

COVER, UPPER 2

(507-23131-00-L2)

1
Out of stock

18

GASKET

307-23114-00-00

—
Out of stock

19

. WASHER, CAP

276-23112-50-00

1
Out of stock

20

BOLT, CAP

(307-23111-00-00)

1
Out of stock

21

UNDER BRACKET

(464-23340-01-33)

1
Out of stock

22

. HOLDER, CABLE 1

260-23318-40-00

1
Out of stock

23

BOLT 1

122-23346-02-00

—

$6.25

In stock

24

BOLT, WITH WASHER

(90119-08010-00)

1
Out of stock

25

PLUG, SPEC''L SHAPE

(90338-09060-00)

1
Out of stock
