1975 Yamaha RS100 (RS100B) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1975 Yamaha RS100 (RS100B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

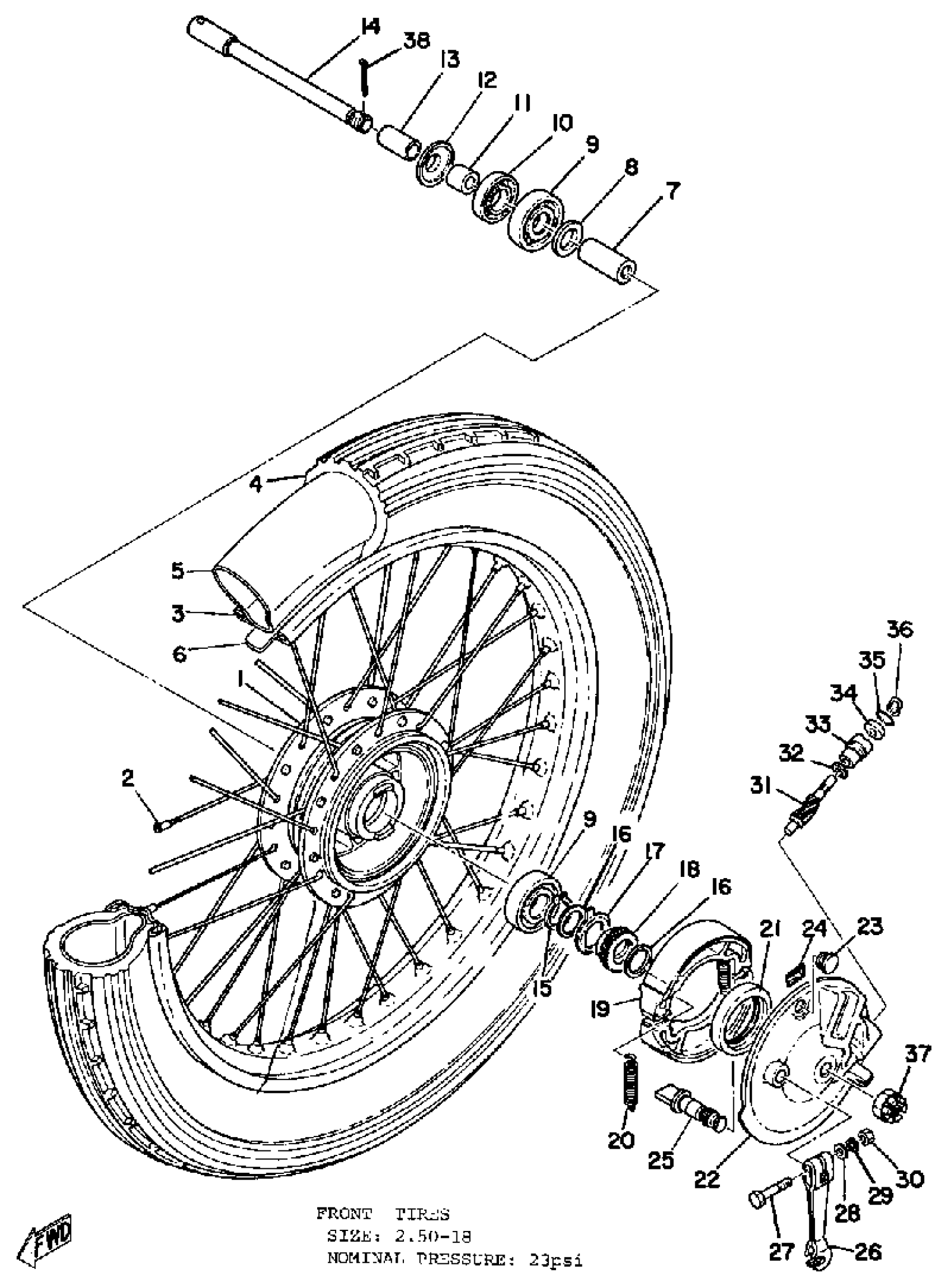

1975 Yamaha RS100 (RS100B) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(248-25111-00-38)

1
Out of stock

1

SPOKE SET, INNER 1

(248-25196-90-00)

1
Out of stock

1

SPOKE SET, OUTER 1

(248-25197-90-00)

1
Out of stock

2

SPOKE SET, FRONT

(248-25104-00-00)

1
Out of stock

3

RIM (1.40-18)

94414-18545-00

1

$107.12

In stock

4

250X18 YOKO Y506

(94125-18311-00)

1
Out of stock

5

TUBE (5H5)

94225-18194-00

1

$31.80

In stock

6

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

7

SPACER

90560-12138-00

—

$12.83

In stock

8

FLANGE, SPACER

109-25315-00-00

1

$6.20

In stock

9

BEARING

93306-30102-00

1
Out of stock

10

OIL SEAL (18X37X8-109)

93102-18008-00

1

$22.31

In stock

11

COLLAR 1832518300

90387-12095-00

1

$4.63

In stock

12

COVER, HUB DUST

2K5-25118-00-00

1
Out of stock

13

COLLAR

90387-12099-00

1
Out of stock

14

AXLE, WHEEL

(382-25181-01-00)

1
Out of stock

15

CIRCLIP(1AR)

99009-20400-00

—
Out of stock

16

WASHER, PLATE 1832514700

90201-20269-00

—
Out of stock

17

CLUTCH, METER

183-25149-00-00

—
Out of stock

18

GEAR, DRIVE

(248-25135-00-00)

1
Out of stock

19

BRAKE SHOE KIT

2JL-W253E-20-00

—

$25.53

In stock

20

SPRING, TENSION (566).

90506-16150-00

—

$6.98

In stock

21

SEAL,OIL

93105-47007-00

—
Out of stock

22

BRAKE SHOE PLT ASSEMBLY

(437-25120-10-00)

1
Out of stock

23

GROMMET (397)

90480-10068-00

—

$6.77

In stock

24

LABEL, INDICATOR

(437-25134-00-00)

1
Out of stock

25

CAM SHAFT

122-25351-02-00

—

$36.95

In stock

26

LEVER, CAM SHAFT

137-25155-00-00

—

$27.94

In stock

27

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

28

WASHER, PLATE (371)

90201-06431-00

—
Out of stock

29

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

30

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

31

GEAR, METER

214-25138-00-00

—

$18.32

In stock

32

WASHER, PLATE 1832514600

90201-07076-00

—

$5.75

In stock

33

BUSHING

109-25136-00-00

—

$8.78

In stock

34

OIL SEAL (7X14X4-136)

93104-07003-00

—

$7.29

In stock

35

O-RING (26H)

93210-14579-00

—

$5.69

In stock

36

RING, STOP

102-25137-00-00

—
Out of stock

37

NUT CASTLE(481)

90171-12005-00

—

$7.35

In stock

38

PIN, COTTER

91490-30030-00

—

$7.15

In stock
