1975 Yamaha RS100 (RS100B) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1975 Yamaha RS100 (RS100B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

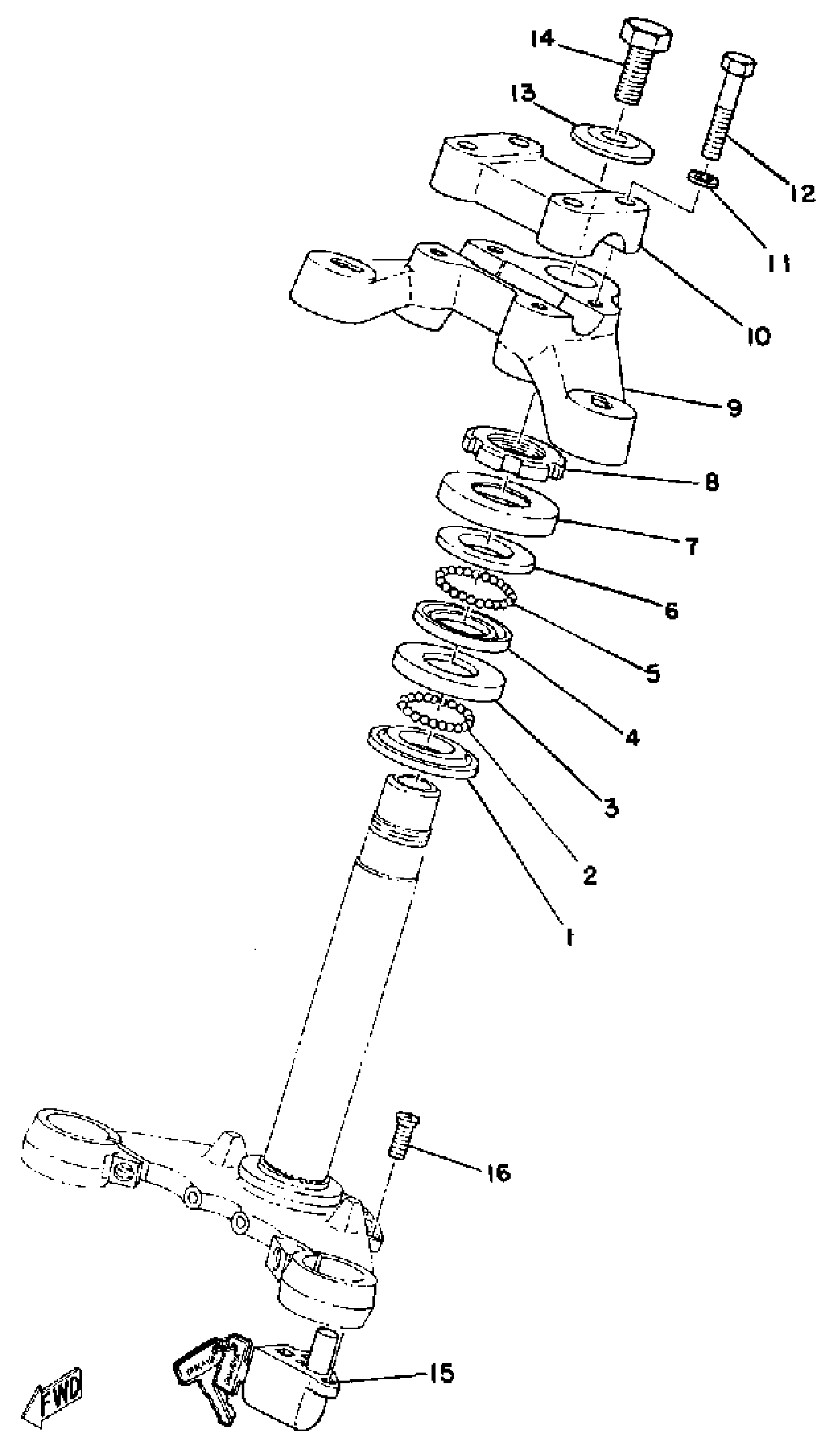

1975 Yamaha RS100 (RS100B) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RACE, BALL 1

B6E-23411-00-00

1

$7.02

In stock

2

BALL

93501-04011-00

1
Out of stock

3

RACE, BALL 2

B6E-23412-00-00

1

$9.71

In stock

4

RACE, BALL 2

BP2-23412-00-00

1

$5.71

In stock

5

BALL

93503-16003-00

1

$2.14

In stock

6

RACE, BALL 1

BP2-23411-00-00

1

$8.40

In stock

7

COVER, BALL RACE

122-23416-00-00

1

$6.40

In stock

8

NUT

90179-25004-00

1

$20.78

In stock

9

CROWN, HANDLE

(307-23435-00-98)

1
Out of stock

10

HANDLE, HOLDER

164-23441-01-98

—
Out of stock

11

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

12

BOLT

97013-08035-00

1

$4.80

In stock

13

WASHER

90209-10020-00

—

$3.98

In stock

14

BOLT 1222345100

90105-10006-00

1

$9.17

In stock

15

STEERING LOCK ASSEMBLY

(137-23480-00-00)

1
Out of stock

16

SCREW, FLAT

98707-06014-00

—
Out of stock
